Vancouver, Washington – March 30, 2026. US Digital announced today expanded resolution options for the L2 Low-Profile Motor Encoder, now offering up to 5000 CPR (20,000 PPR with quadrature).



The L2 motor encoder maintains its compact 0.398 in. profile and simple, direct-to-shaft mounting, making it well suited for space-constrained applications. It supports 12 shaft sizes ranging from 2 mm to 8 mm and 1/8 in. to 5/16 in. and is compatible with NEMA 17 through NEMA 34 and larger motors.

Now the L2 supports the following resolutions: 2000, 2048, 2500, 4000, 4096, and 5000 CPR. These additions extend the encoder’s capability for applications requiring higher positional resolution and finer motion control, while maintaining the same compact form factor and straightforward installation.



L2 Features
• Low profile — only 0.398 in. tall
• Resolutions now available up to 5000 CPR (20,000 PPR with quadrature)

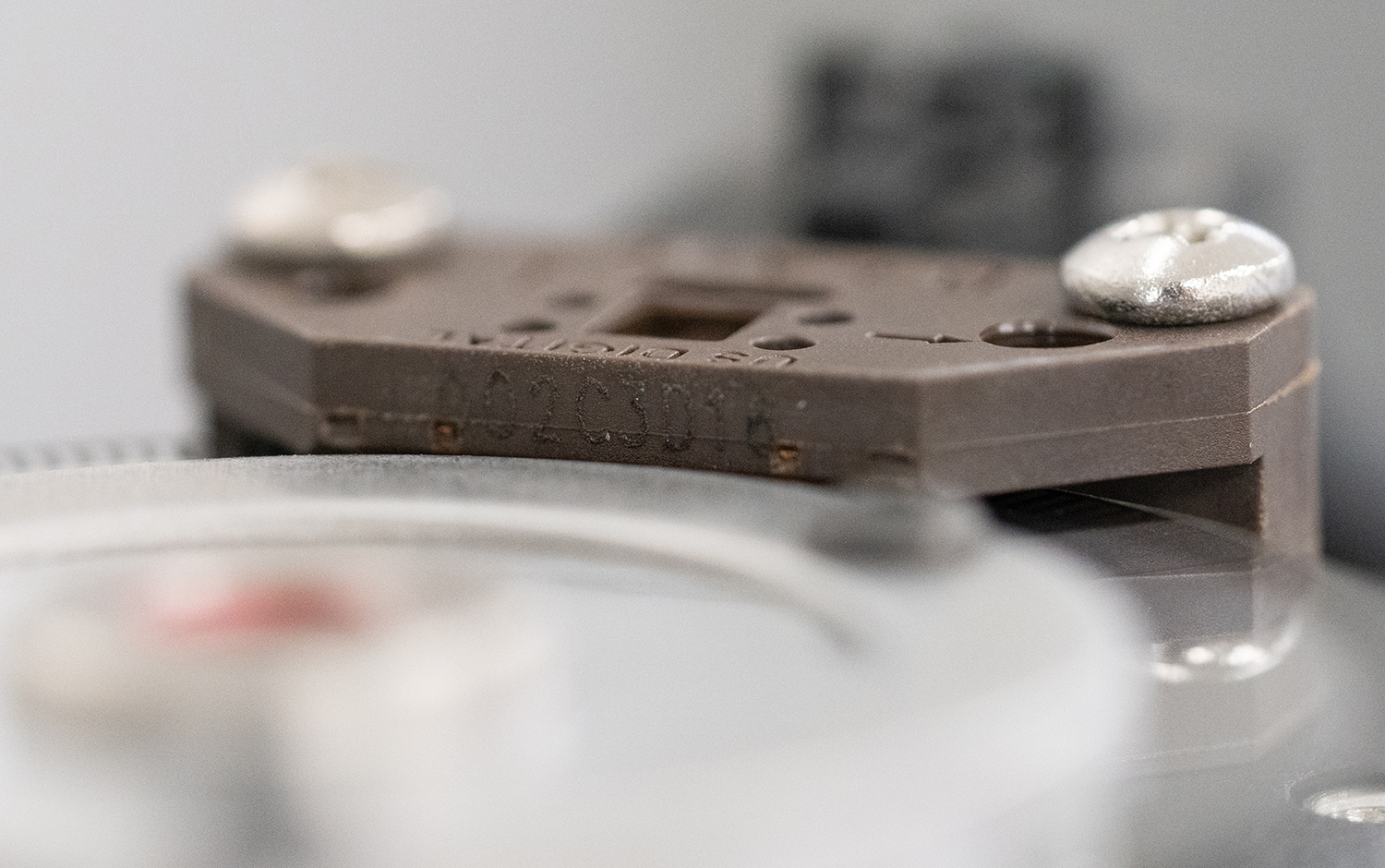

• Uses field-proven EM1 and EM2 optical encoder modules
• Simple, quick installation

Lower resolutions continue to use US Digital’s EM1 optical encoder module, while higher resolutions are enabled by the EM2 module, providing expanded performance options across a wider range of applications.

The L2 provides two-channel quadrature TTL square wave output with an optional index channel. A high-retention connector and cable system is available and sold separately.

Like all US Digital products, the L2 is designed and manufactured in Vancouver, Washington, USA. It is backed by prompt access to our technical and customer service teams. The L2 is immediately available for shipping worldwide. Learn more at usdigital.com.

More in News

• Blog
• Events
• Press Releases

Our encoders have not been tested in a radioactive environment. We believe the encoders will perform just fine in this environment. Regardless you will need to test them to determine if they will work in your application or not.

Encoder resolution identifies the smallest measurement that can be made. Encoder accuracy is the term used to compare the target position with the actual position. Encoder precision refers to the repeatability—comparing the change in successive measurements.

Some of the electronic components of encoders are susceptible to ESD which is why we recommend wearing a grounding strap when handling encoders and encoder components.

Single-ended is the most frequently used encoder output where commonly the output alternates between 0 and 5VDC. For an encoder with a differential output, for each channel that alternates between 0 and 5VDC, there is a complementary channel that at the same time, alternates between 0 and -5VDC. A differential signal allows for longer cable runs and can be used in electrically noisy environments.

This chart shows the tolerances for both bore size on encoder kits and shaft diameter on shafted encoders.

As a general rule of thumb, our single-ended output encoders work for cables up to 10 feet in length assuming they are not in an electrically noisy environment. For applications longer than 10 feet, a differential output encoder and shielded cable is recommended. If you have questions about a specific application, please reach out to Technical Support.

For encoders using 1" diameter disks, CPR values range from 32 to 5000. Those are the resolutions available on the following encoders: E2, E5, S1, S5, H1, H5, HB5M)

For encoders using 2" diameter disks, CPR values go from 64 to 10000. Those resolutions are available on these encoders: E3, E6, S2, S6, H3, H6, HB6M, HD25 For linear strips LPI values range from 120 to 500 using the EM1 module and 1000 to 2000 using the EM2 encoder module.

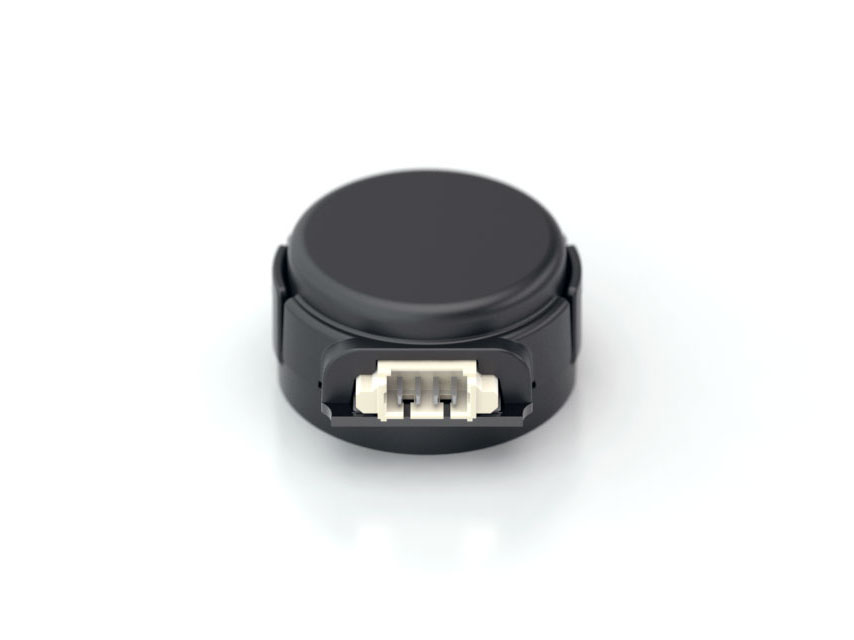

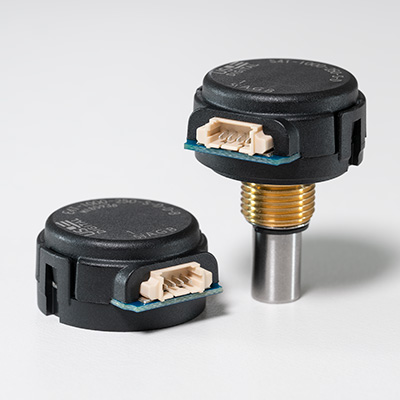

E4T & S4T CPR values range from 100 to 1,000.

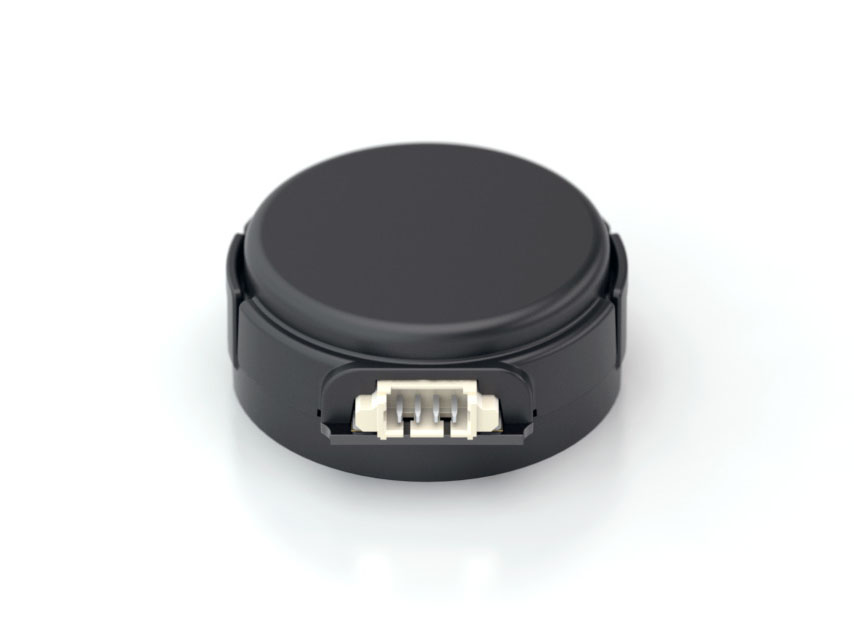

E8T CPR values go from 180 to 720

EC35 CPR values range from 500 to 60,000

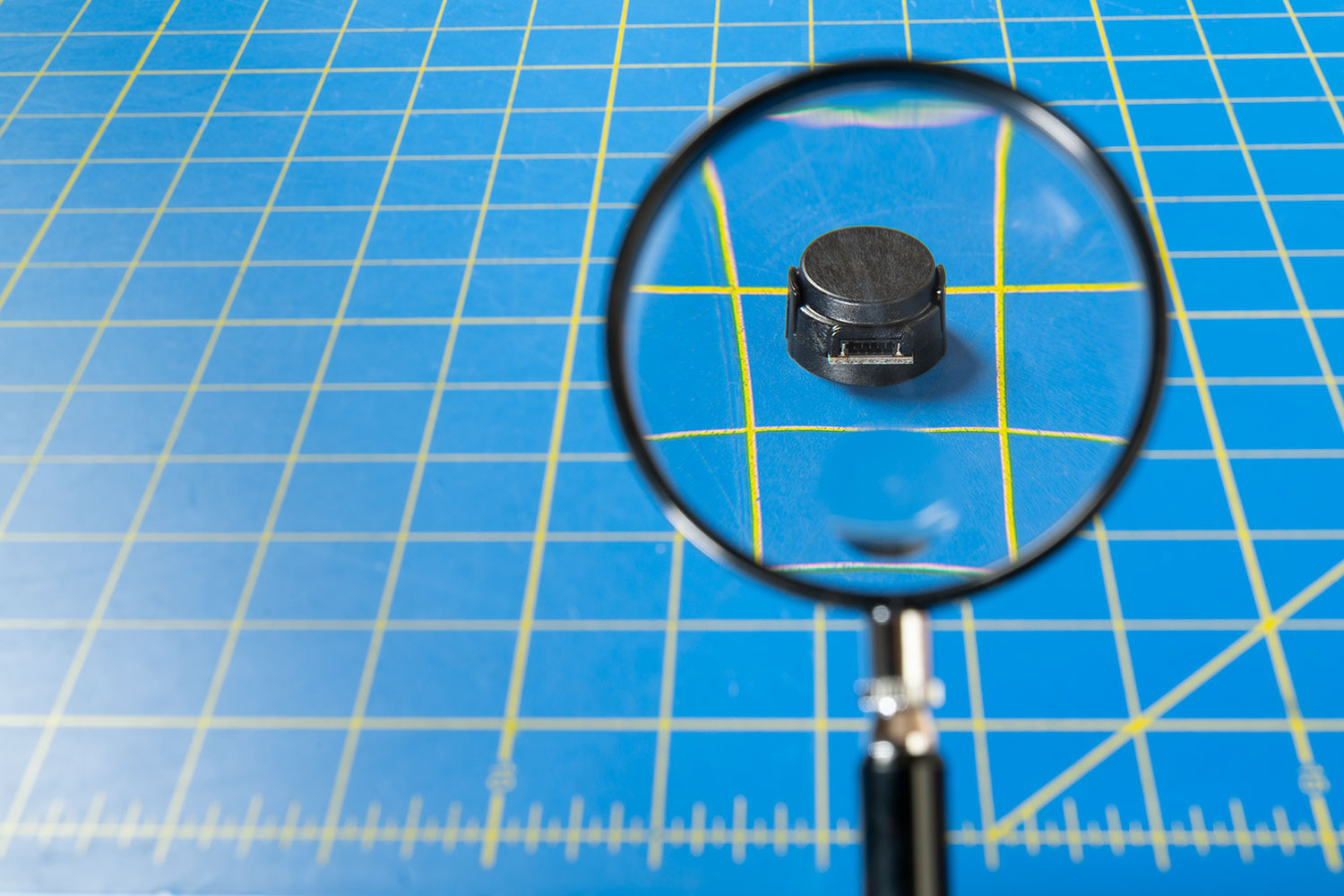

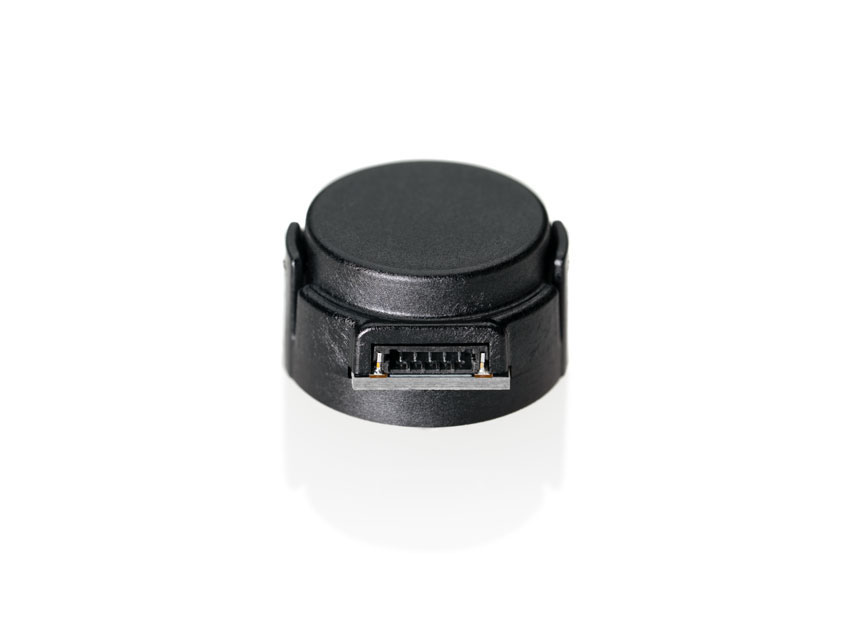

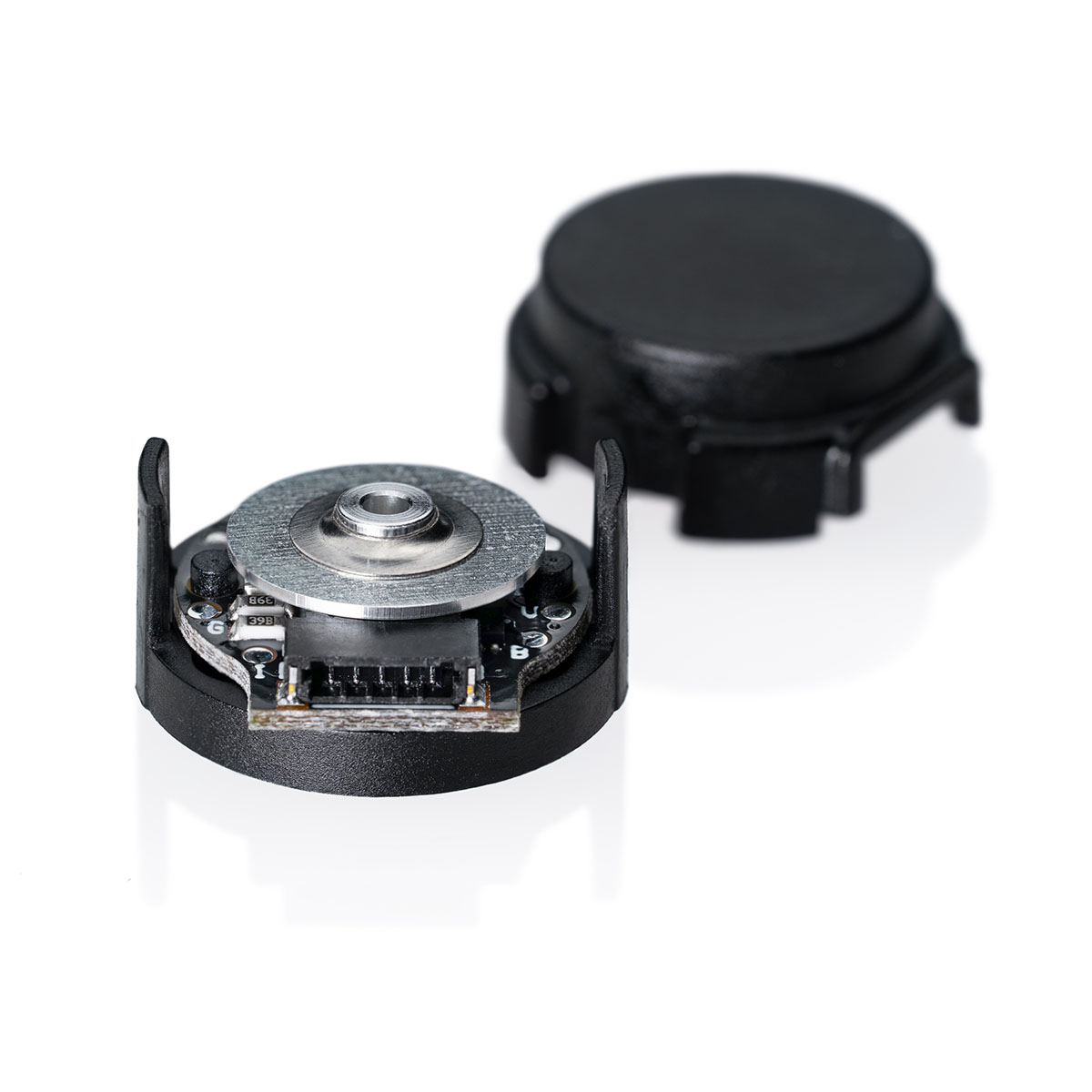

E16 CPR values range from 250 to 4,096

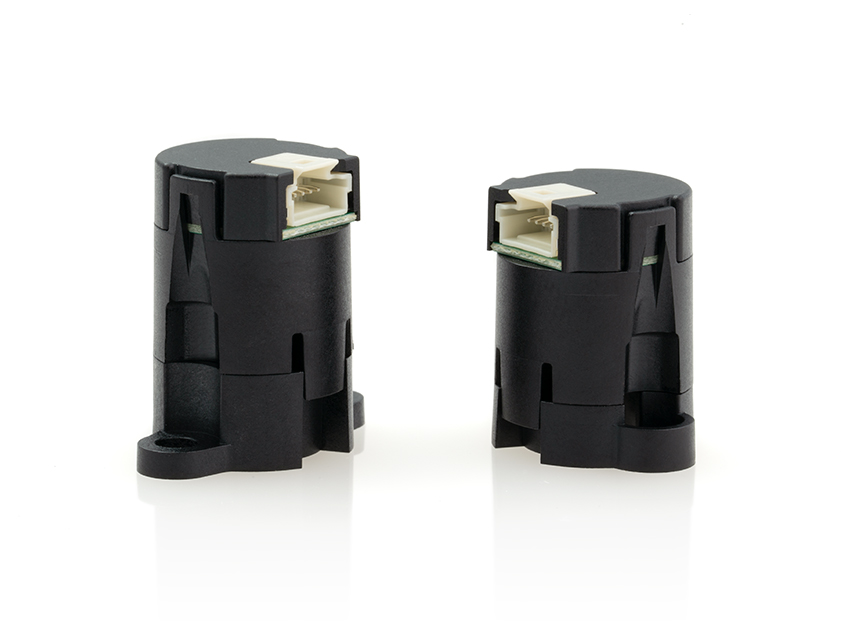

M3K CPR ranges from 1 to 8,192 for Incremental and 12-bit PWM for Absolute

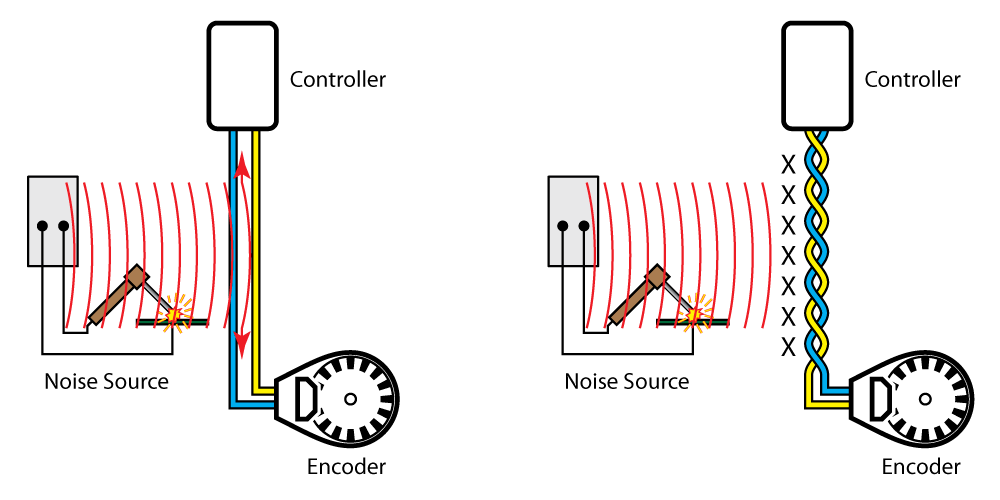

Using an encoder with a differential output and using a shielded cable will often mitigate signal distortion caused by an electrically noisy environment. Other steps that can be taken include ensuring proper grounding and using a Faraday shield.

We provide a vibration and shock rating for each encoder. The encoders have been tested to that standard. Any vibration or shock exceeding those standards can negatively affect the output of the encoder.

Incremental encoders provide an output as to the movement of a shaft but upon power up, shaft angle position is unknown. But if the encoder has an index, position can be determined by performing a homing cycle. Absolute encoders report exact angle position upon power up with no movement required.

The robust design of our encoders provides for consistent functioning even when a disk has small imperfections, scratches and specks on it. “Cleaning” a disk can cause more problems than it might fix. US Digital has a post and video addressing this topic in more detail.

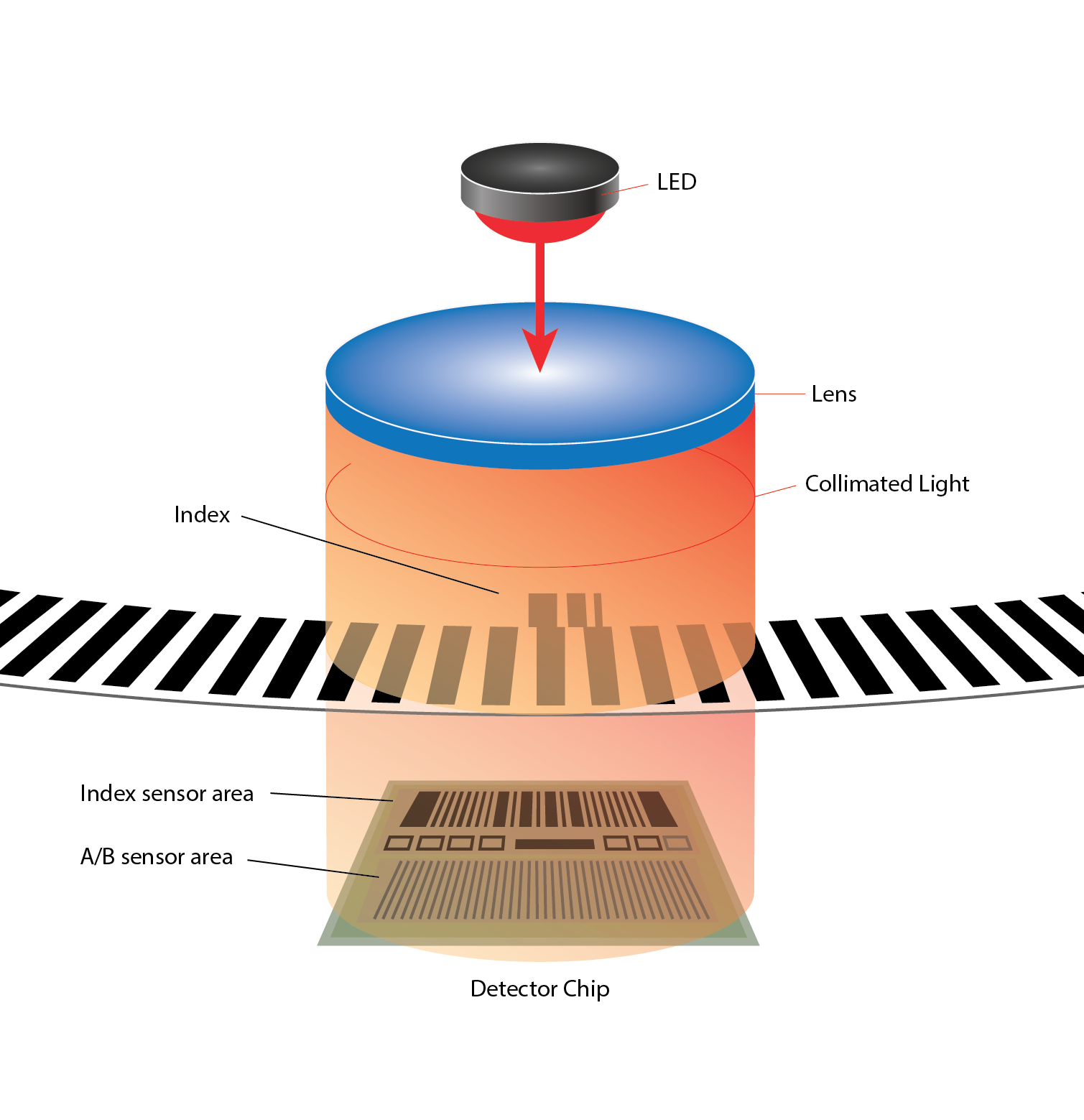

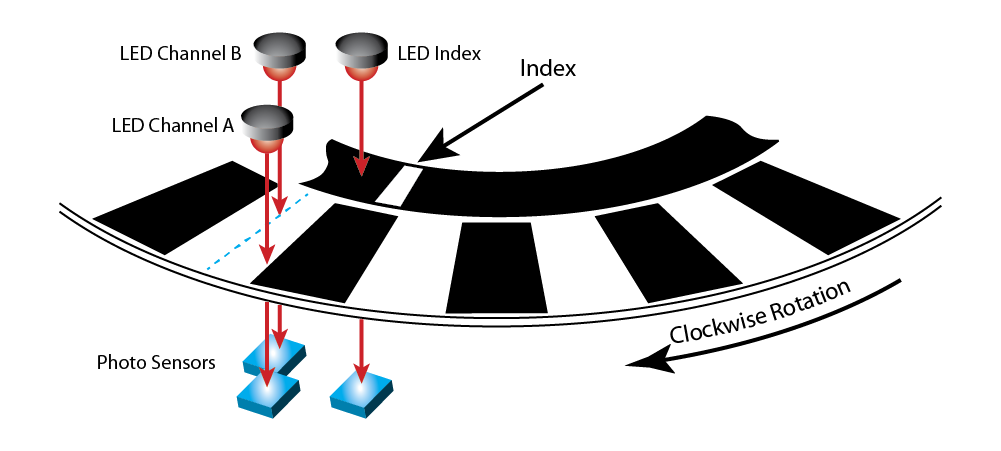

An index is a unique mark at one or more points on a disk or linear strip. The index enables an exact angle position to be known when the encoder detects that mark.

For the available bore sizes, review the datasheet for the encoder you select. Use this comparison chart to see the bore size range for all our encoder kits.

The right encoder depends on many factors. We’ve created a white paper that will help you through the process. Things you will need to consider are:

Are you measuring rotary or linear motion?

Will the encoder mount onto an existing shaft or do you need an encoder that has a shaft built into it.

Do you need an encoder that can always report the exact position when powered up or do you only need it to report how much it is moving and the direction it is moving.

If you are choosing an incremental encoder, do you need an index?

Which resolution do you need? If choosing an incremental encoder, do you need a differential output?

Which encoder output is compatible with your data acquisition system?

What voltage encoder would work best for your system?

Is the encoder rated to be able to function properly at the maximum speed you anticipate using?

Is an IP rating required?

Encoders use a medium with a consistent pattern which passes by a sensor, producing an output that can be used by a control device to determine speed, acceleration, and/or position of some part of a mechanical system. Some technologies often used are optical, magnetic, and capacitive.

An encoder is an electro-mechanical device that translates physical motion into an electrical signal. That data can be used by a control system to determine speed, acceleration, direction, and/or position.

Symmetry is the relationship of the on time to the off time (x,y) for any encoder channel. This specification is shown on the datasheet in electrical degrees for the EM1 and the EM2 encoder modules.

Stiction is a combination of the words stick and friction. Stiction exists when the static (starting) friction exceeds the dynamic (moving) friction. An example of stiction would be a shaft sticking when small changes are attempted, requiring a larger input force to initiate movement. The result is that the force required to start the shaft moving is more than what is needed to go to the desired shaft position, causing the movement to be jerky.

Single-Ended Output is the most basic kind of output on an encoder. Each channel only has one wire which provides a train of pulses alternating between 0 to 5 volts in relationship to ground. While it is the most common, it is inherently susceptible to electrical noise and the length of the cable is quite limited. Using a differential output will resolve both of those issues.

Shaft Runout is the deviation of a shaft from true circular rotation. This can be caused by a bent shaft or a loose bearing. US Digital’s datasheets for encoder kits have a rating of TIR—Total Indicated Runout and is specified in thousandths of an inch. If an encoder is installed onto a shaft exceeding those specifications, the output of the encoder can be unreliable.

Shaft Loading is the specification used on shafted encoders and refers to the force applied perpendicular to the shaft. An increase in the amount of force on a shaft will decrease the bearing life. Use the formula provided on the datasheet for shafted encoders.

Shaft Axial Play is the movement of the shaft in the axial direction. US Digital states the maximum shaft axial play in thousandths of an inch.

Revolution is one complete rotation of the encoder shaft, 360 mechanical degrees.

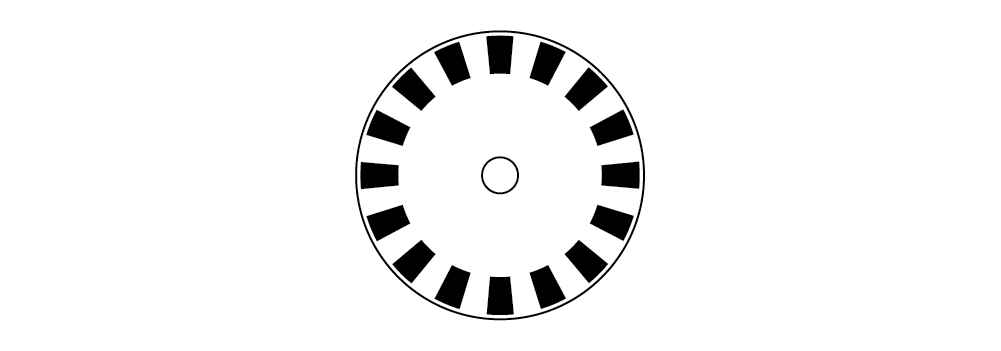

Resolution relates to the quantity of increments an encoder has in one rotation (for a rotary encoder). An encoder disk has a specified number of lines on it providing for a native resolution equal to the number of line/window pairs on the disk. Resolution can be increased via interpolation, multiplying the native resolution by any number of times. This output, either native or interpolated is the encoder resolution which US Digital refers to as the CPR—cycles per revolution. Using two channels (A & B) of a quadrature encoder enables the output of the encoder to be decoded up to four times the native or interpolated encoder output. US Digital refers to that special decoding as PPR standing for Pulses Per Revolution.

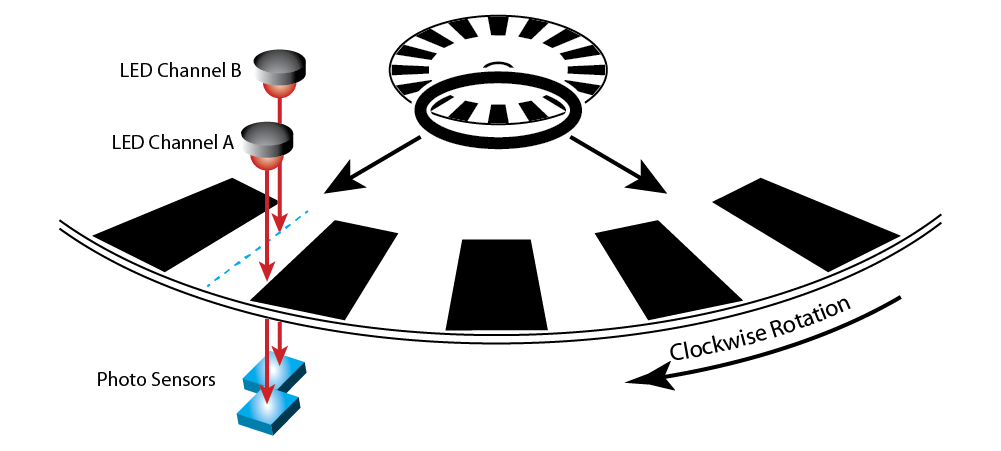

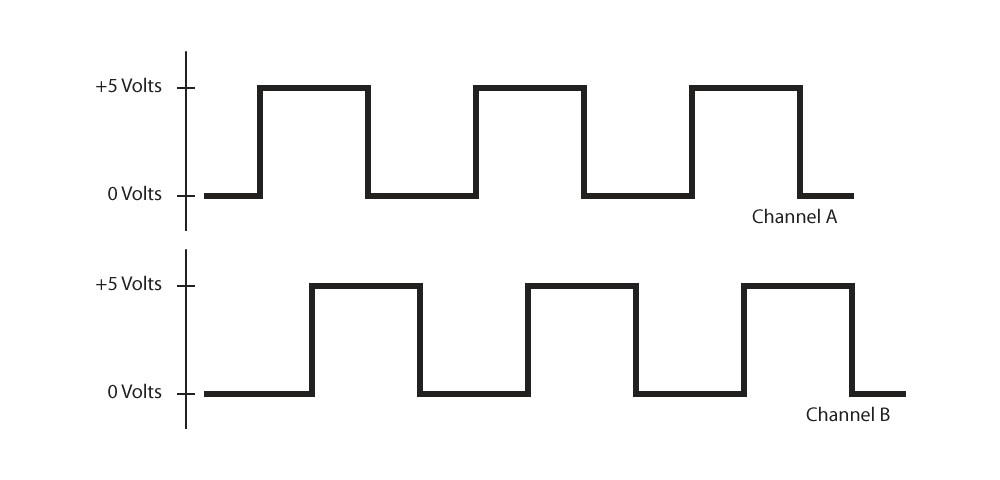

Quadrature is the most common digital incremental encoder output. It uses two channels (typically referred to as channels A and B) which are offset from each other by 90 electrical degrees. This output enables one to determine the direction of movement (by viewing which channel is leading the other) and allows for resolution multiplication—providing up to four times the CPR resolution.

A Pseudo-Absolute Encoder is an incremental encoder used as an absolute encoder on single turn applications which use a homing cycle. This requires that the media (disk or linear strip) include an index. On power-up, the system performs a homing cycle, moving until the index is detected. At that point the exact position is determined. To reduce the amount of movement required to find the index, the media can use more than one index with a unique number of line/window pairs between the indices. During the homing cycle, as soon as the second index is located, the exact position is determined.

PPR is the term US Digital uses to refer to the number of pulses after 4x quadrature multiplication. US Digital uses CPR to identify the before quadrature resolution of an encoder. (Note: Some vendors of encoders use the same acronyms of CPR and PPR with differing definitions.)

Phase jitter is the variation between the rising edges of channel A and channel B from one cycle to another.

See Cycle Error

Phase Relationship identifies which channel (A or B) leads (goes high first) the other channel based on the rotation of the shaft. The perspective from which the relationship is viewed is also included in this specification.

A Phased Array is a pattern of photodiodes used on US Digital encoders to detect several lines and windows simultaneously. The array averages these pairs to provide an output that is more consistent than those using fewer sensors. In US Digital’s design, there are also two photodiodes for every line and window. The phased array allows for a wider gap tolerance and excellent tolerance to some disk contamination.

A Phase the delay in time or degrees between the rising edge of channel A and the rising edge of channel B. Also defined as the delay between the center of the high state on channel A to the center of the high state on channel B.

Output Waveforms are the relationship of the output signals to each other, normally shown in a diagram as below. This shows the sequence of all output signals including channels A, B, and I as well as their inverse signals for differential output encoders.

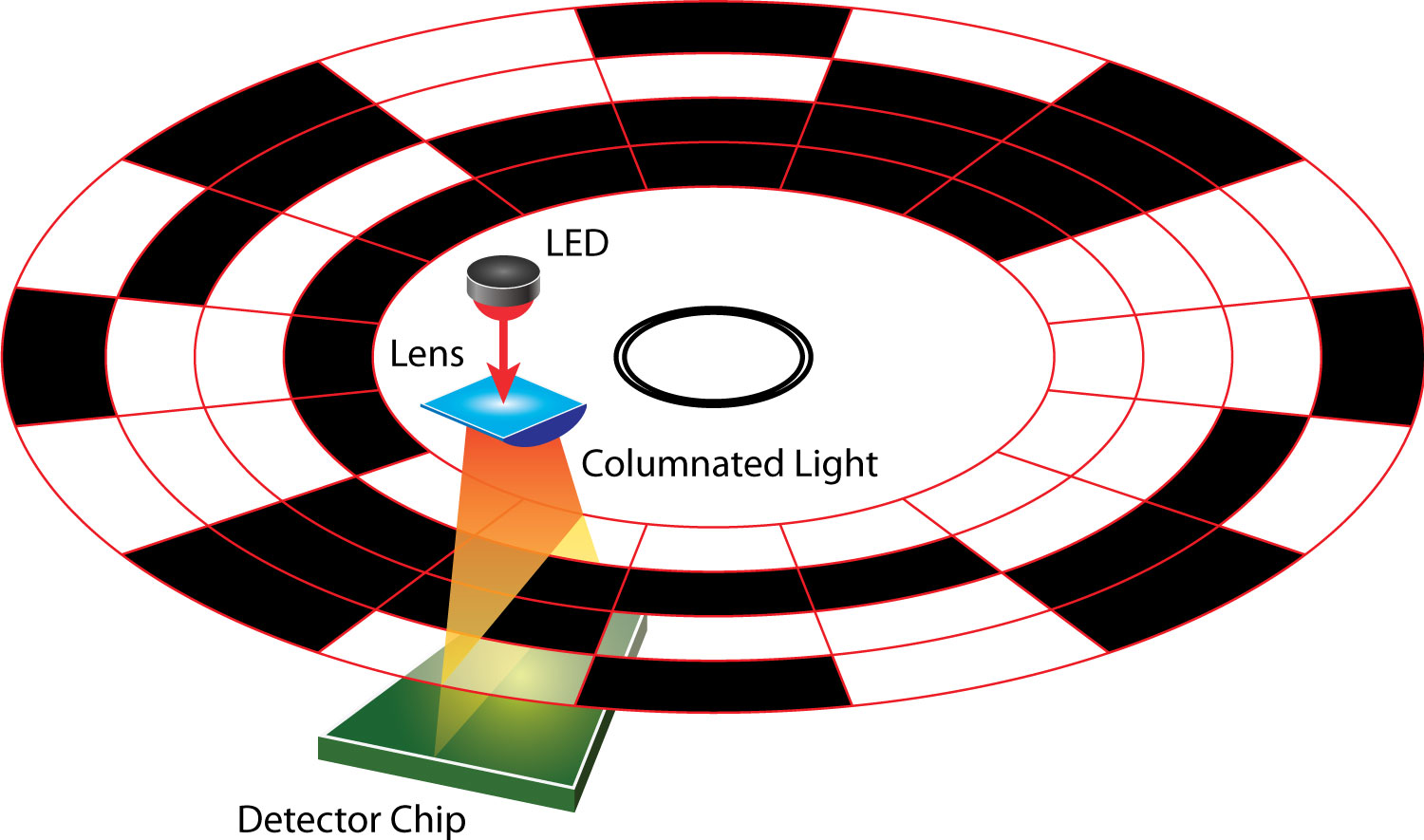

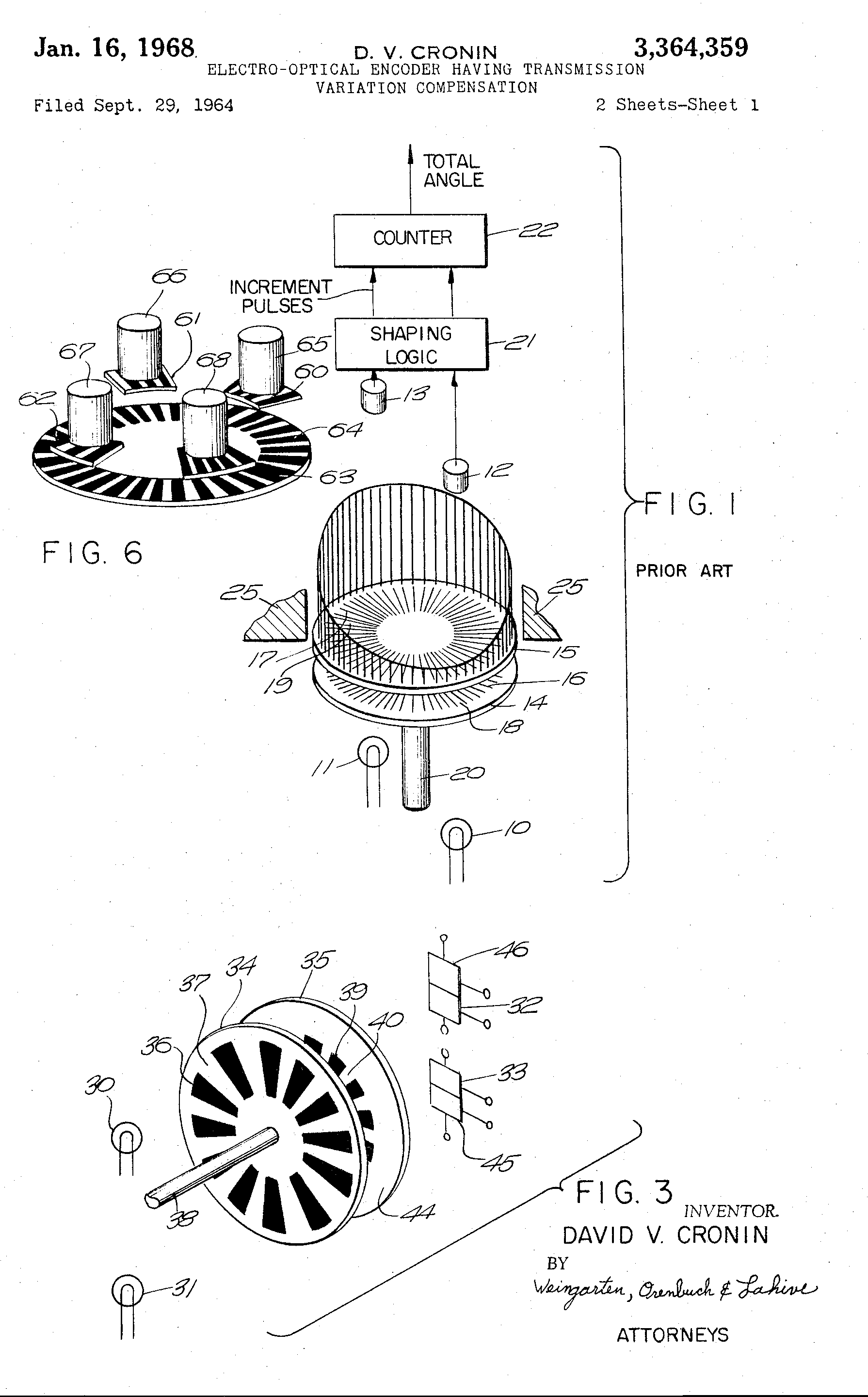

An Optical Encoder is an encoder using a light source, detector and interrupting medium to provide an output based on the speed and direction of the lines on that medium. Optical encoders can be transmissive—often with the light on one side of the medium and the detector on the other side or they can be reflective—the detector seeing the light reflected off of the patterned disk.

The interrupting medium is a disk for rotary encoders and a linear strip for linear encoders. The output is dependent on the quality of the pattern on the disk or strip. US Digital makes the code wheels for all of our encoders. The code wheel patterns are created using precision digital plotters and cut using a precision laser cutter. US Digital uses a highly collimated solid-state light source. Most of US Digital’s optical encoders are transmissive. The collimated light rays pass through the disk (or strip) pattern. The image of the pattern is detected using a phased array monolithic sensor and is converted to TTL digital quadrature outputs. Reflective type encoders (E4T / S4T) bounce the collimated light off a patterned reflective code wheel. This means all of the electronics are one side of the code wheel making for a more compact design. See Magnetic Encoder

Open Collector Output is an output that allows the user to set the voltage level of the output signal by installing a pull-up resistor between the output channel and a power supply of the desired voltage.

Noise is any unwanted electrical signal that can potentially interfere with a desired signal. The potential sources for electrical noise are numerous. Electrical noise can be mitigated by using a differential output or by shielding the desired signal.

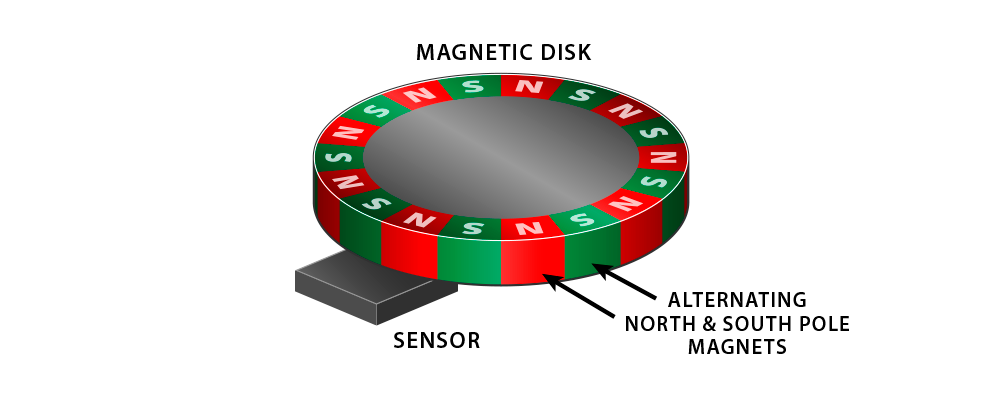

A Magnetic Encoder is an encoder that uses a magnetic code wheel to provide an output based on the speed and direction of the shaft. A magnetic sensor in the encoder detects the changes in the magnetic fields as the wheel rotates and can produce an incremental or absolute encoder output. US Digital’s magnetic encoders include the models MAE4, MA4, and M3K. Also see Optical Encoders

The Moment of Inertia is the point at which the rotational force being applied to a shaft equals the resistance to change in angular velocity.

A Linear Strip is the mylar material used by US Digital on which is placed an evenly spaced pattern of windows and lines. When that pattern passes between an LED and detector the encoder provides a corresponding output. The number of line/window pairs provide the native resolution.

A Line Driver is a circuit designed to increase the maximum recommended cable length for an encoder, and/or to add immunity from electrical noise or interference on the signal lines. US Digital has a differential output option available on some of its encoders.

Line Count is the number of equally spaced lines on a linear strip or disk. The space between each line is referred to as a window. Each line/window pair is the basis for creating each electrical cycle as the disk turns. The line count for a rotary disk is stated in CPR (cycles per revolution) while it is stated in LPI (lines per inch) on a linear strip.

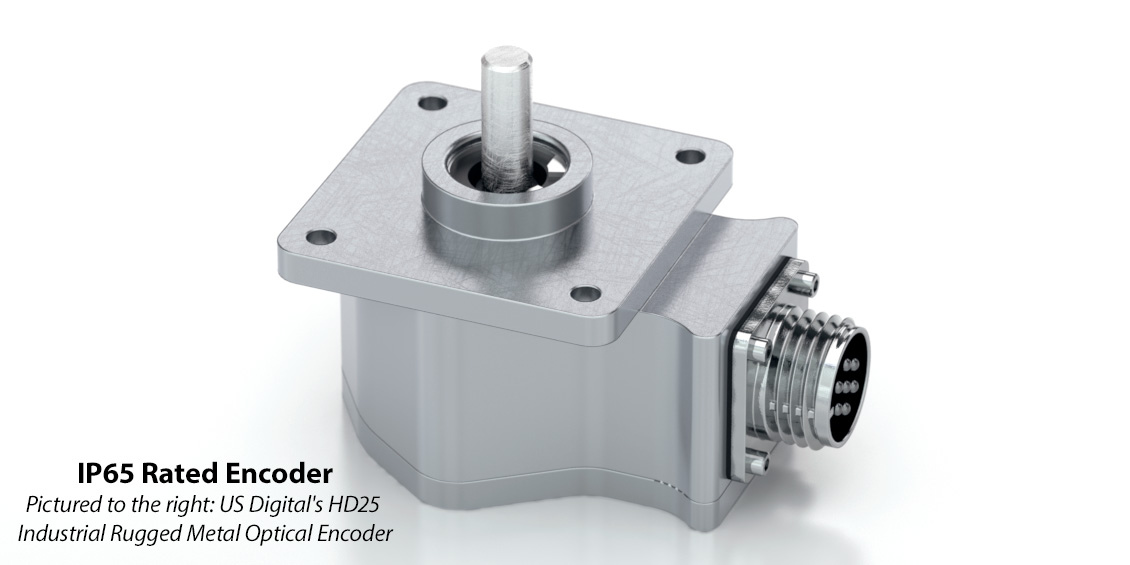

IP Ratings identify the ability of an enclosure to resist intrusion. Common examples are IP64 and IP69. The first digit indicates the protection against the ingress of solids (eg. dust) and the second digit indicates the protection against the intrusion of liquids (eg. Water). The higher the number, the better the protection.

An Inclinometer is a device that reports the angle of an object with respect to gravity. Also known as a "tilt sensor."

A HubDisk assembly consisting of an aluminum hub and an optical encoder disk.

A Homing Cycle is the movement of an incremental encoder to find its index. This is helpful upon power-up as without an index and homing cycle, the location within the encoder’s rotation cannot be determined. A homing cycle on a rotary encoder is completed by rotating the shaft until the index is detected. An encoder using this process is sometimes referred to as a Pseudo-Absolute Encoder.

Frequency is the number of cycles per second which can be read by an encoder. Each encoder is rated at specific frequencies based on how fast the encoder can read the information on a disk. Higher resolutions may reduce the read rate which limits the speed (RPM) at which the encoder is effective.

An Encoder Module is an electronic component made by US Digital which incorporates an LED and detector through which a medium with evenly spaced lines and windows passes to provide an output which can be used by a control device to determine speed, acceleration, direction, and position. US Digital’s encoder modules are used in many of its encoders.

Interpolation is the internal multiplication of a signal in an encoder providing a higher resolution than the native disk resolution. This is executed via the internal circuitry in an encoder or encoder module. The stated CPR of the encoder includes any interpolated multiplication.

The Index is a unique location on an encoder disk or linear strip used as a reference point. The index output is provided via a third channel on quadrature encoders and is often referred to as the “I” channel (index) or the “Z” channel (zero position). The index enables position to be determined after a homing cycle. US Digital index outputs are internally gated to coincide with the low states of channels A and B. This provides a precise index position that is ¼ of one quadrature cycle wide. The use of a single index is most common, but some applications use multiple indices with distinctive spacing requiring less movement to determine the exact position. US Digital specializes in creating custom disks to match applications.

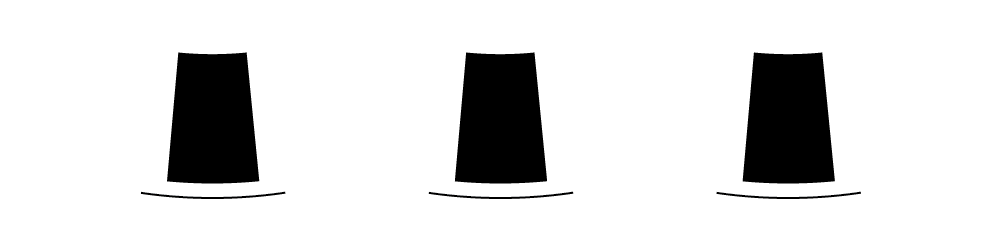

An Incremental Encoder is an encoder that provides information via a waveform output as to the movement of a shaft. It does not provide positional information but that can be calculated after performing a homing cycle if the encoder includes an index. Incremental encoders can use optical, magnetic, capacitive or other technologies. Quadrature output is most common and can be used to determine the shaft’s speed, acceleration, direction, and position. The resolution of an incremental rotary encoder is stated in cycles per revolution (CPR). An incremental encoder can also be used as a human interface device with a knob to adjust some parameter such as temperature, volume, or speed.

An Encoder is an electro-mechanical device that translates physical motion into an electrical signal. That data can be used by a control device to determine speed, acceleration, direction, and position. Encoders can use optical, magnetic, capacitive, or other technologies to detect motion. Encoders can be used for rotary or linear motion and can provide incremental or absolute outputs.

An Electrical Degree (°e) is 1/360 of an electrical cycle. Electrical degrees are used in encoder specifications to indicate the width of a pulse, the Rise and Fall times of a signal, to compare the on and off times for symmetry, and the phase lag time between quadrature channels.

Eccentricity Error is the measurement in the error of a rotary encoder caused by an eccentricity in the mounting of the encoder disk.

Duty Jitter is a variation from pulse width to adjacent pulse width.

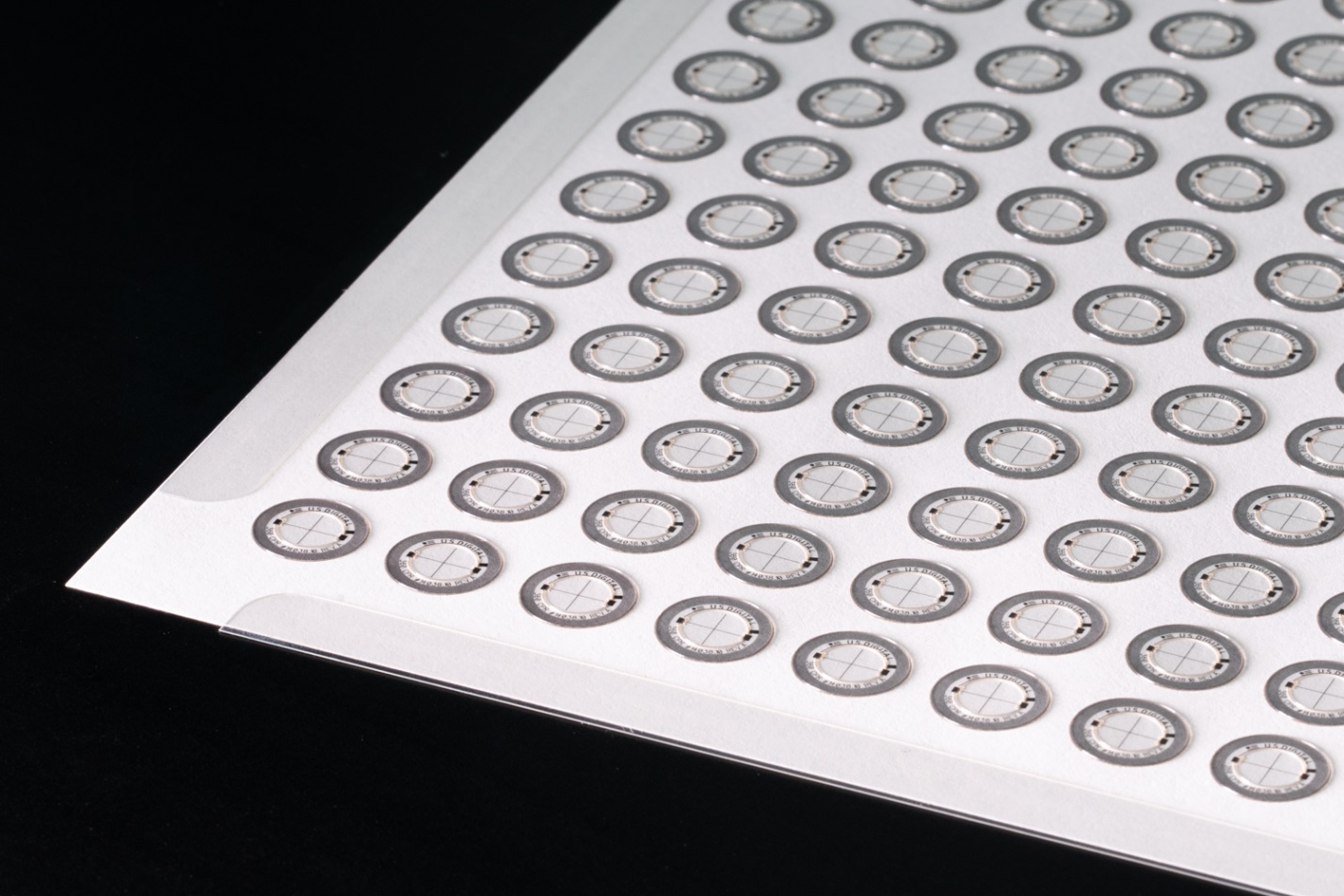

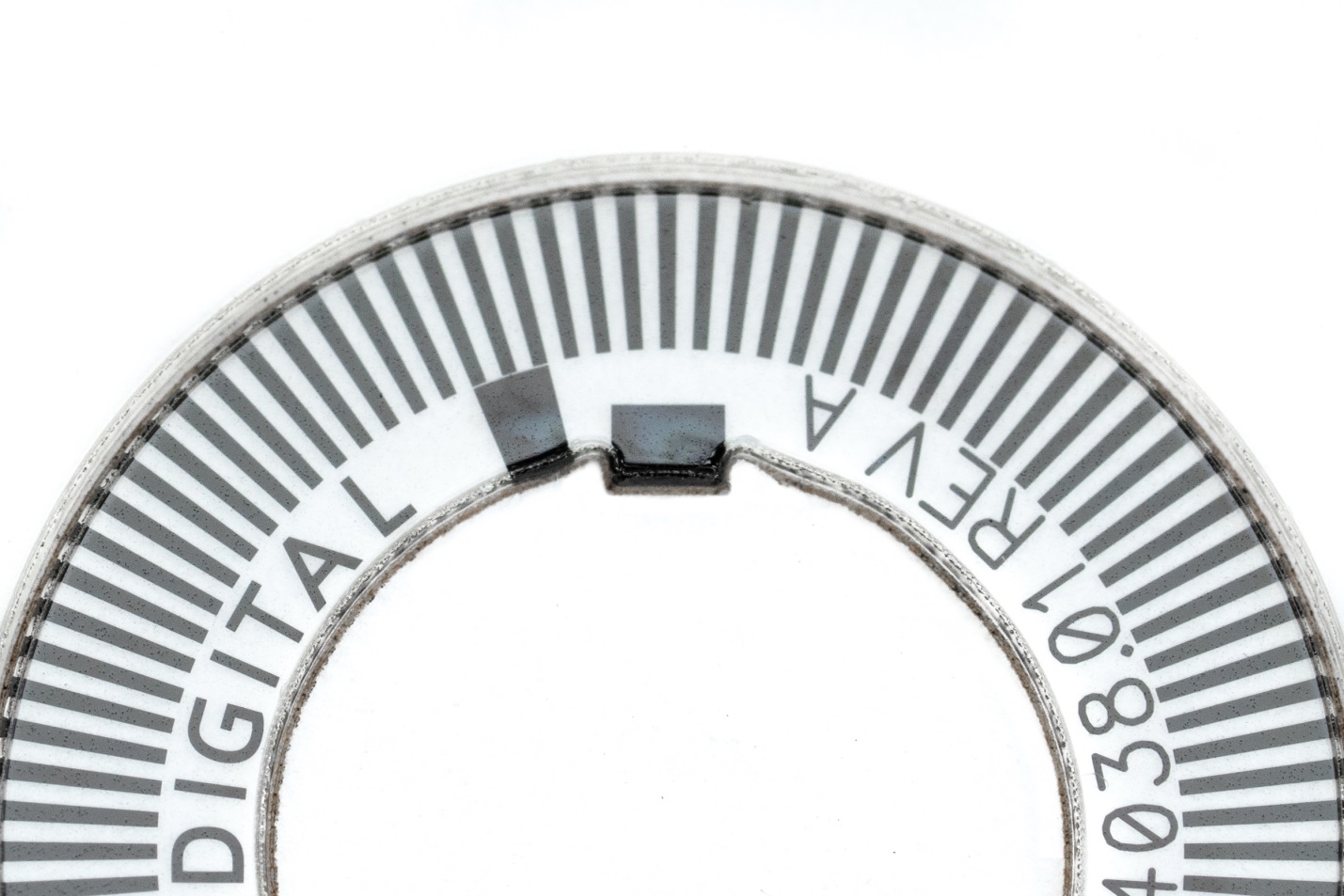

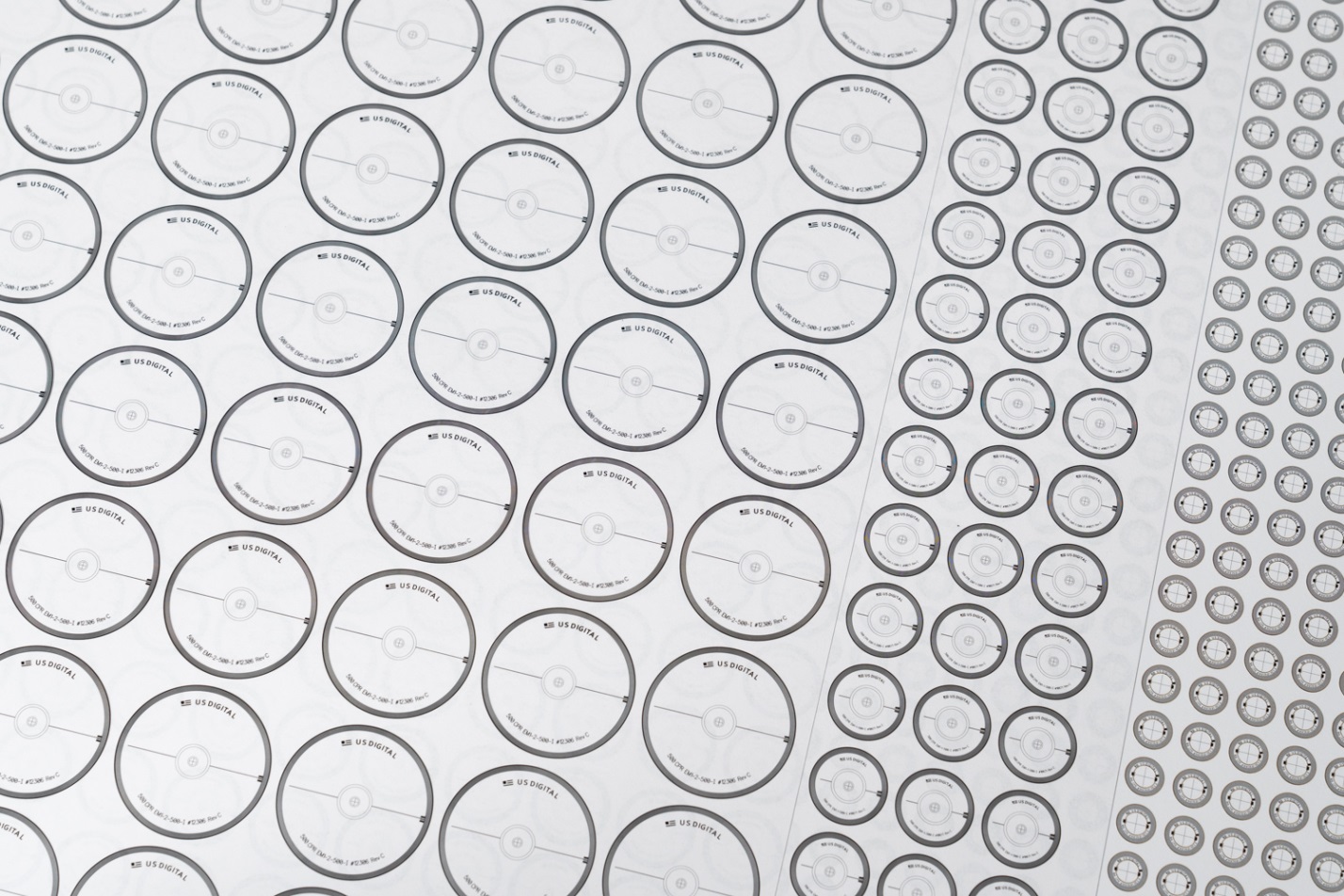

A disk is the round mylar material used by US Digital on which is placed an evenly spaced pattern of windows and lines. When that pattern passes between an LED and detector the encoder provides a corresponding output. The number of line/window pairs provide the native resolution. The disk is also available mounted on an aluminum hub and is called a HubDisk.

Differential Output is an output employing a complementary channel for the standard encoder output channels. Each complementary channel provides -5VDC simultaneously as the original channel provides +5VDC. These complementary outputs can be transmitted over much longer distances while maintaining the signal integrity. Differential outputs also help to reduce the effects of electrical noisy environments. Using a differential output does require a differential input or differential receiver to which the other end of the cable is connected. US Digital has several encoders which have a differential line driver option.

Cycle Error is the difference between the target (theoretical) position of the shaft and the actual position indicated by the encoder cycle count.

A Cycle refers to one complete four-state quadrature cycle. One quadrature cycle is generated by one line and one window called a line pair on the encoder disk.

Each cycle is divided into 360 electrical degrees (°e) and can be decoded into 1, 2, or 4 counts, referred to as x1, x2, or x4 resolution multiplication.

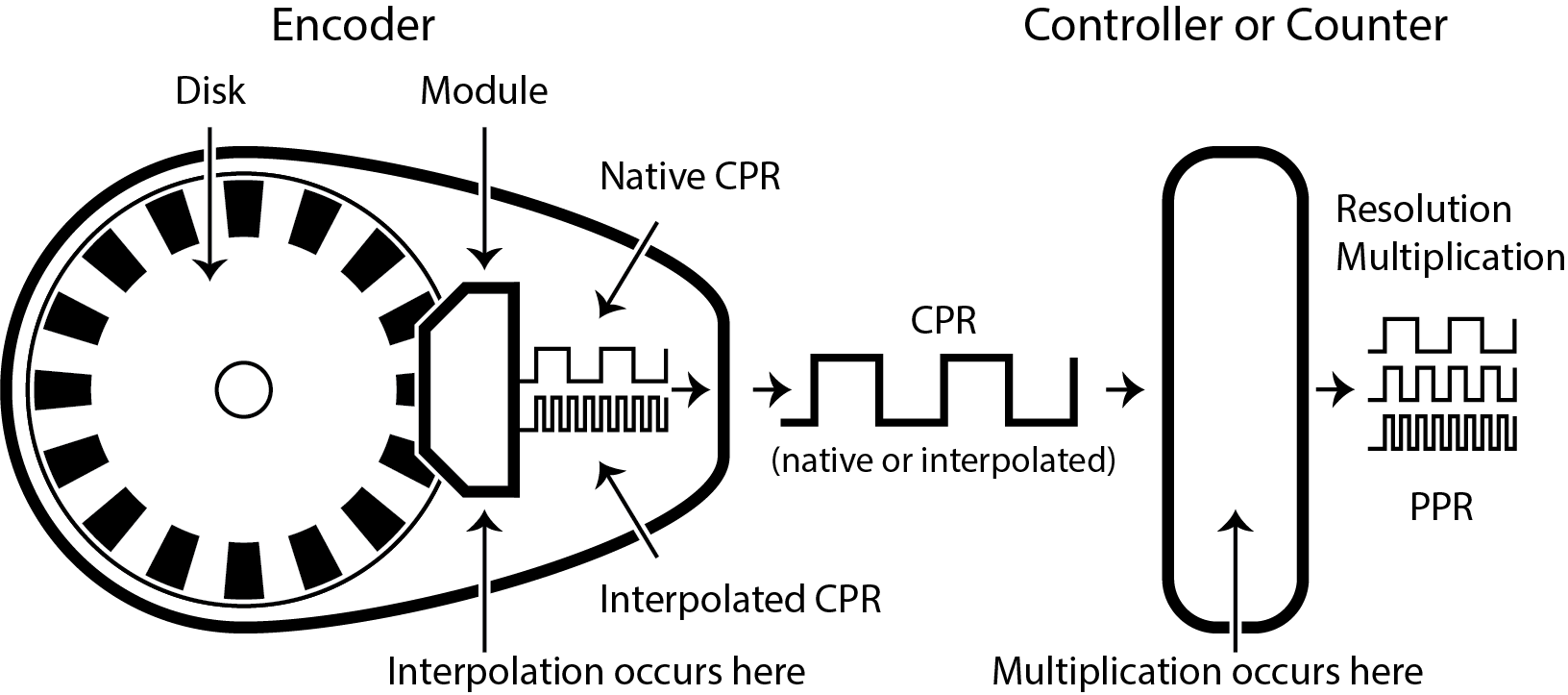

CPR is the number of full quadrature cycles per full shaft revolution (360 mechanical degrees). A 200 CPR encoder can provide 200, 400, or 800 positions per revolution depending on whether x1, x2, or x4 quadrature decoding is done. See Resolution.

Vancouver, WA – US Digital in May celebrated its 40th anniversary as a U.S. Manufacturer of optical encoders and other motion control components.

“Looking back on these 40 years, I couldn’t dream of anything that would be more of a blessing than this experience,” US Digital Founder and CEO David Madore said. “Not only for me, but for our team – many of them have been here for decades as well.”

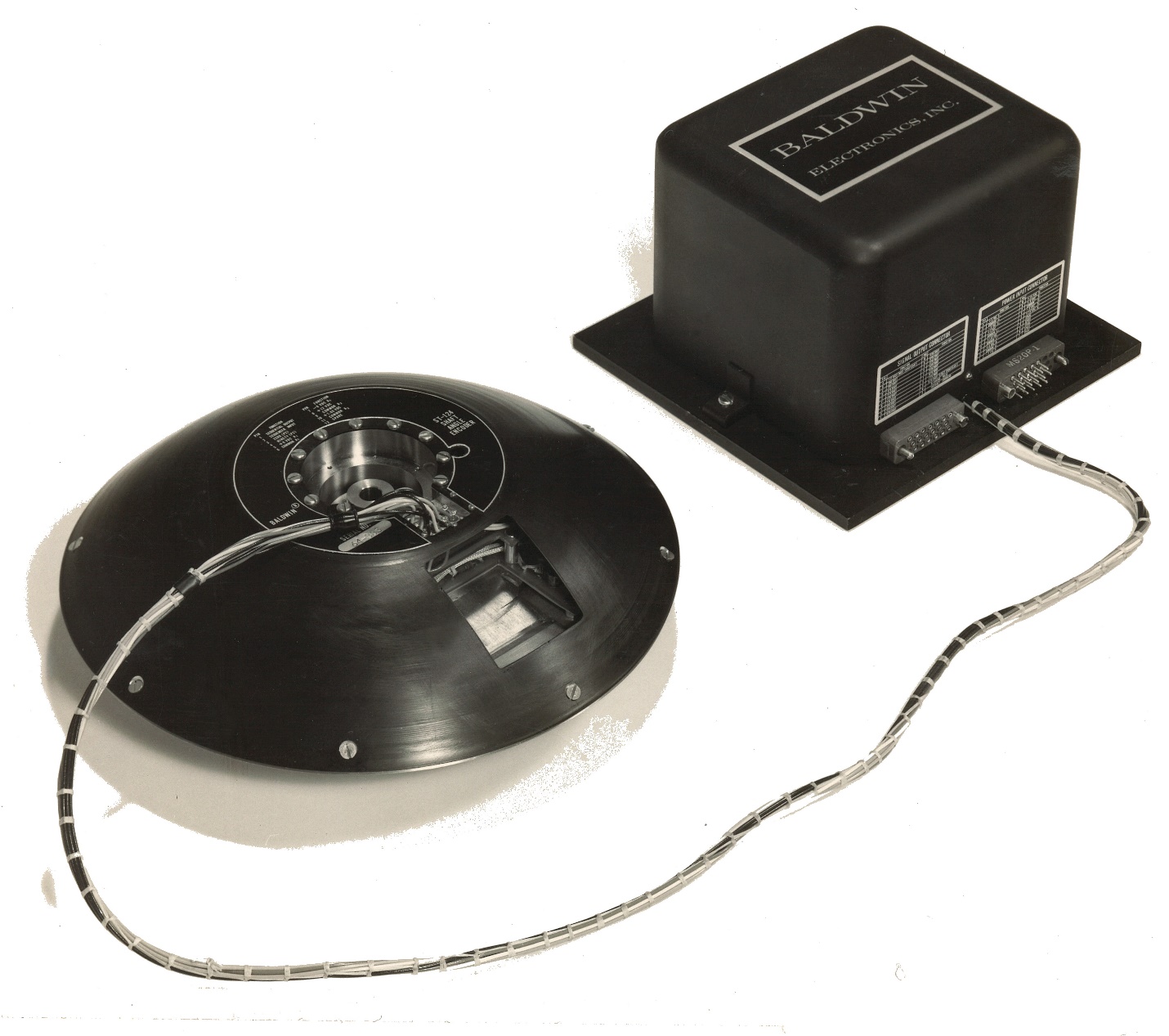

US Digital began in 1980 when David, who was working as a design engineer at a medical imaging company, couldn’t find an affordable, reliable optical encoder to use for a control knob on a product design. He thought he could make something better and set off to do so. He and his wife Donna started US Digital in their family garage in Southern California.

Not only did David want to design encoders and other products that met the needs of engineers like himself, he also wanted his business be focused on building meaningful relationships with its customers, employees and business partners, rather than being focused on the bottom line.

US Digital Chief Operating Officer Neal Donowitz says that foundation is core to the company’s success over the past 40 years.

“Our customers don’t value us just because we make encoders,” Neal said. “They value us because of how we treat and value them as a customer.”

Operations Manager Mike Pomerinke joined the company in 1995 in an entry level assembly position. He says those values are just as much alive today as they were when he first walked in the door.

“Sure we’re in business to make money – absolutely – but valuing people in that way is a very important thing here,” he said. “From when I started, that’s what it’s always been about – making sure we provide that top level customer service and value our relationships.”

Since Mike first joined US Digital, the company has moved twice to make more space for additional personnel and equipment as the company began to vertically integrate key manufacturing processes. He is now one of more than 120 employees who work at US Digital’s facility in Vancouver, Washington where the company makes optical encoders, magnetic encoders, inclinometers and various other motion control components and tools. Products are shipped globally and are used in multiple industries including additive manufacturing, robotics, textiles, solar energy and motor manufacturing.

In 2009, US Digital donated an unused 17,000-square-foot section of its building and administrative and IT services to dozens of local non-profit organizations and ministries to use as office space. The US Digital Outreach Center is now more than 10 years old and US Digital is looking to expand the space to further invest in the local community. After the next buildout, US Digital will be providing around 30,000 square feet of space for non-profits.

As for US Digital, the future looks a lot like the past. Technology, products and processes will change – but the customer focus cannot, founder David Madore said.

“We will always continue to invest in the future,” he said. “Our foresight comes from listening to requests and questions from our customers and potential customers. We don’t dread problems. Solving them is how you advance.”

More in News

• Blog
• Events
• Press Releases

Company Links

• About Us
• Careers
• Contact Details
• Distributors
• Resource Integrity
• Legal
• Quality and Compliance
• Videos

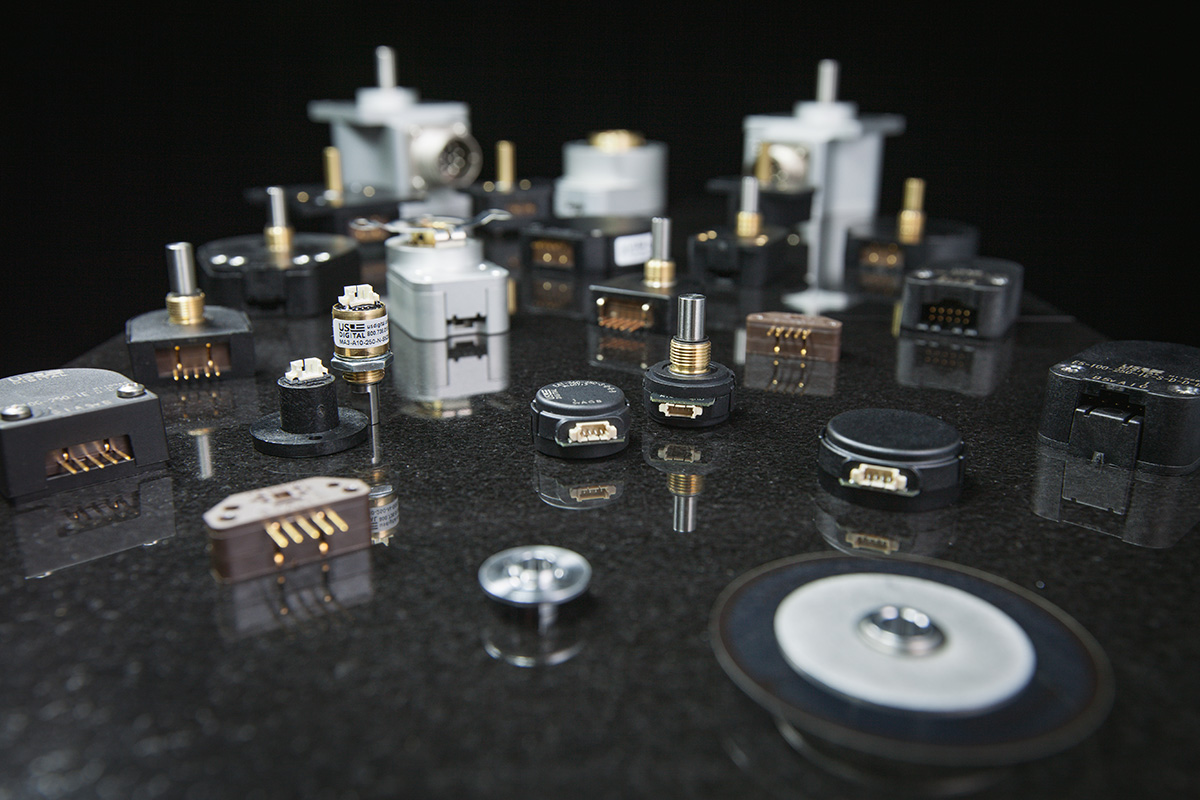

Our most popular motor encoders offer motor design engineers precise position measurement with reliability in the parts-per-million range.

• All encoder models offer multiple mounting options.
• US Digital offers multiple adapters to convert single-ended encoder signals to differential.
• Push-on hubs provide fast assembly and symmetrical weight distribution for high RPM applications.
• These encoder models are part of our standard inventory and are available for same-day shipping*.

*Orders placed before 11:00 AM (PST) ship the same day.

The best tool for testing an encoder and being able to see the signal output is an oscilloscope. US Digital does have a QSB which when connected to a computer does have the ability to provide some information like encoder CPR, count, position and current speed.

Most of our encoders require 5VDC power. However, some of our encoders operate on 12VDC power, and several of our encoders can operate on voltages from 7.5 to 30VDC.

The most common source of erratic signals from an encoder is misalignment. We provide alignment and spacer tools with our encoder kits to ensure consistent signal output. Electrical interference can also cause erratic signals.

Once you configure an encoder on our website, you can find compatible products, cables and connectors listed near the bottom of the product page.

Our encoders have been tested and verified to work in non-condensing humidity environments but are not designed to be used in a condensing humidity environment.

Our encoders use an LED with a phased array detector. This essentially means that the sensor is not just focused on only one point of the disk but is looking simultaneously at multiple line and window pairs. That way, a flaw at one spot on the disk is easily averaged out. This robust design allows for a consistent signal output even when dust or other imperfections exist, such as those you would expect from everyday use and the handling of encoders. Furthermore, our LEDs operate in the infrared spectrum, which means they're less susceptible to physical obstructions than visible light.

Our encoders have not been tested in a vacuum. We believe our encoders should work fine in a low vacuum environment, but you will need to test them to determine if they will work in your application or not.

The assembly instructions for each encoder are located near the top on each encoder kit product page on the website, but they, along with accompanying videos, can be found on the Encoder Assembly Instructions Page.

Each encoder has specifications on its datasheet giving the alignment tolerances. Not staying within those tolerances may cause anything from no output to an inconsistent one. We provide assembly tools with each encoder kit to ensure proper alignment.

As each application is unique, we are unable to give definitive instructions on how to mount the linear strip. A common method we have seen is clamping the back portion of the linear strip between two solid surfaces, with just the required quadrature track exposed.

It is technically possible to change the resolution of our kit encoders, however, doing so requires swapping out core components for new ones that support the desired resolution. Changing the disk alone will not change the resolution. For encoders that use our EM1 and EM2 modules, you’d need to buy a new HubDisk and module. For miniature encoders, you’d need to buy a new HubDisk and board. You may find it simpler and less expensive to buy a new encoder.

This is a calculation you need to perform based on the smallest increment you need to monitor for the application. For example, if your application is measured in degrees as on a rotary encoder, you will divide 360 degrees by the number or fractions of a degree you have determined you need to be able to measure (360/X). The result will be your minimum resolution. Having determined that, you will choose a resolution equal to or greater than that number. Keep in mind that depending on the capability of your data acquisition system, it may be able to take the CPR and measure up to four times that amount (PPR).

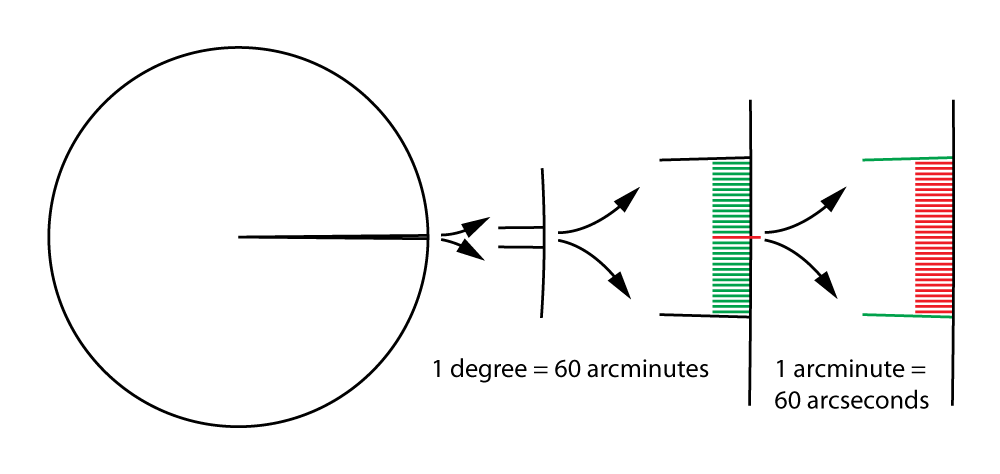

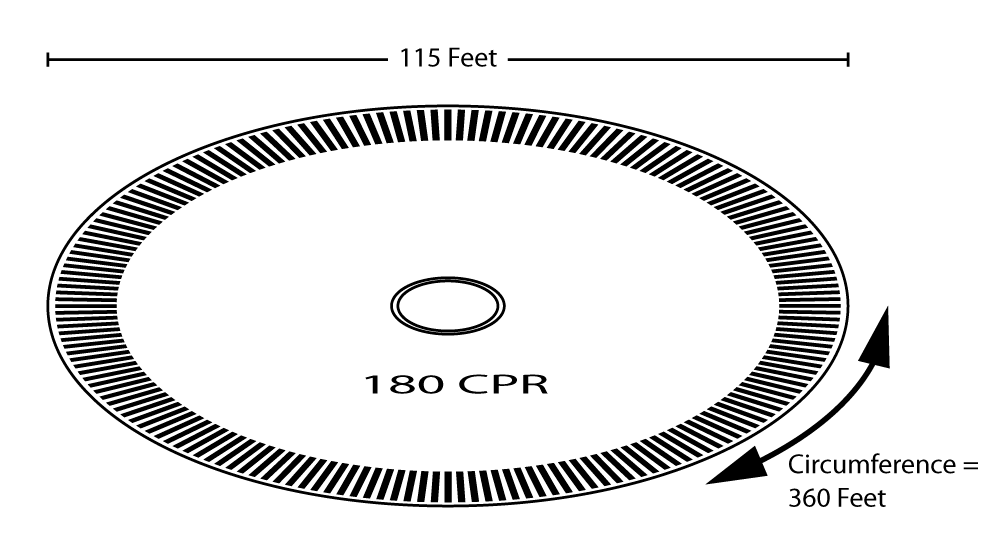

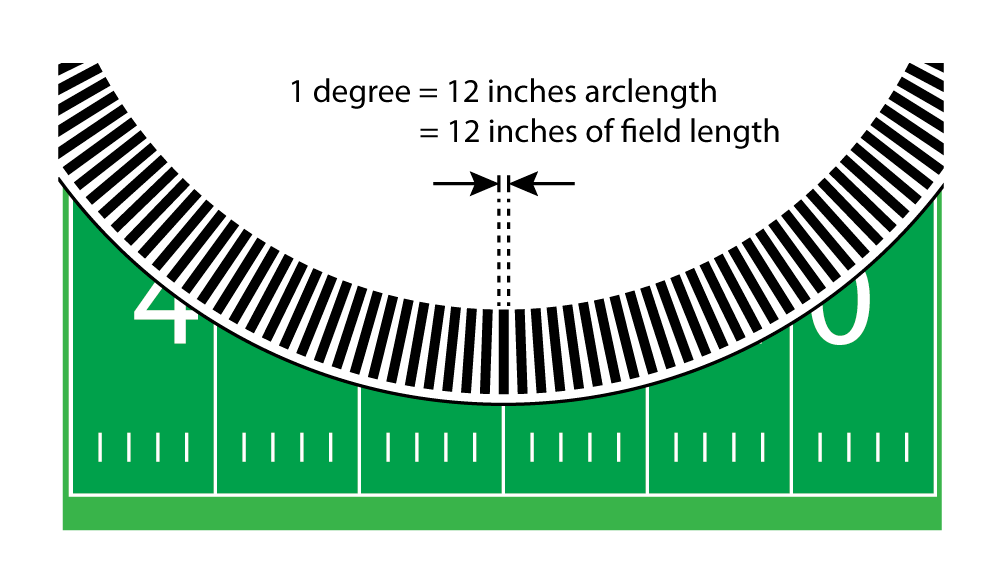

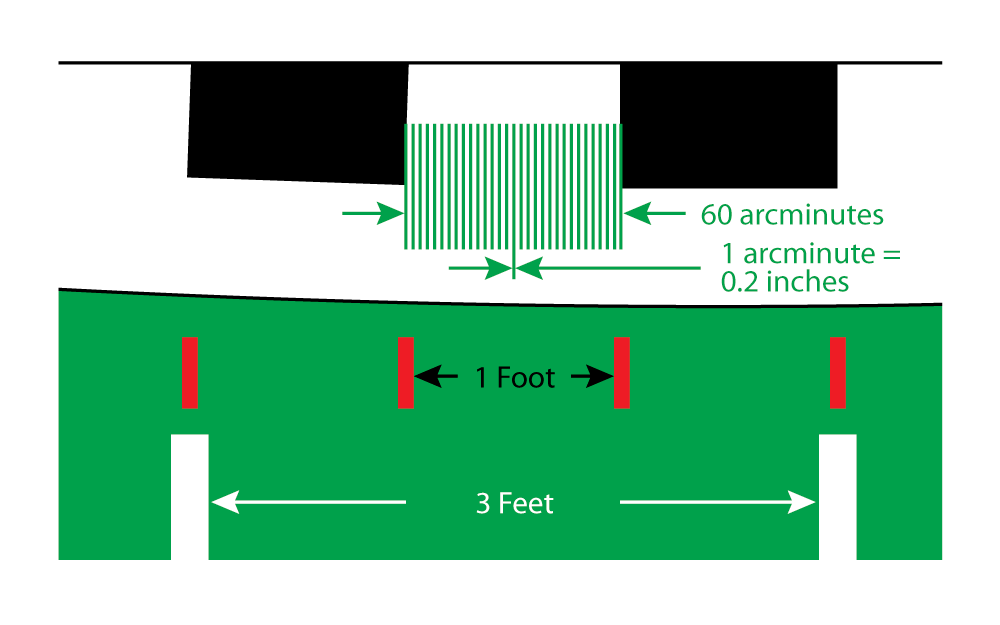

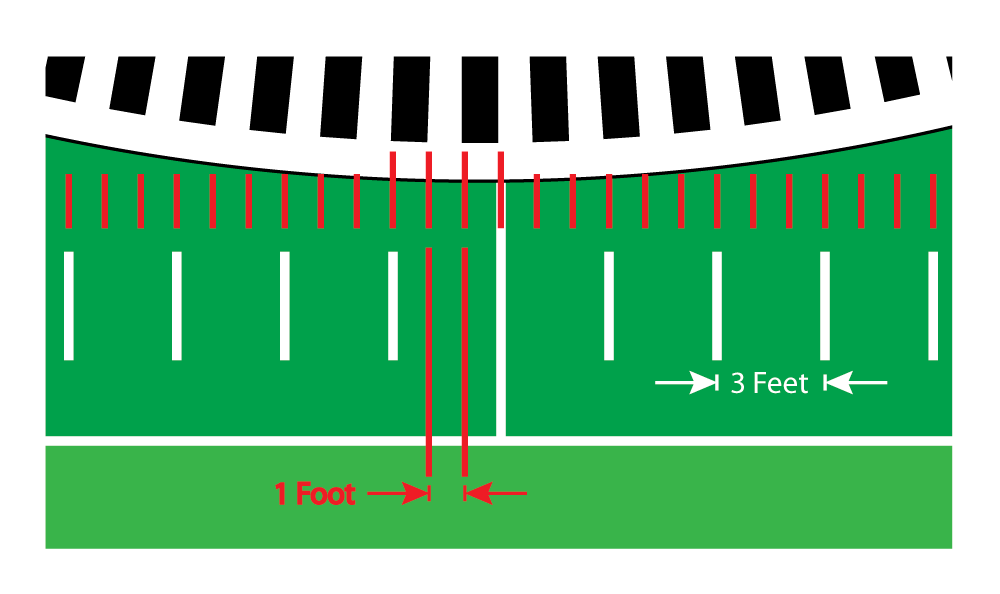

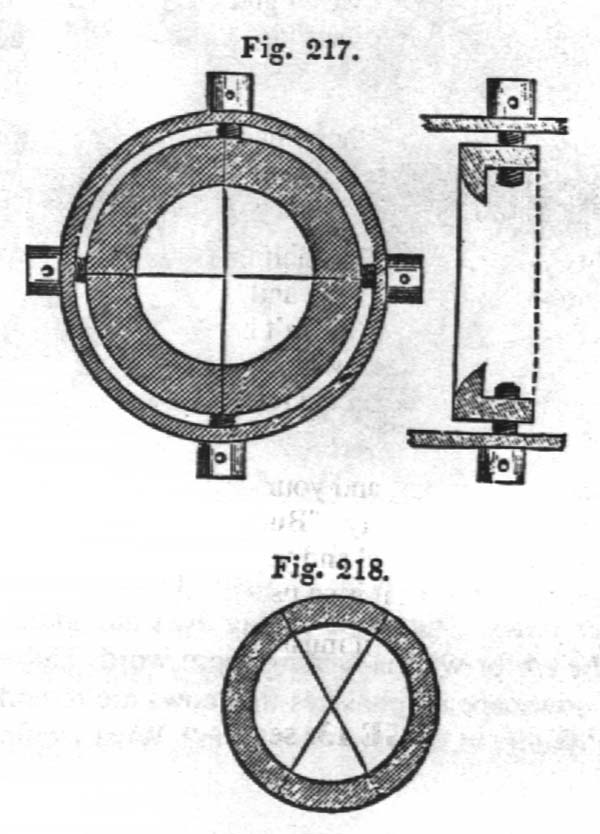

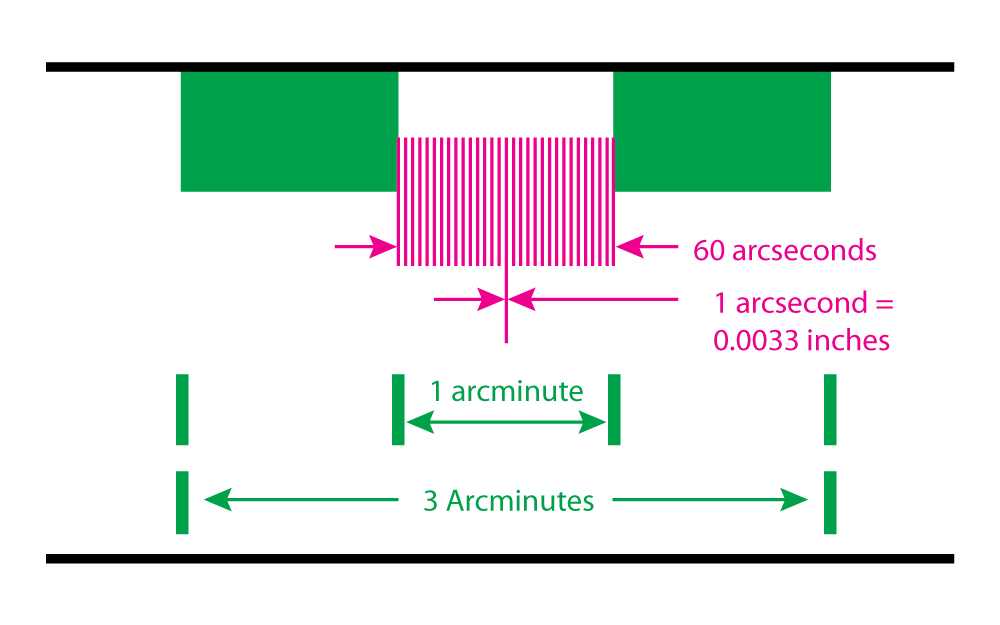

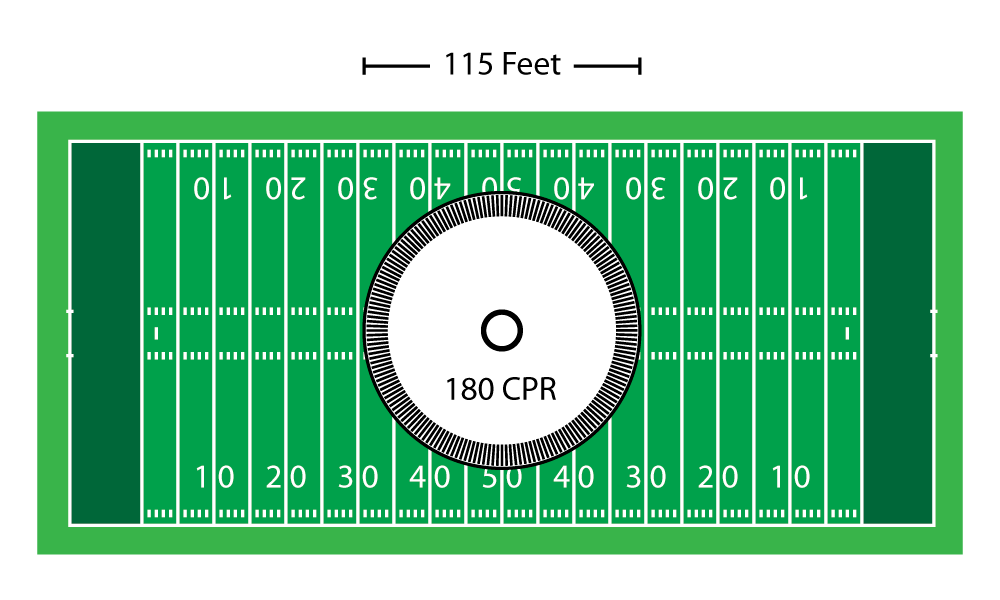

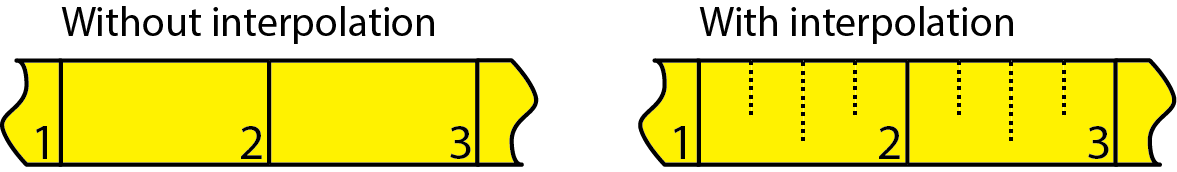

Just like the different divisions a measuring tape (inches, ½ inch, ¼ inch etc.), the resolution on an encoder defines how coarse or fine of a measurement can be determined. The higher the resolution, typically called out in CPR, the more unique positions can be resolved in the rotation of an encoder.

The surge in popularity of drones in recent years has been remarkable. Although sometimes we hear about them when they cause trouble—like flying too close to commercial aircraft—more frequently we hear about drones because of the interesting new ways they're being put to use.

Drones are used in agriculture, to monitor crop growth and field conditions. Home inspectors for insurance companies use drones to check on the condition of a roof—without having to risk injury by climbing ladders. Workers on oil pipelines have used drones to improve pipeline inspection.

And of course, many companies are developing autonomous drones that will deliver packages—or pizza—directly to a customer's doorstep. The company Flirtey, for example, has made successful pizza delivery demonstration flights; their next step is to develop a service to deliver automated external defibrillators (AEDs) to 911 callers, via autonomous drones.

No matter what type of drone or how it's put to use, there are often many moving parts. Drone developers who need to sense the position, angle or speed of mechanisms in motion find that encoders are ideal for the task.

Typical applications for encoders used on drones include the following:

• Control Surfaces : flaps, ailerons, vertical elevators, speed brakes
• Airflow Indicators : angle of attack (A0A); angle of sideslip (AOS)
• Landing Gear : to verify extension or retraction
• Payload : gimbals for video cameras and optical devices; packages

Let's look at a few examples of how people who develop drones use encoders in their research.

The Angle of Attack (AOA) probe is a sensor that measures the angle between an aircraft control surface and the oncoming airflow. The video shows a probe moving up and down in the wind. Notes below the video reveal that the sensor that converts probe motion to an electrical signal is an absolute magnetic encoder.

Groups of drones can be flown in coordinated formations, sometimes known as "swarms". This is useful if you need to monitor a large area, or measure many points at once. In our next example, researchers are developing sensors to measure angle of attack (AOA), and angle of sideslip (AOS). The information is shared between drones to coordinate their flight formation.

The AOA and AOS sensors each use a magnetic absolute encoder, as the authors mention in their research paper (in the paper, see the paragraphs immediately above and below the photo).

The payload for a drone is often a video camera, used to transmit images from the air to the ground. The camera can be mounted in a gimbal, which allows the camera to move in the roll, tilt and pan directions. You can see a gimbal mounted below the nose of Georgia Tech's research helicopter, the GTMax, in the article below.

 GTMax article

Here's a close-up of the gimbal. In their research paper, the authors explain that the gimbal uses three incremental encoders, each with an Index. The quadrature output from the encoders transmits information about the roll angle, the tilt angle, and rotation about the pan axis, as well as direction of motion.

The Index channel transmits one pulse per encoder revolution; the system uses that pulse to enable positioning at power-up.

The requirements for a sensor used on a drone can be demanding, but with light weight and low power consumption, the right encoder can meet the test.

Sources:

• Test flight video: youtube.com/EnacUAVLab
• https://newatlas.com/uav-learns-to-think-for-itself-now-technology-will-transition-to-military/3745/

More in News

• Blog
• Events
• Press Releases

Many manufacturers are structured to run a low mix of product variations. That model supports high-volume efficiencies, but it also makes it difficult to introduce anything outside the standard configuration—especially lower-volume or custom builds. Customization can disrupt production flow, require separate documentation and validation, demand additional capital equipment, and consume valuable engineering and machining resources.

US Digital is structured differently. From the beginning, we have built our manufacturing model to efficiently support both high-volume production and custom projects—many of which are lower volume. Customization is not an exception to our system; it is an intentional capability aligned with our vertically integrated philosophy.





Our culture has always been open to custom requests because it aligns directly with our values. We have a relentless drive to solve customer problems and to make it easy for people to do business with us.

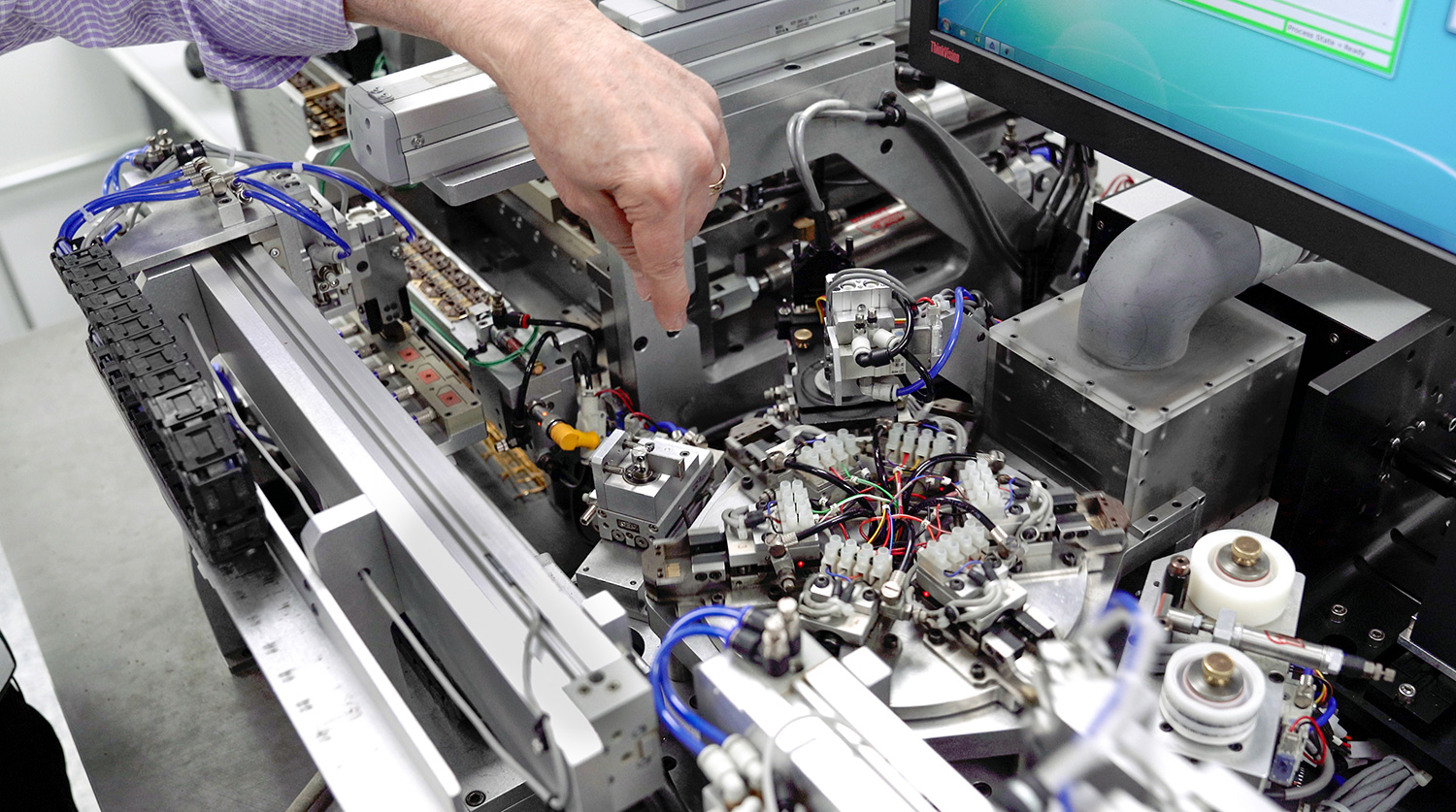

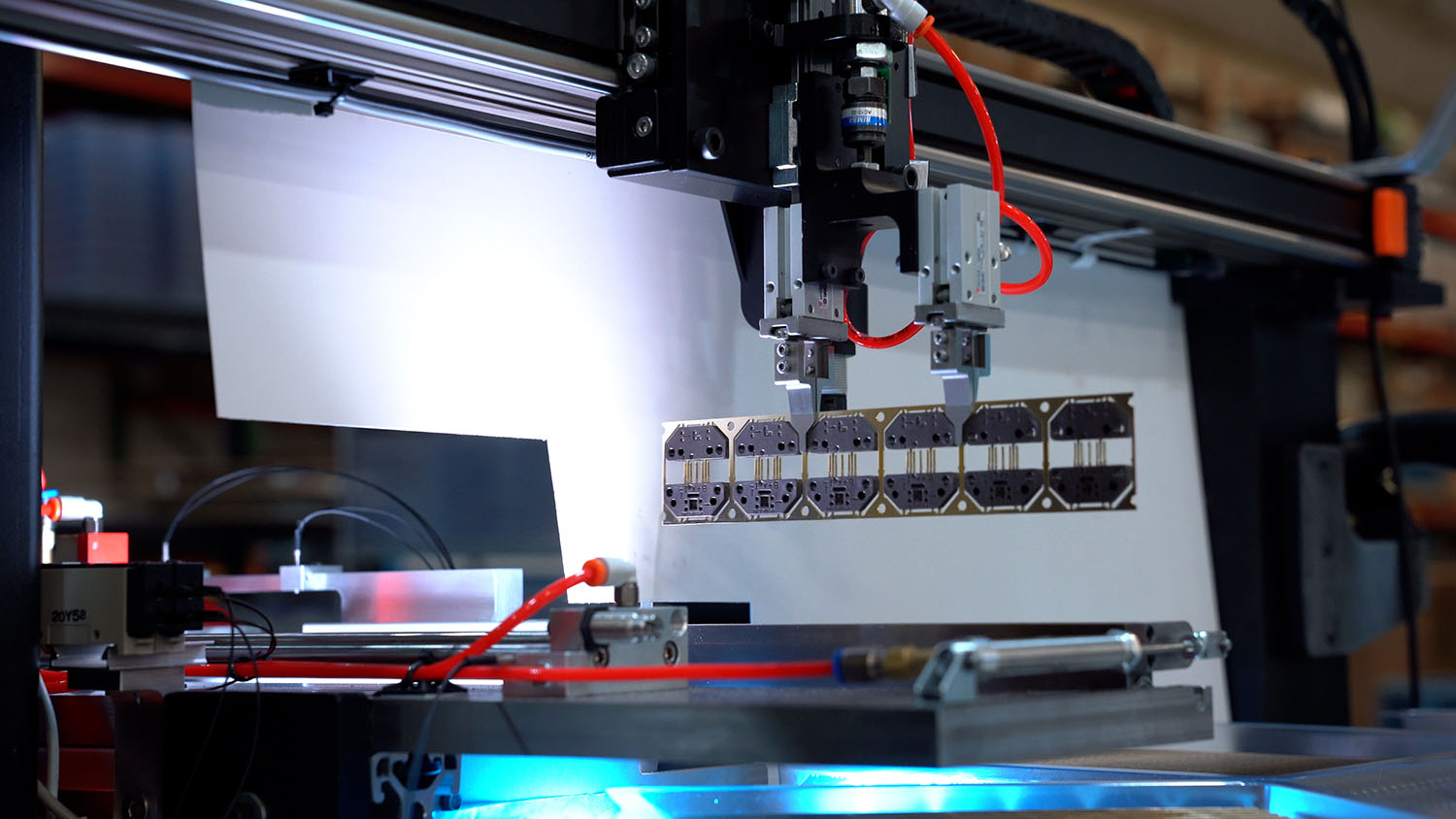

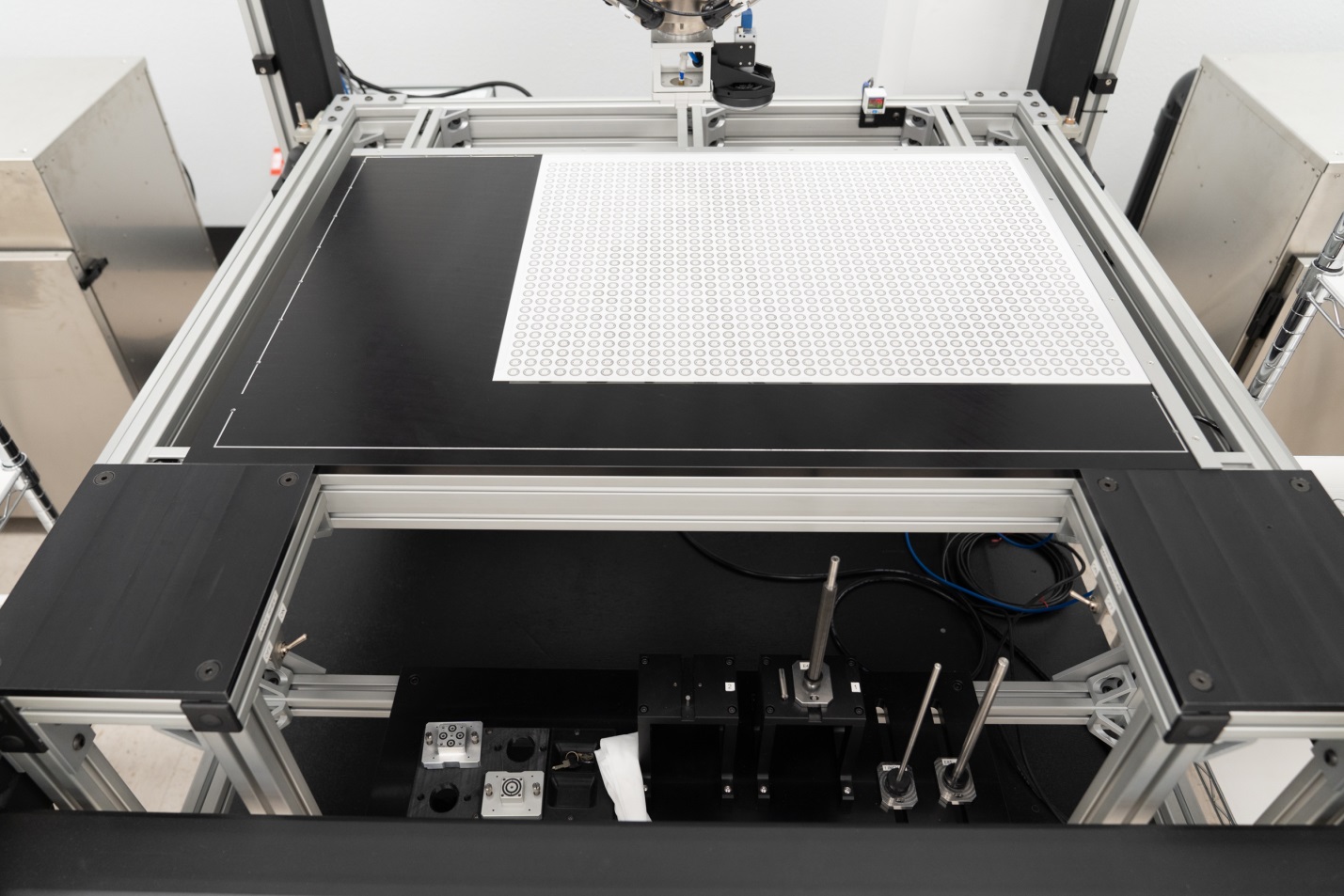

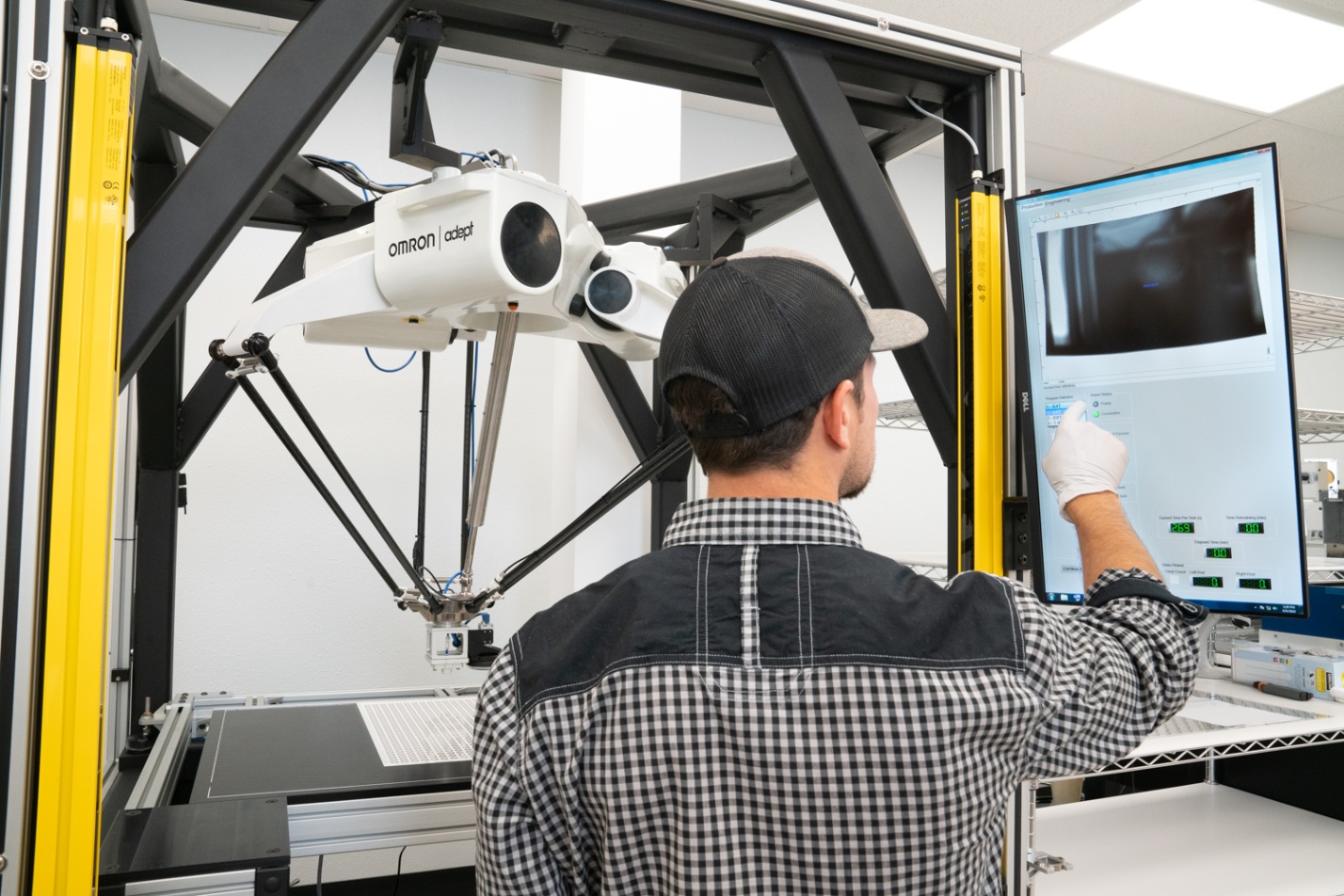

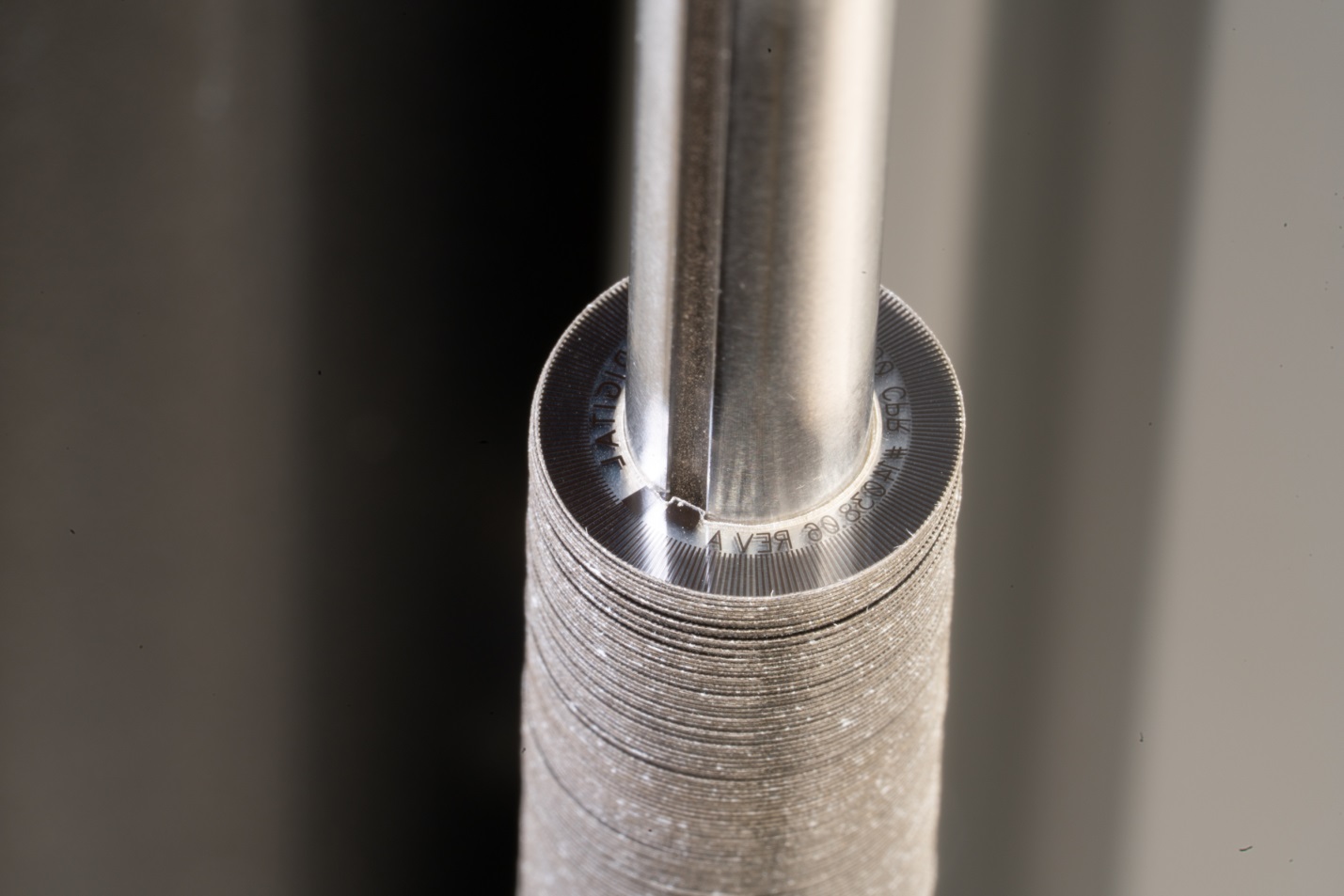

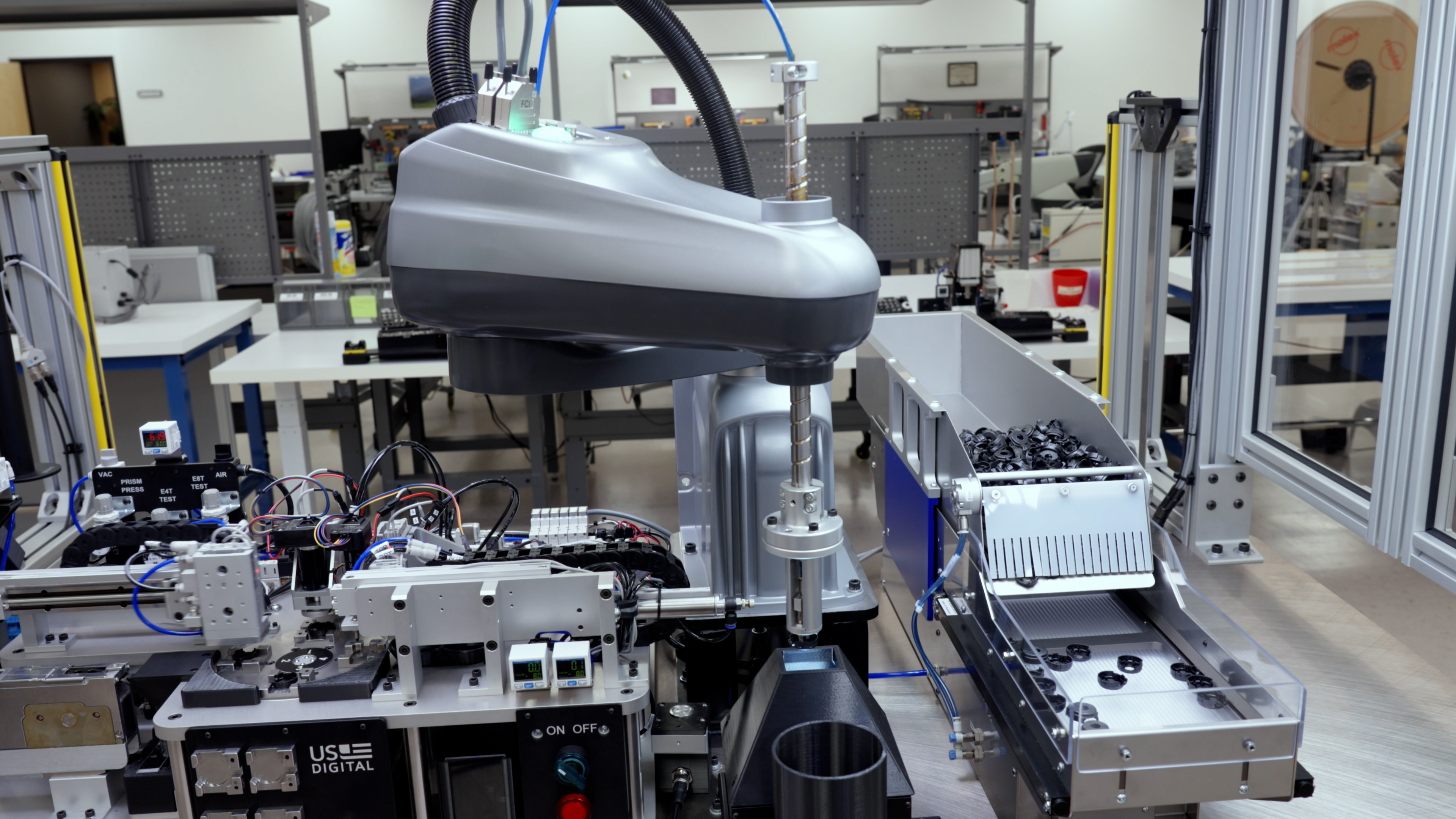

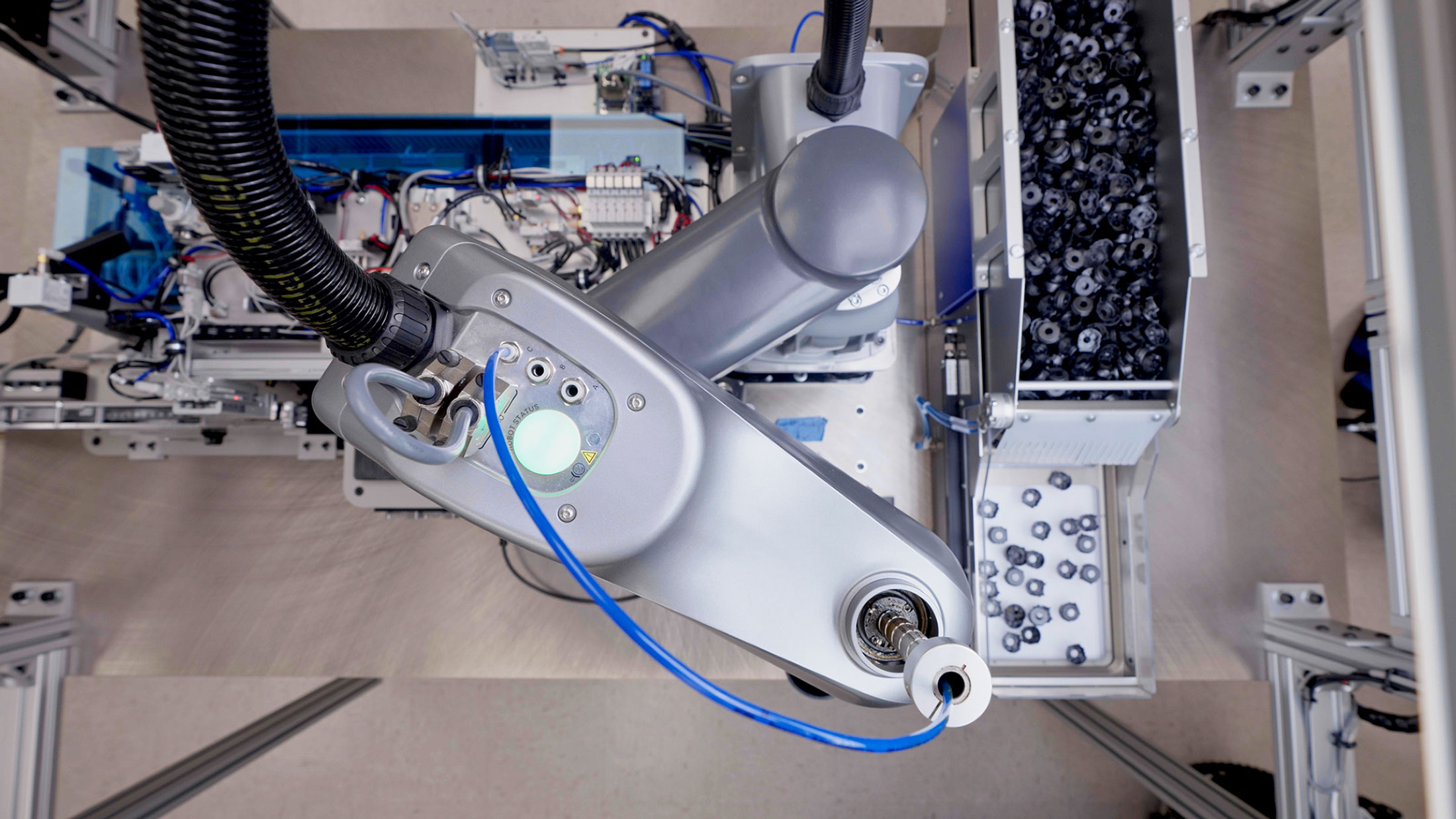

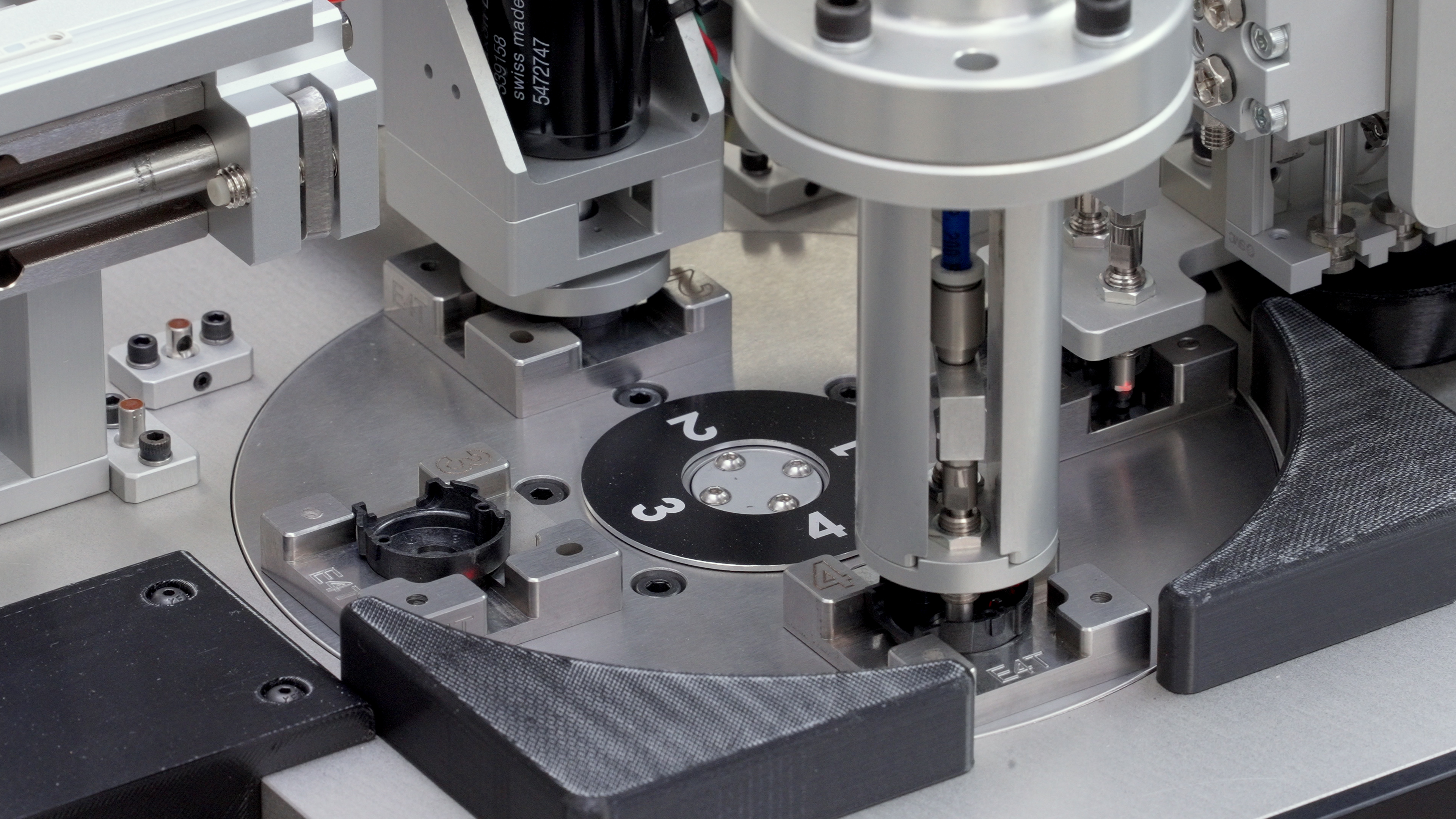

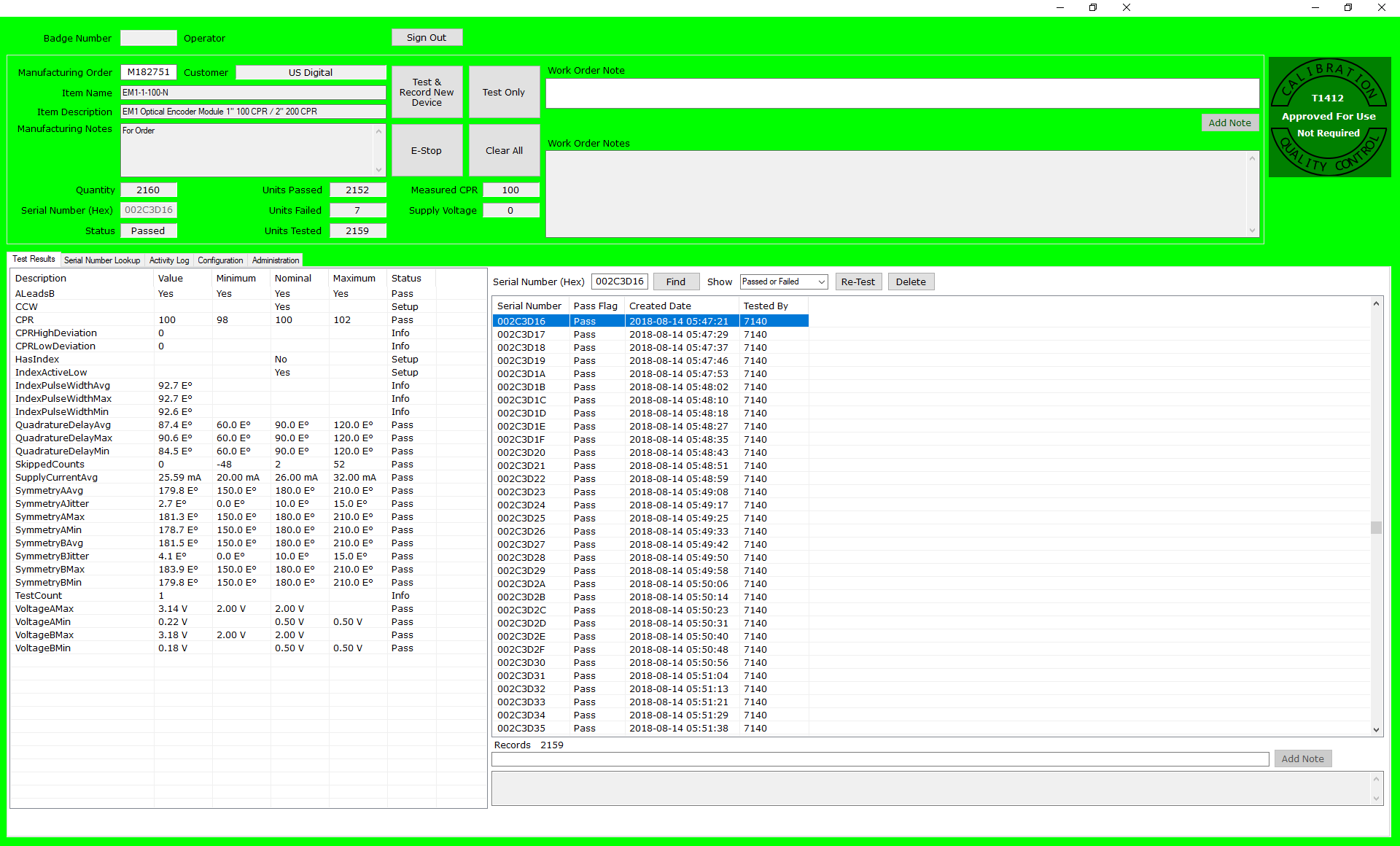

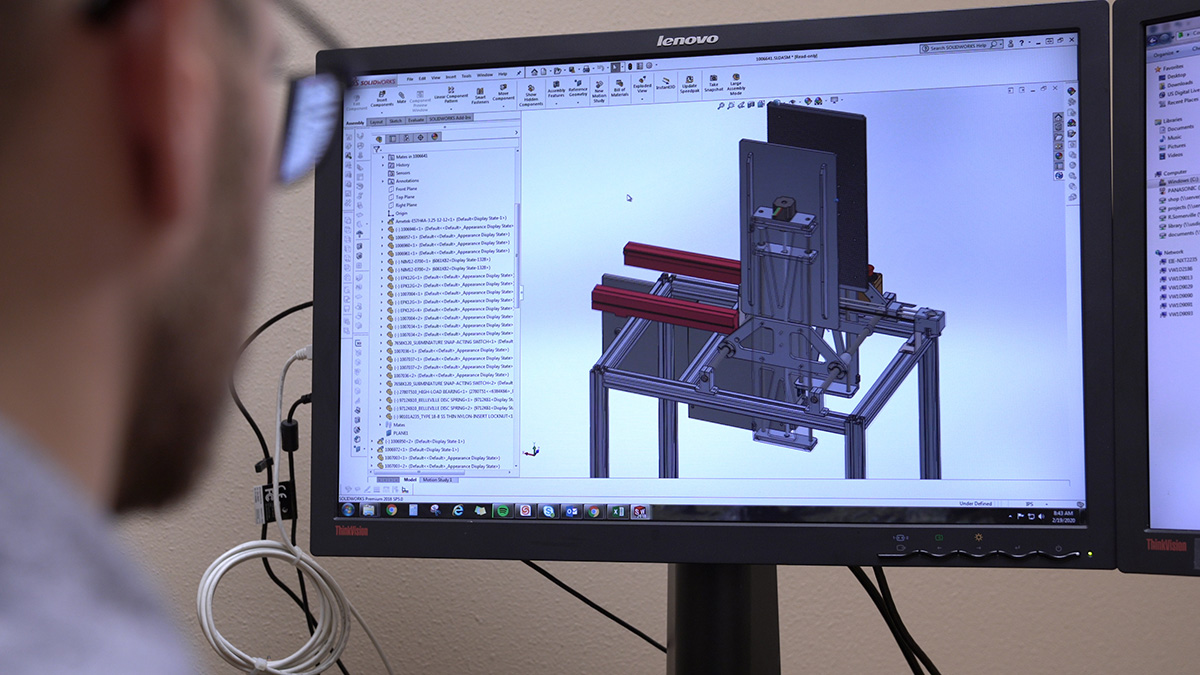

As a vertically integrated manufacturer, US Digital has invested many millions of dollars in advanced production infrastructure to support rapid customization across our line of encoders and accessories. Because we control critical processes in-house, we reduce reliance on outside vendors and overseas supply chains—allowing us to respond quickly, protect quality, and maintain consistency from prototype through production.

Our manufacturing capabilities include:

• Precision waterjet cutting system
• Wire EDM and sinker EDM machines
• Multiple 3-axis CNC machining centers
• Conversational and traditional mills
• Conventional and CNC lathes
• NC and CNC grinders
• Several laser cutters
• A bank of 5 and 6-axis CNC screw machines





This combination of advanced machining technologies allows us to modify housings, shafts, mounting configurations, and other mechanical features efficiently—without outsourcing critical processes.

Examples of customizations we have delivered in response to customer requirements include:
• Gear-driven encoders

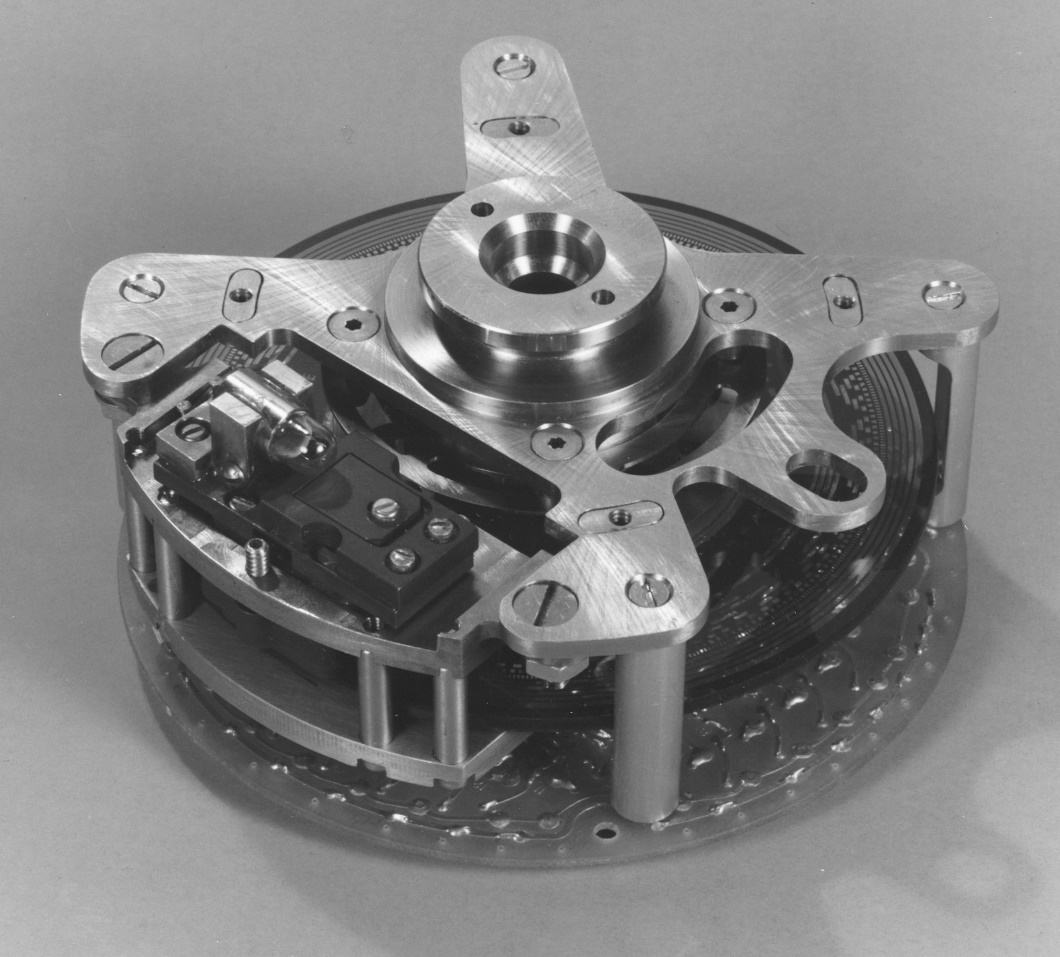

• Single encoder disks up to 24 inches in diameter
• Segmented encoder disks over 36 inches in diameter
• Custom size, shape, and spacing of holes on disks
• Multiple indices
• Custom index alignment





Depending on the scope and complexity, some custom projects have been completed within weeks, while others require longer development cycles. What remains consistent is our commitment to delivering solutions efficiently from concept to production.

Your application should not be limited to stock items. If it matters to your design, it matters to us. We look forward to hearing from you.

This is the fourth post in a series demonstrating that “making it easier” at US Digital is not just a slogan; it is who we are.

More in News

• Blog
• Events
• Press Releases

A Channel is an electrical output signal from an incremental encoder. Channels are designated A and B for the two quadrature outputs and I or Z for the index output.

Encoder Accuracy is the difference between the target position and the actual position. It is typically specified in degrees, arcminutes or arcseconds. US Digital has a white paper and blog with video discussing this topic..

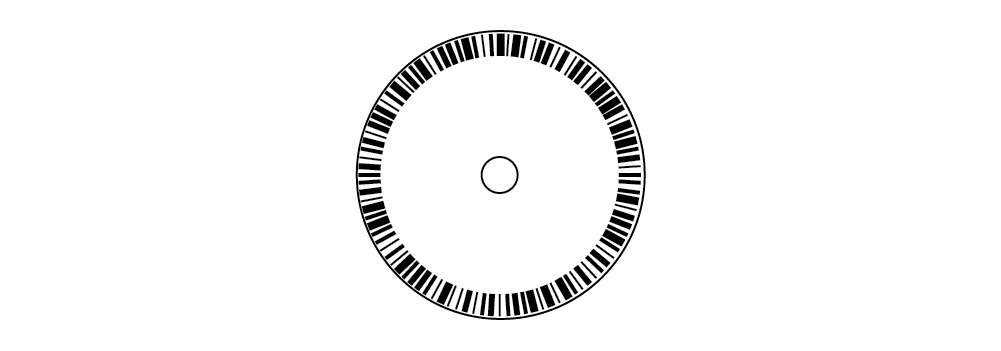

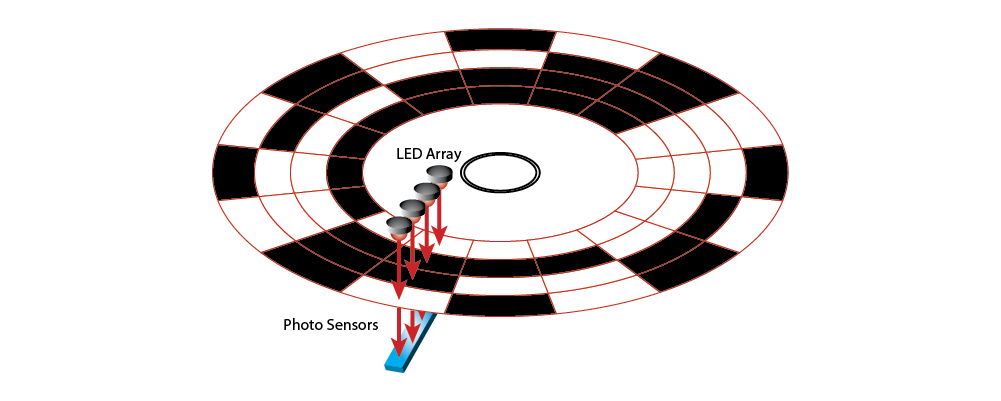

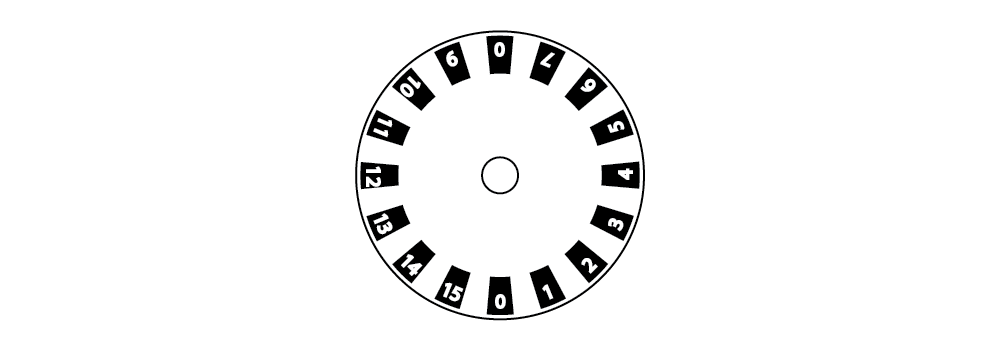

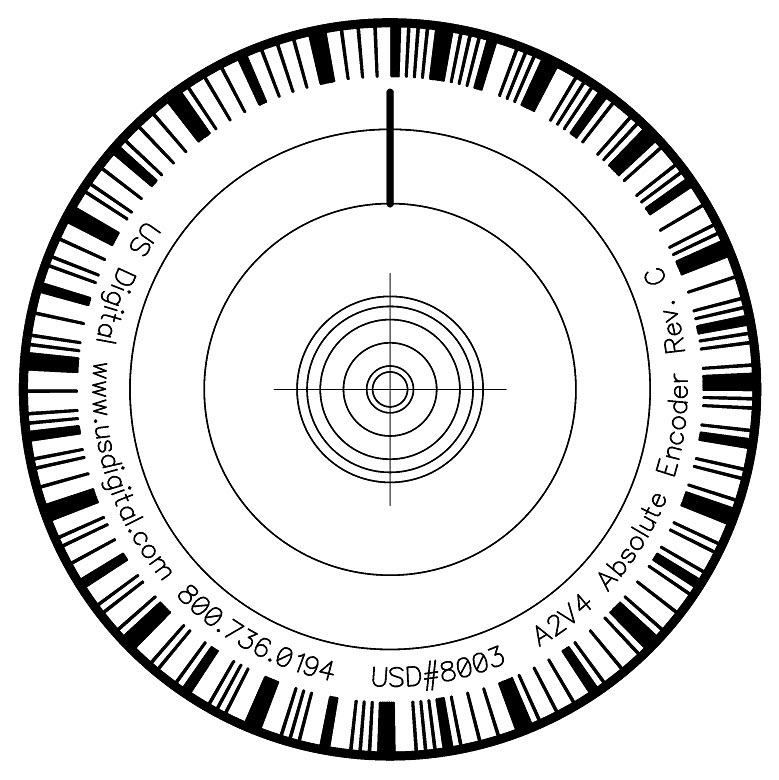

An Absolute Encoder is an encoder that provides a unique output for each resolvable position even after a power cycle. Unlike incremental encoders which provide an output designated in cycles per revolution (CPR), absolute encoders are called out in bits. For example, a 12-bit (2¹²) rotary encoder has 4096 resolvable positions in 360 degrees of rotation. US Digital employs both optical and magnetic technologies in their absolute encoders. US Digital’s optical absolute encoders are field programmable from 2 to 4096 codes per revolution. Absolute encoders can be single turn or multi-turn—keeping track not only the position of the shaft but also the number of rotations of the shaft.

Encoders are critical elements in a motion system because they provide position and/or velocity feedback to the motion controller, enabling the controller to close the positional control loop. The number of applications which require encoders is extensive and the types and sizes of encoders that serve these applications are just as numerous.

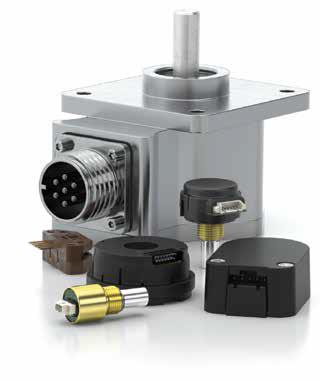

Encoders may be categorized in various ways but in this post, we're going to look the difference between linear and rotary encoders.

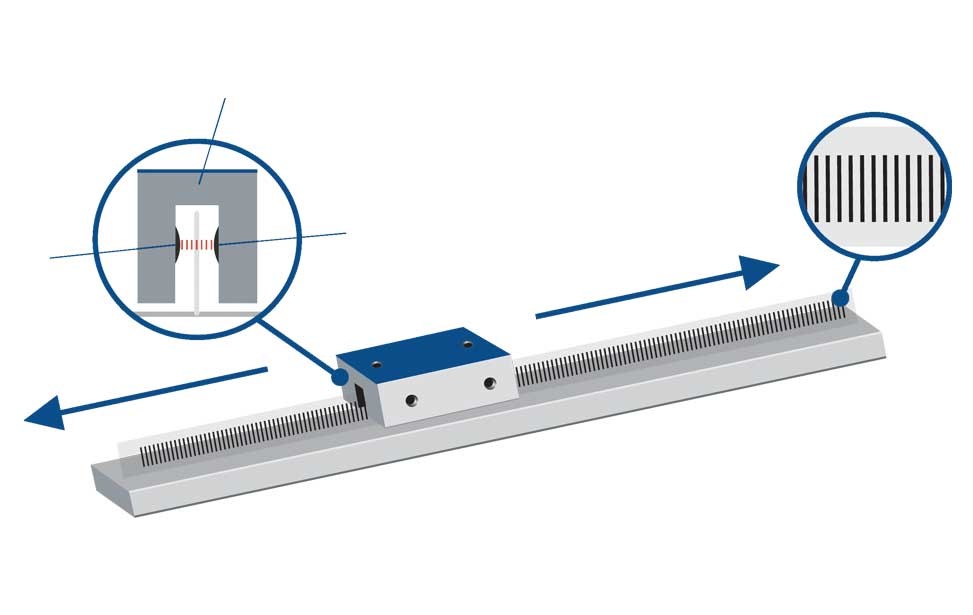

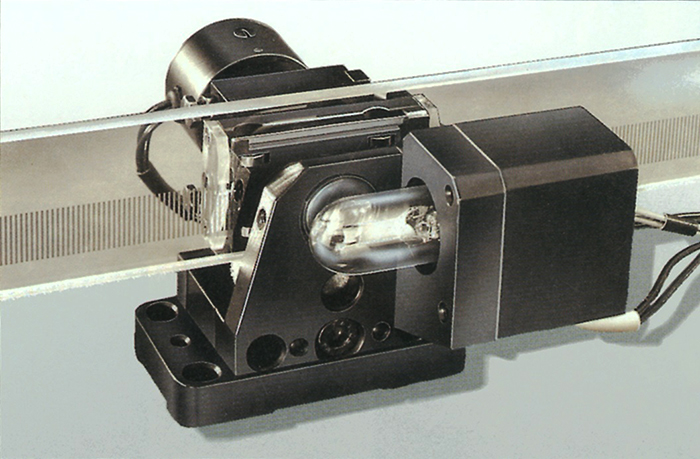

What is a linear encoder?

As the name suggests, a linear encoder measures the position or velocity of an object moving in a straight line.

Typical linear applications are the control of linear motors or X-Y tables such as those found on 3D and inkjet printers as well as laser etching and engraving machines. Linear encoders are also commonly found in devices such as metrology instruments including digital calipers.

What is a rotary encoder?

A rotary encoder, on the other hand, is used to measure the angle or velocity of rotation of an object. Some typical uses include motor speed control, or the angular control of a movable PV array for solar tracking, or controlling the angular position of a robot arm.

Rotary encoders are available with different physical specifications to serve different working environments. For example, those used in harsh industrial applications must be designed to withstand rugged and extreme working conditions. Extreme temperatures, vibration, dirt and debris are some of the challenges that these encoders have to survive on a daily basis. As a result, industrial encoders tend to be big and solidly built to withstand the tough environment, and typically include some form of IP rating. For less harsh environments, such as those in electronics manufacturing, the emphasis may be on smaller size, lower cost or the ability to take advantage of more configuration options, while not compromising on longevity or high quality.

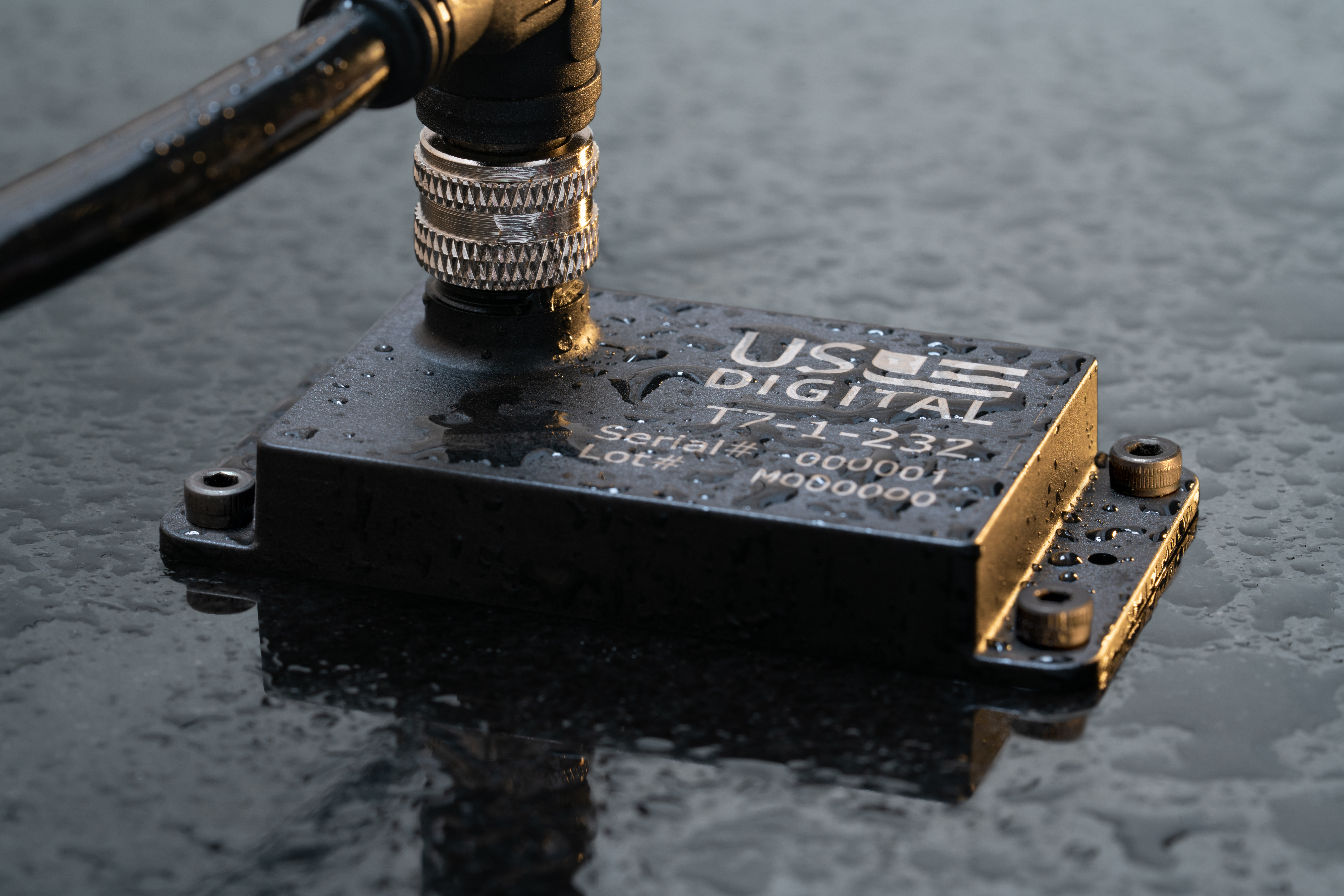

Bonus: What is an Inclinometer?

Inclinometers, also known as tilt sensors, provide feedback so that the angle of tilt of an object can be calculated with respect to gravity. Typical usages of inclinometers are for concentrated solar power (CSP), industrial equipment, aerial work platforms and dredges.

Linear encoder drawing source - https://www.epiloglaser.com/laser-machines/legend-laser/legend-linear-encoders.htm

More in News

• Blog
• Events
• Press Releases

A Motor Encoder is a rotary encoder designed for installation onto a motor shaft, typically a motor tail shaft. They can be installed on other shafts in a mechanical system.

What do Motor Encoders do?

Motor encoders translate the motor shaft movement into an electrical signal. This output can be used to determine shaft angle, shaft speed, and shaft direction.

Why are Motor Encoders used?

Encoders act like a GPS for your motor. Depending on the encoder used, you can know the angle of the motor shaft, the speeds at which it rotates, and the direction it is rotating.
Having this information can allow a control system to send a command to the motor or other device to make sure it does what you need in your application—like keeping a flow rate of liquids in a pump constant, moving a robotic arm to the proper angle, or cutting a cable at the proper length.

How do Motor Encoders work?

They consist primarily of a disk and a sensor, though depending on the design they may also include an emitter like an LED. As the disk rotates, the sensor provides an output proportional to the movement of the shaft.

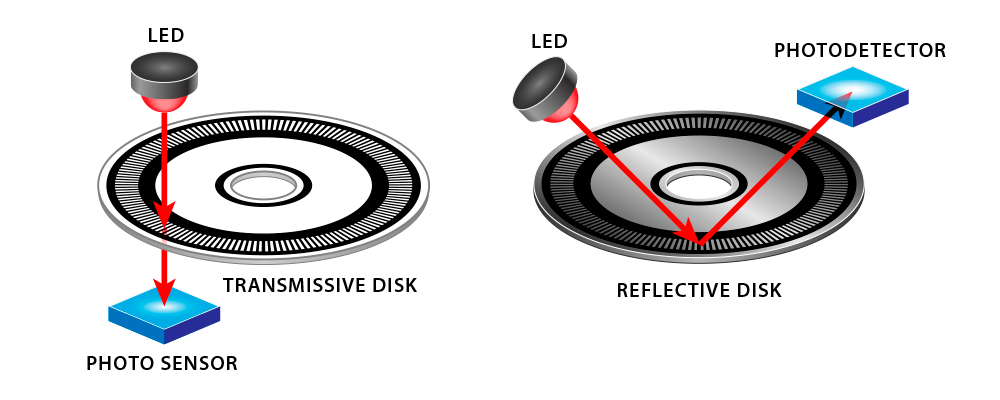

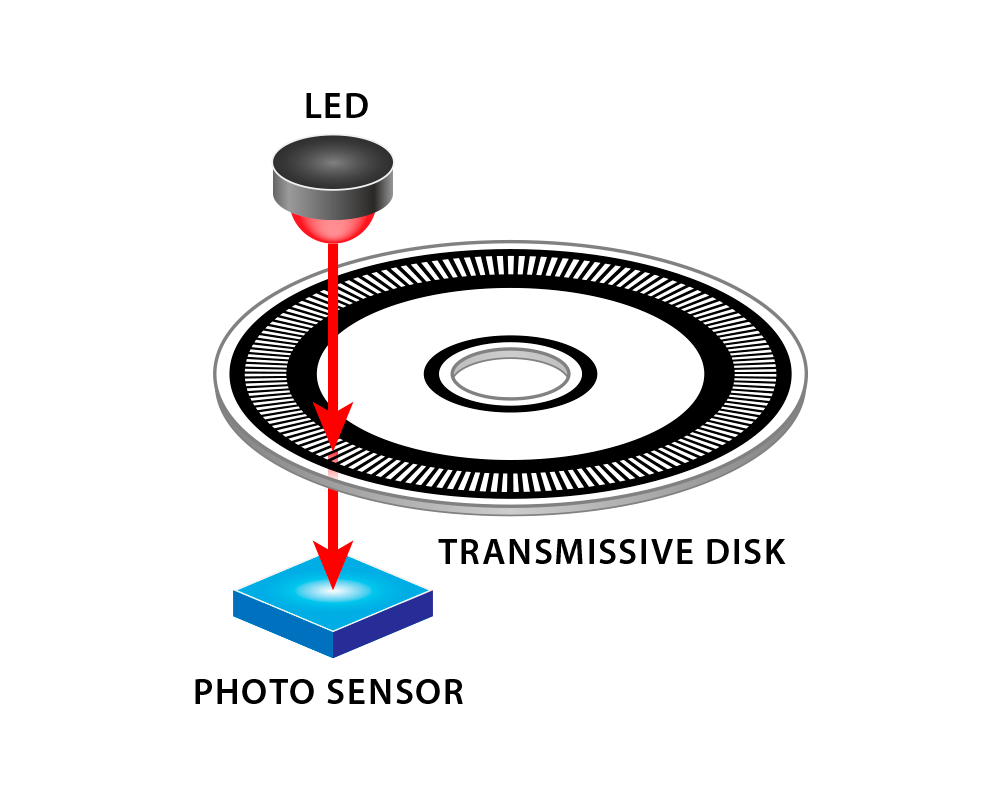

Optical Motor Encoder

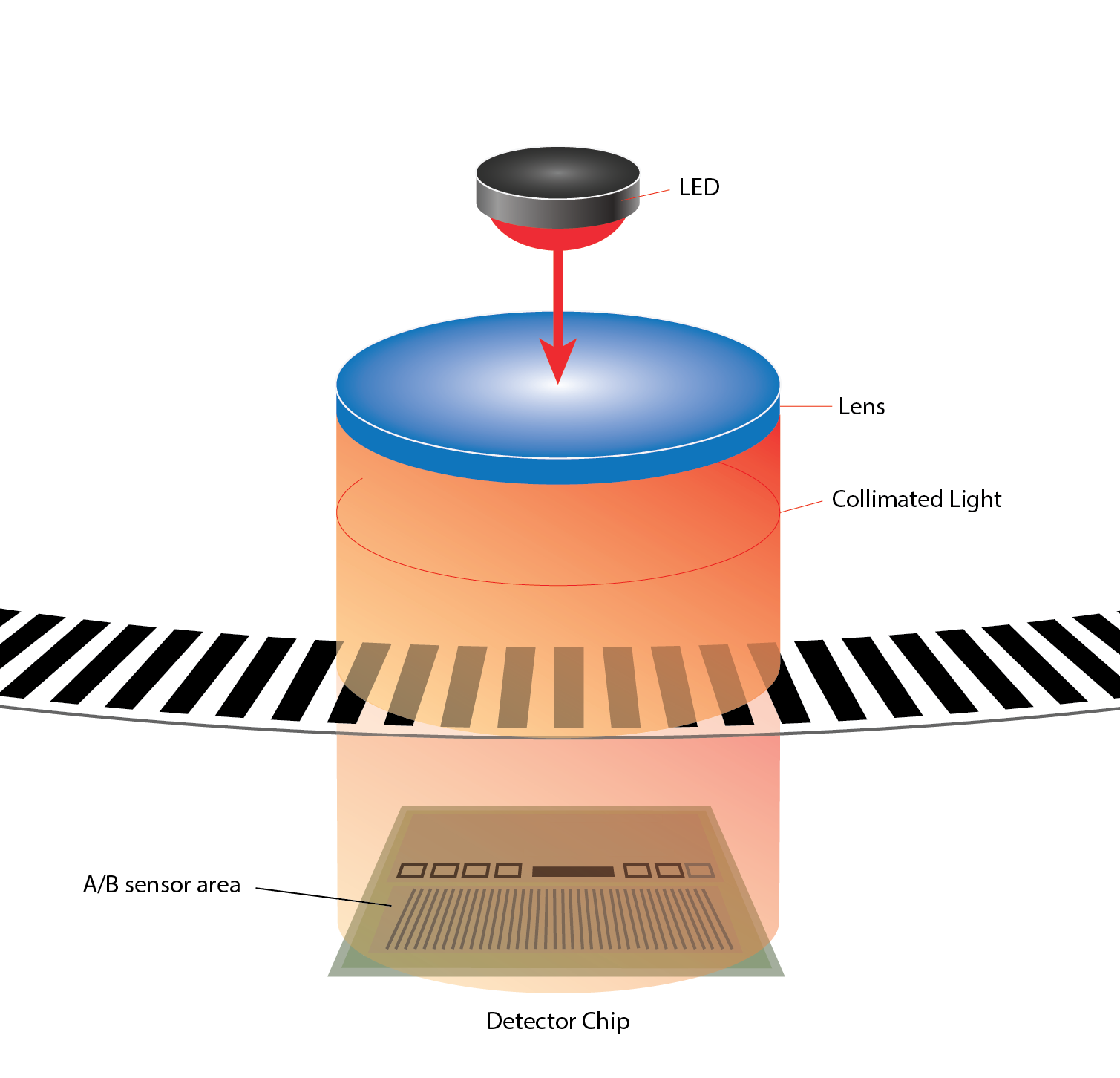

These encoders have a specially patterned disk rotating between an LED and a detector sensor—reporting is based on when the LED light is seen by the sensor and when it is not for transmissive encoders. For reflective encoders, the light beam bounces off the reflective disk to the photodetector, producing the same results.

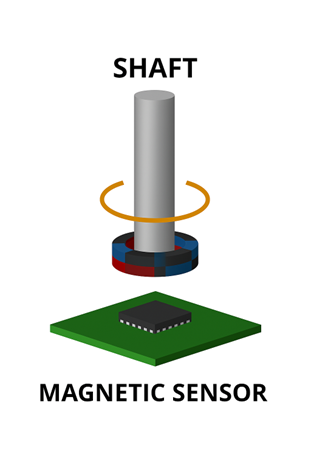

Magnetic Motor Encoder

This encoder type has a magnet on a shaft whose movement is monitored by a magnetic sensor—reporting is based on the change in the magnetic field as the magnet rotates.

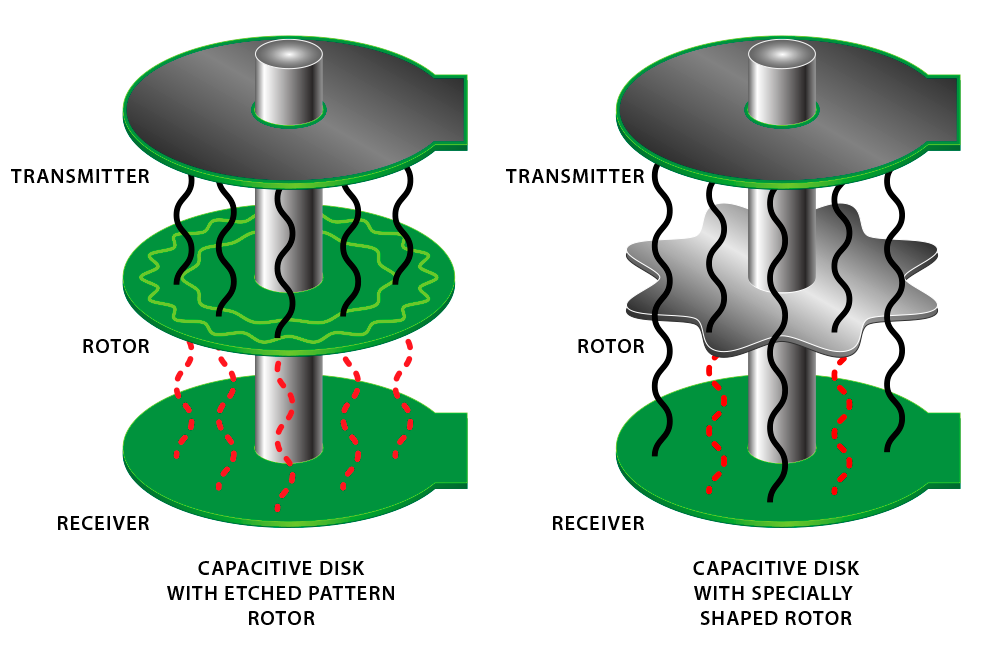

Capacitive Motor Encoder

These encoders have a specially patterned rotor which is monitored by a stationary capacitive plate commonly called a stator—reporting is based on the capacitance change between the rotor and the stationary plate as the rotor rotates.



What is the difference between an Incremental Motor Encoder and an Absolute Motor Encoder?

Rotary incremental encoders

These encoders provide an output indicating the changes in the shaft movement. In other words, if all you need to do is monitor the speed of the shaft, or the direction the shaft is turning, or the relative distance turned, an incremental encoder is a great choice. If the encoder has an index, it can also provide information as to the number of turns the encoder has rotated or provide a fixed starting position for distance measurements. Without an index, incremental encoders lose position data after a power cycle, until the encoder (with an index) performs a homing cycle. However, a power cycle would also cause the encoder to lose any information about the number of turns the encoder has rotated.

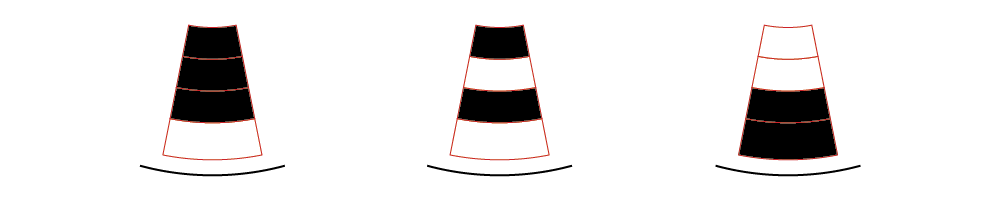

Absolute rotary encoders

This type of encoder can do everything an incremental encoder can do, plus, as each resolvable position provides a unique output, even after a power cycle, the output of the encoder provides the information as to the angle of the shaft. Multi-turn encoders add one more piece of information, keeping track of the number of turns the encoder has rotated. even after a power cycle.

What kind of output do Motor Encoders produce?

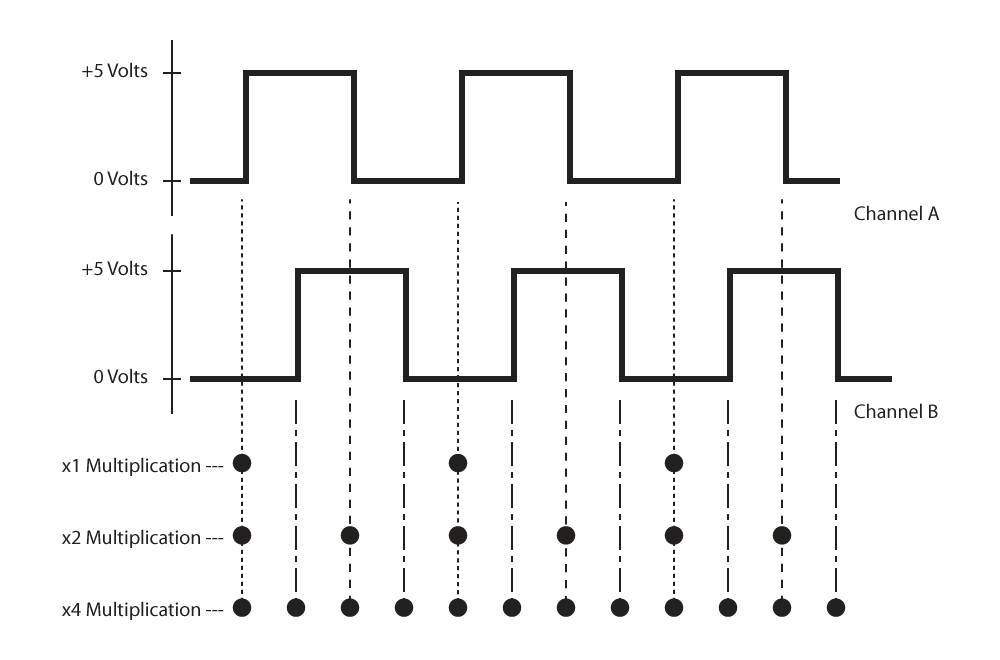

Quadrature

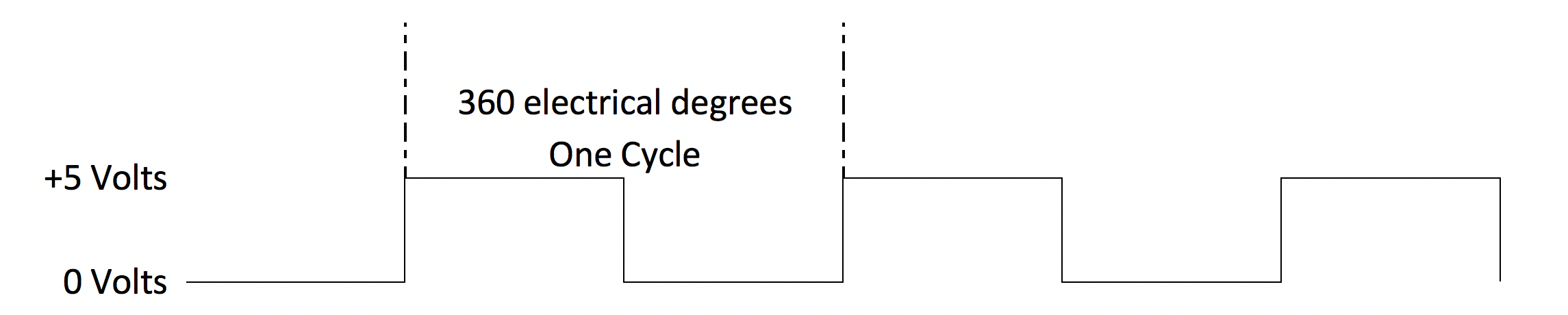

The most common encoder output is referred to as quadrature output. The term quadrature is used because the signals of the two main channels are offset by 90º or ¼ of a complete cycle. Below are several interface types using quadrature.



Incremental Output Interface Types

Single-Ended

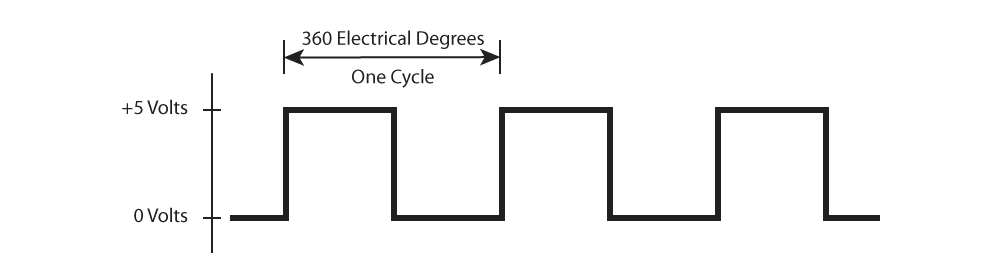

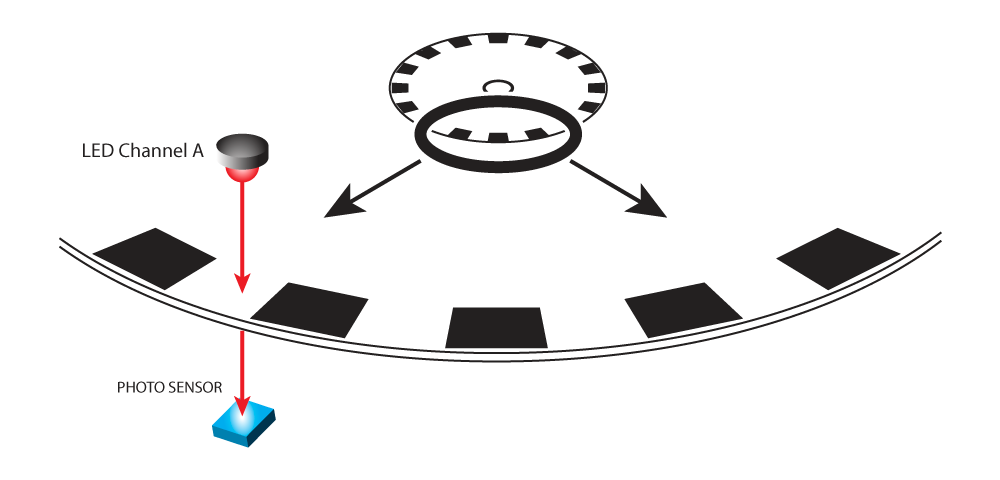

The quadrature output is a square wave signal produced on two channels typically referred to as Channels A & B. As stated above, these channels are offset by 90º electrical degrees which allows for direction detection also.

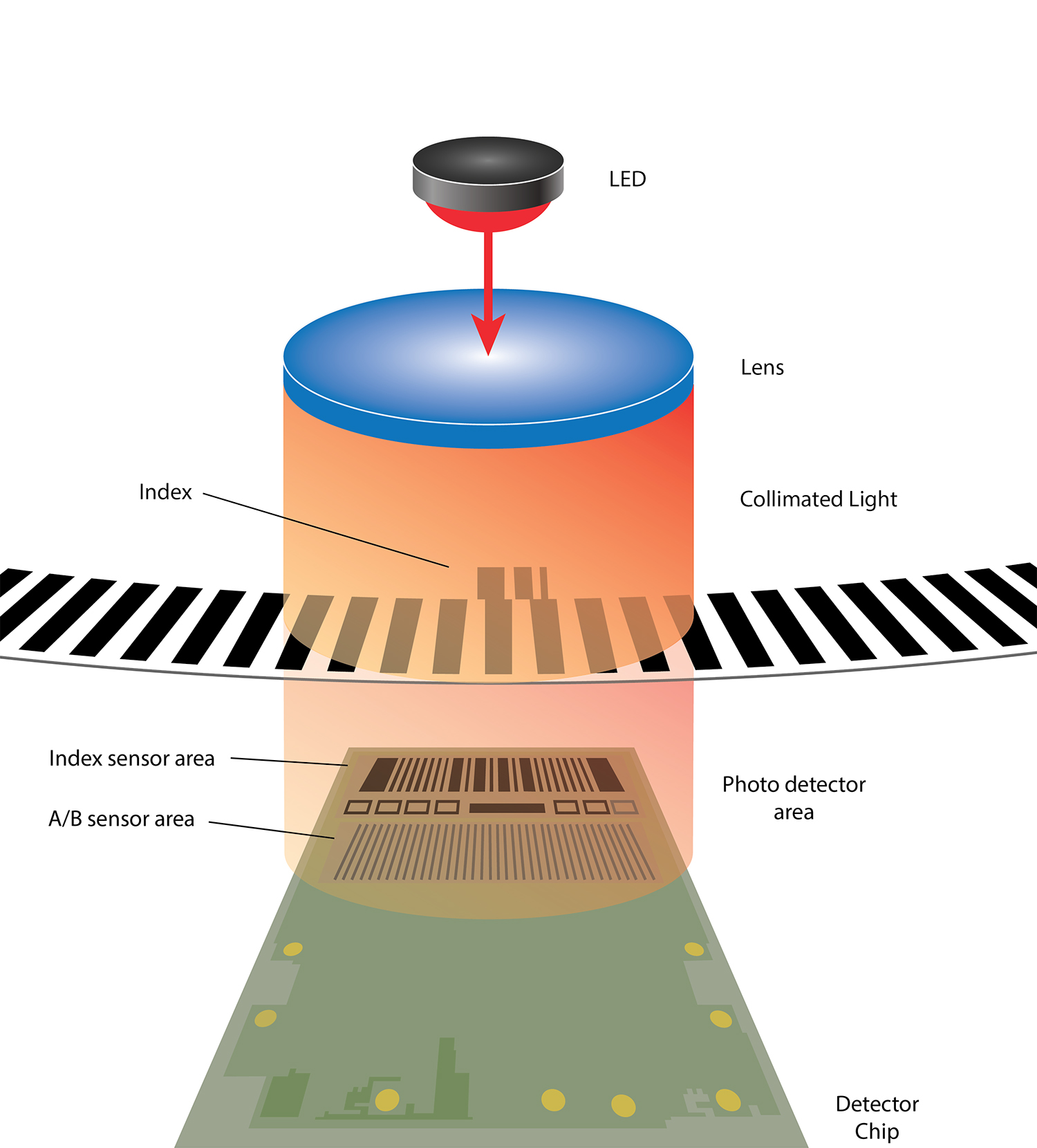

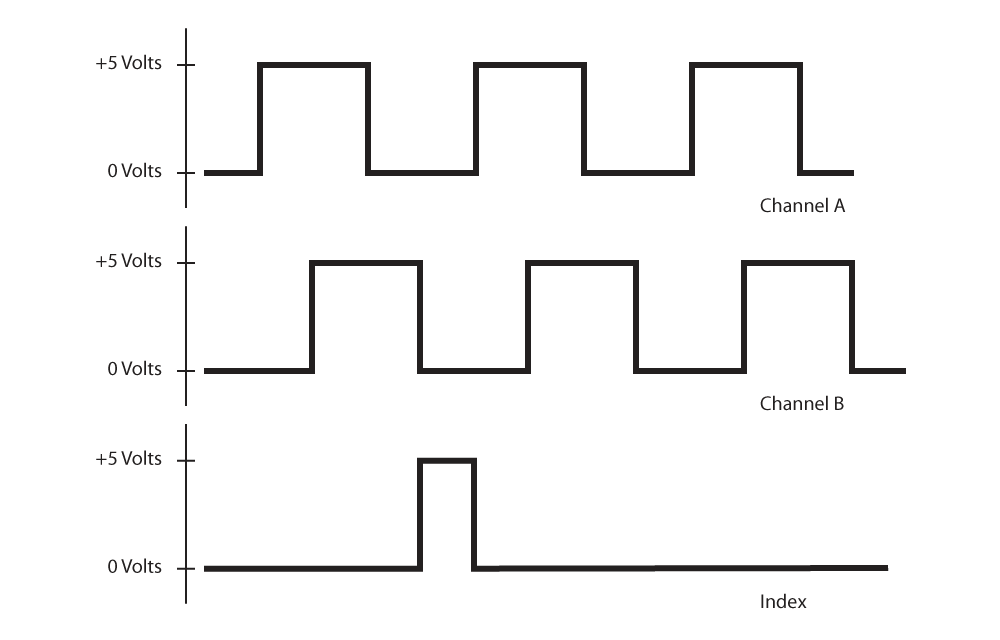

These encoders can also have an Index channel, often referred to as channel I or Z, which provides an output just one time in the rotation of the disk.



Open Collector (NPN)

 A drawing of the signal for this output would look identical to the one above. The difference is that an open collector output doesn’t send out its own voltage but instead relies on the connected device or system to complete the signal. An example of this type of output is when a 5VDC encoder provides an output of 24VDC.

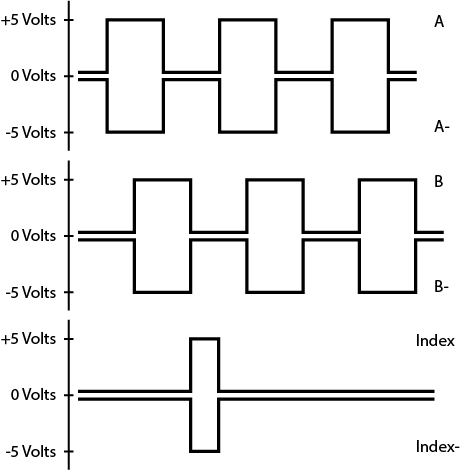

Differential Output

A differential encoder output provides a quadrature signal and a complementary signal, which is the inverse of the main signal. This larger signal differential makes it an excellent choice for long cable runs and for installations in an electrically noisy environment. It does require a differential receiver.



Absolute Output

An absolute output can be an analog voltage or pulse width modulation (PWM) where the output varies in relation to the 360º rotation of the encoder/shaft—lowest before 1º and highest after 359º.

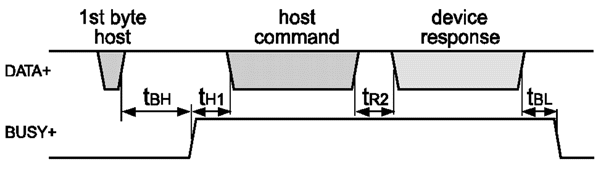

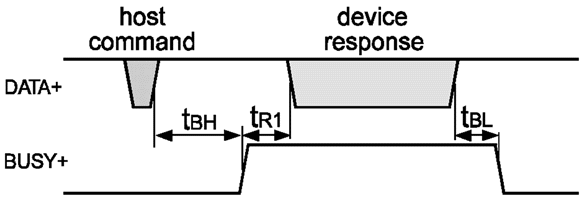

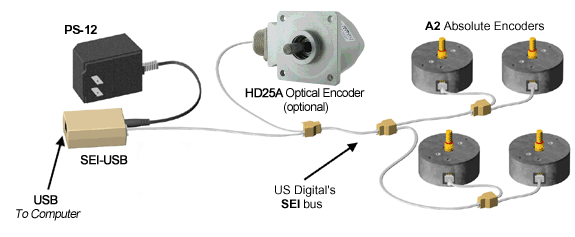

Absolute encoders also often use serial interfaces which include such protocols as SEI, SSI, BiSS-C, Profibus, etc.

Drawing of an Analog Absolute Encoder Output	Drawing of PWM Absolute Motor Encoder



Commutation Output

Encoders with a commutation output provide UVW signals allowing the control system to determine the rotor’s position and properly sequence current delivery to the motor windings. BLDC motors need commutation output to operate at the proper speeds.

Which Kinds of Motors Use Encoders?

Note – Servo motors are typically BLDC motors with some brush style motors being used as well. A stepper motor is a specialized version of a BLDC motor and some applications use stepper motors as servo motors in simple low cost servo systems.

Servo Motors

It is estimated that over half of all motor encoders are used on Servo Motors. They demand high-resolution feedback from encoders to hit exact positions. Application examples include CNC machines, robots and surgical devices.

AC Motors

AC Induction Motors are the second most common motor on which encoders are used. Because of the environment in which these motors are often installed—Motor Encoders used in these applications may be required to tolerate more vibration and shock. Application examples include industrial pumps, power conveyers, and maybe even the high-powered blender in your kitchen.

DC Brushed Motors

Often due to their low cost and simple design, DC Brushed Motors are used with encoders in simple automation, electric scooters, and other smaller electric vehicles.

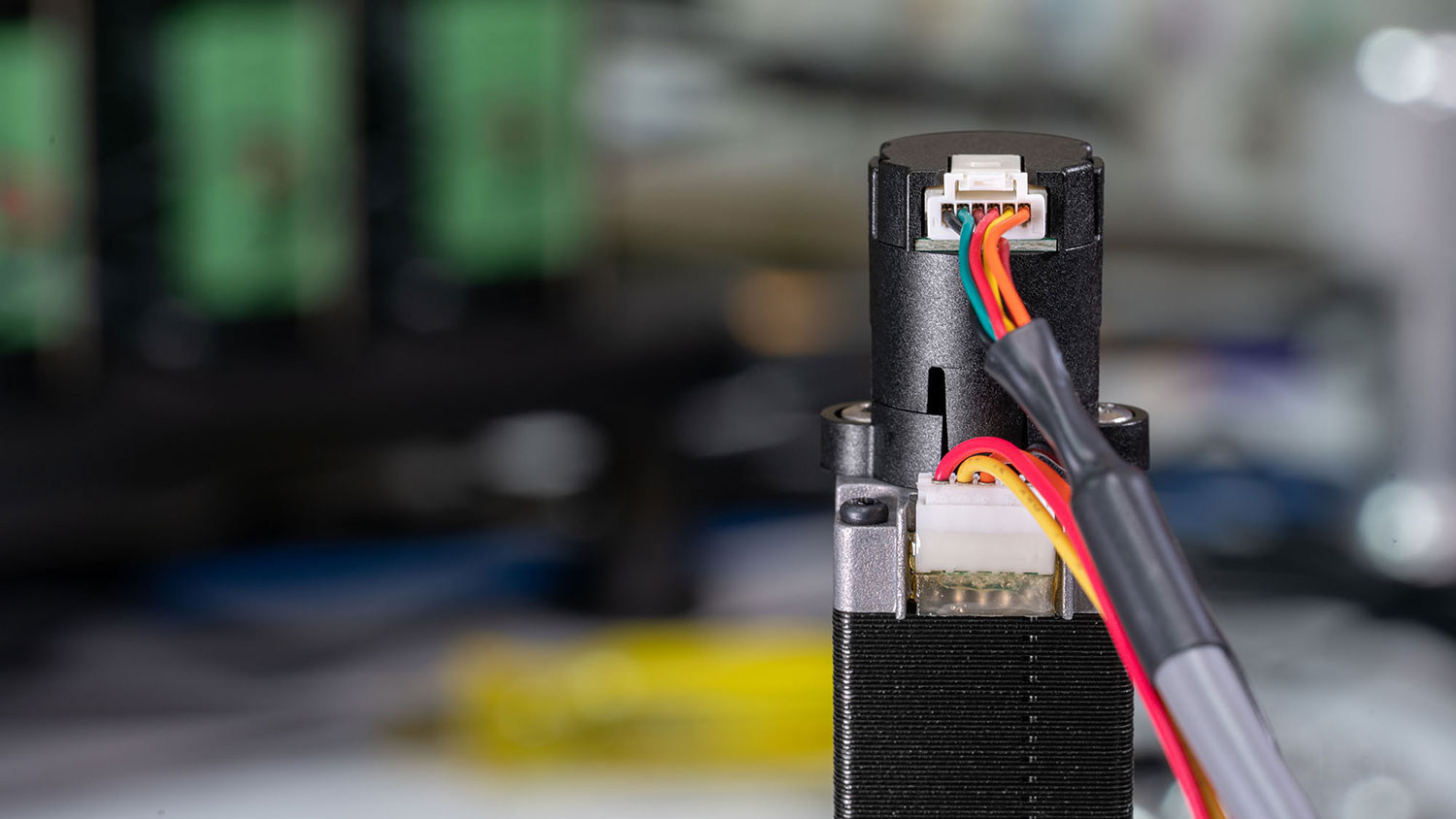

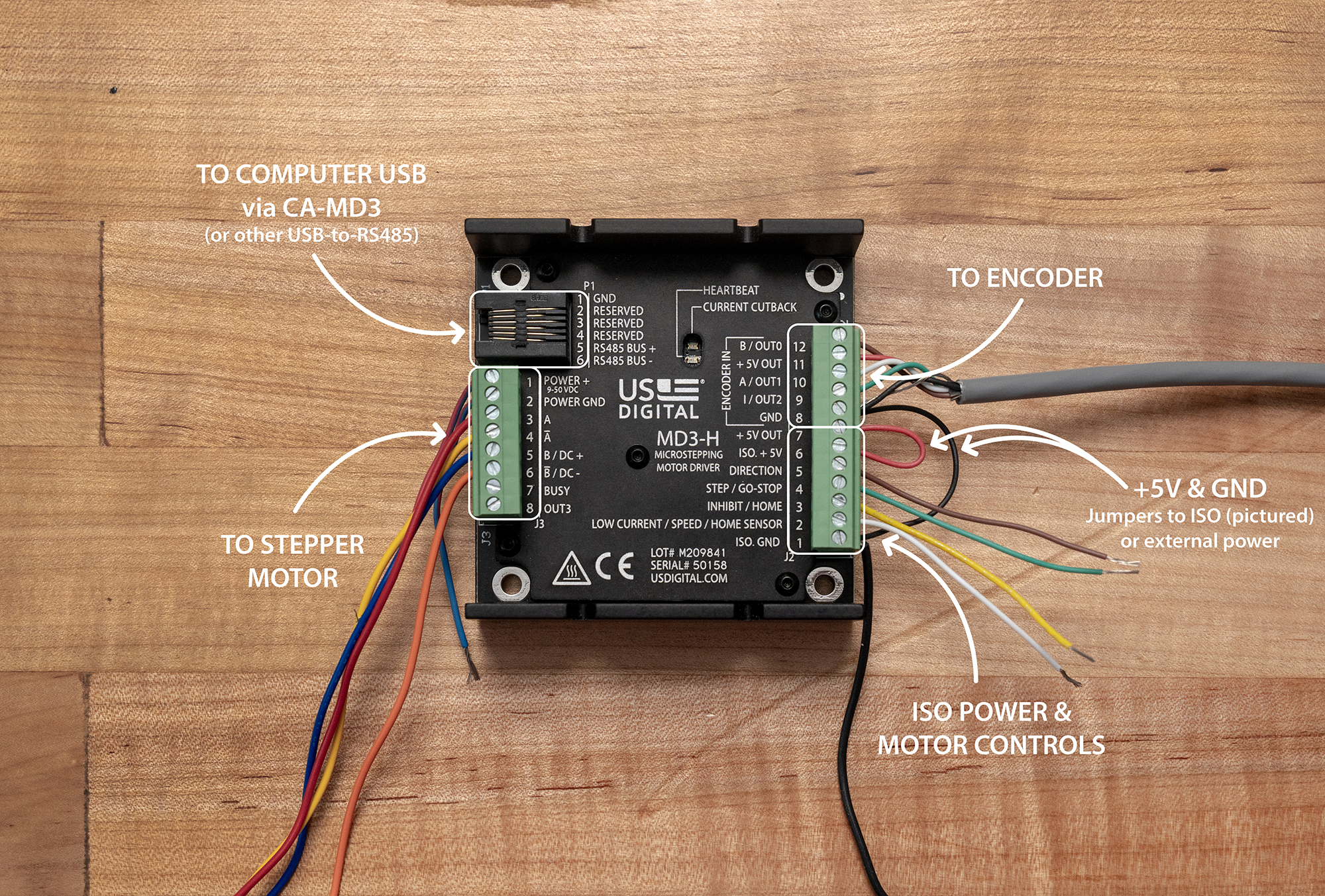

Stepper Motors

Hybrid Stepper Motors probably comprise another 20% of motor encoder applications. Encoders can be used to monitor the movement—make sure it moved the correct distance, or it can be used to report that information to a controller to close the loop and modify the position. Application examples are labeling machines, automated arms, textile machines, and semiconductor equipment.

Brushless DC Motors (BLDC)

BLDC motors provide good efficiency, longevity, and high performance. Adding an encoder can provide position control, speed regulation, and error detection. Some encoders used with BLDC motors can also provide a commutation output which monitors rotor position used to determine which coils to energize. Application examples include drones, gate operators, medical devices, and HVAC.

Linear Motors

Linear Motors can use several of the above motor technologies, but they would require a linear encoder—which is not traditionally thought of as a “Motor Encoder” as motor encoders are typically, rotary encoders.

How do Motor Encoders Mount to a Motor?

While a shafted encoder can be mounted to a motor via a coupler, besides being less expensive, it is simpler and will typically last longer if an encoder is connected directly to a motor shaft.

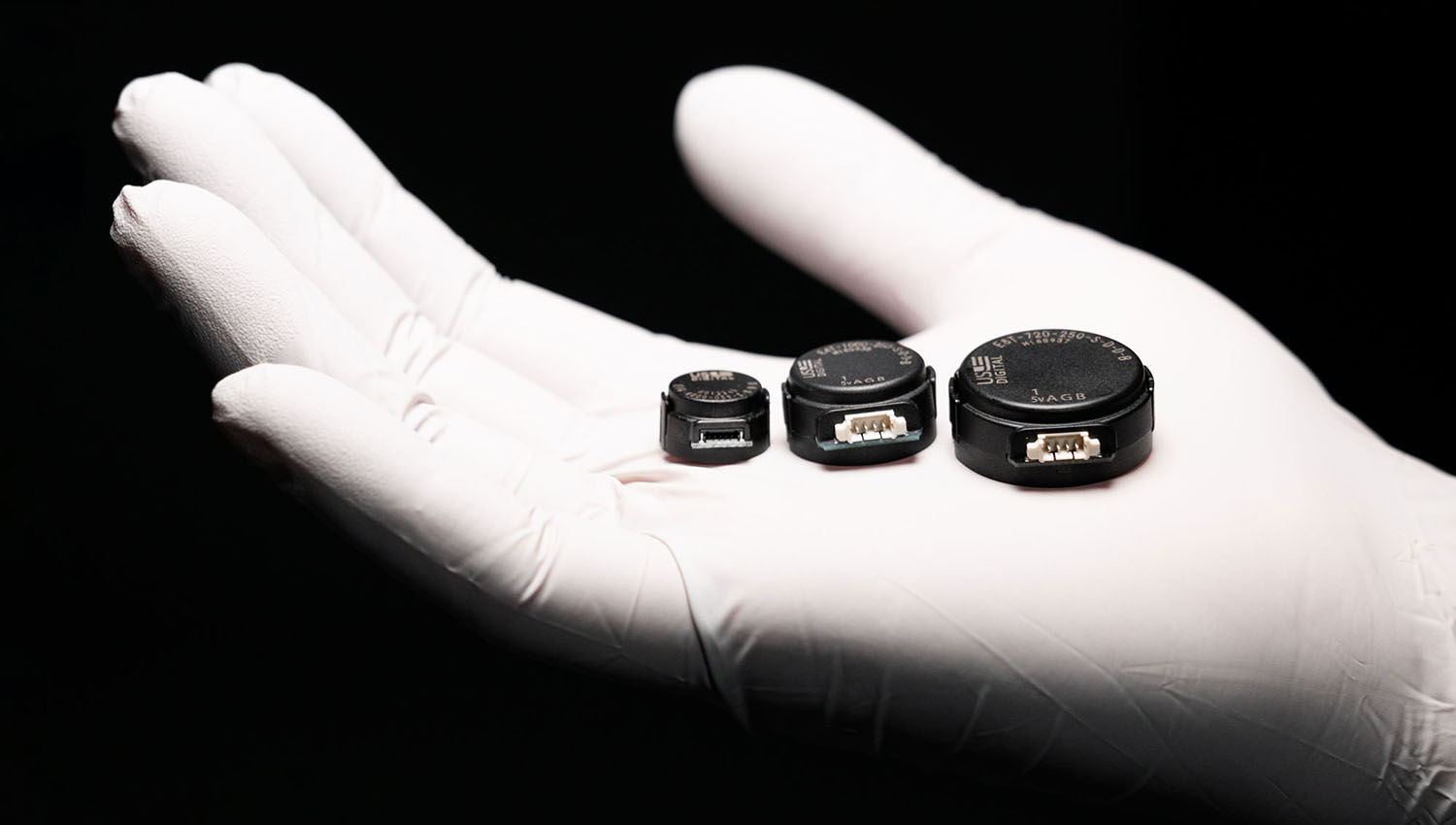

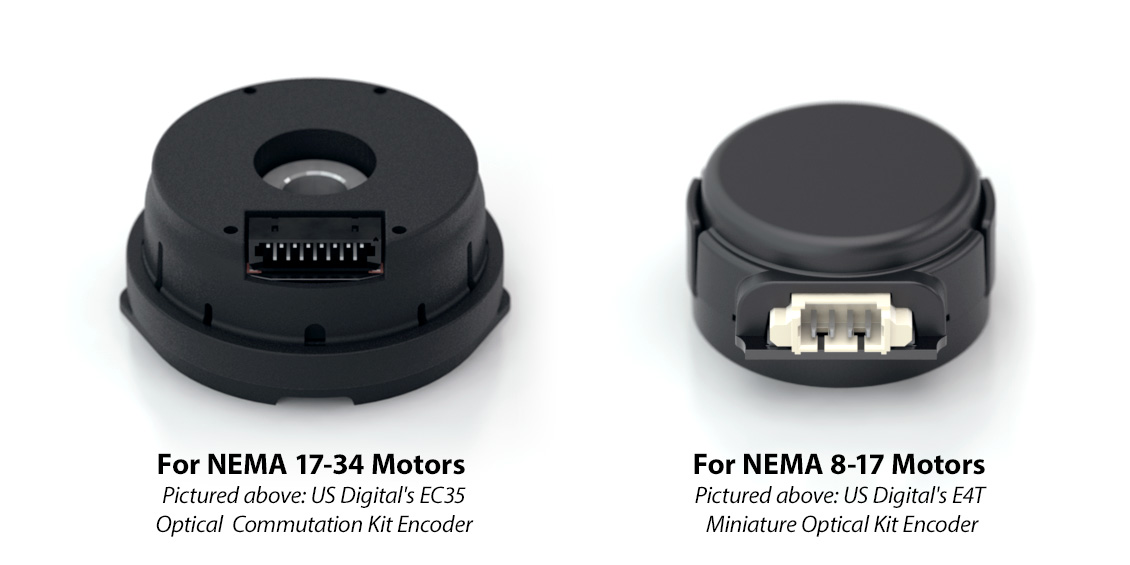

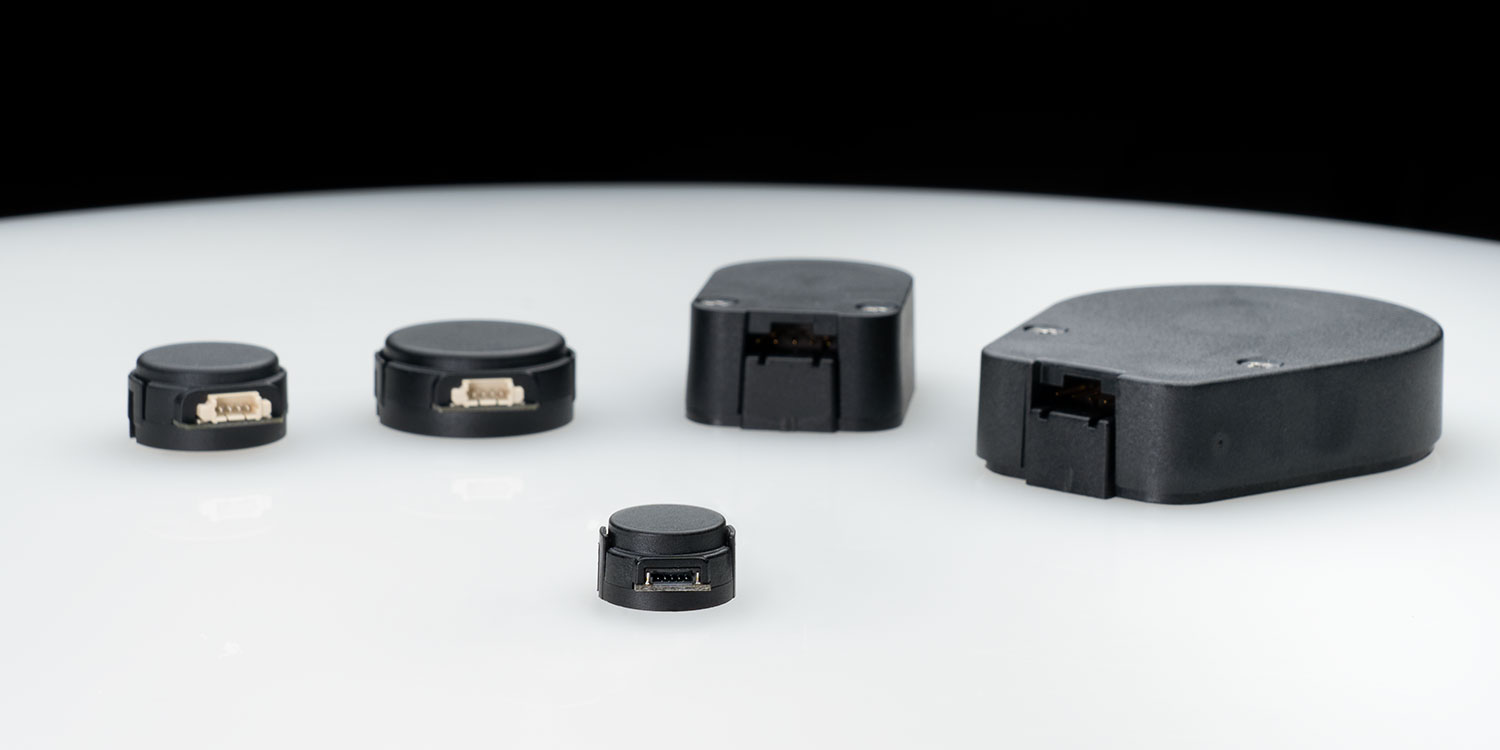

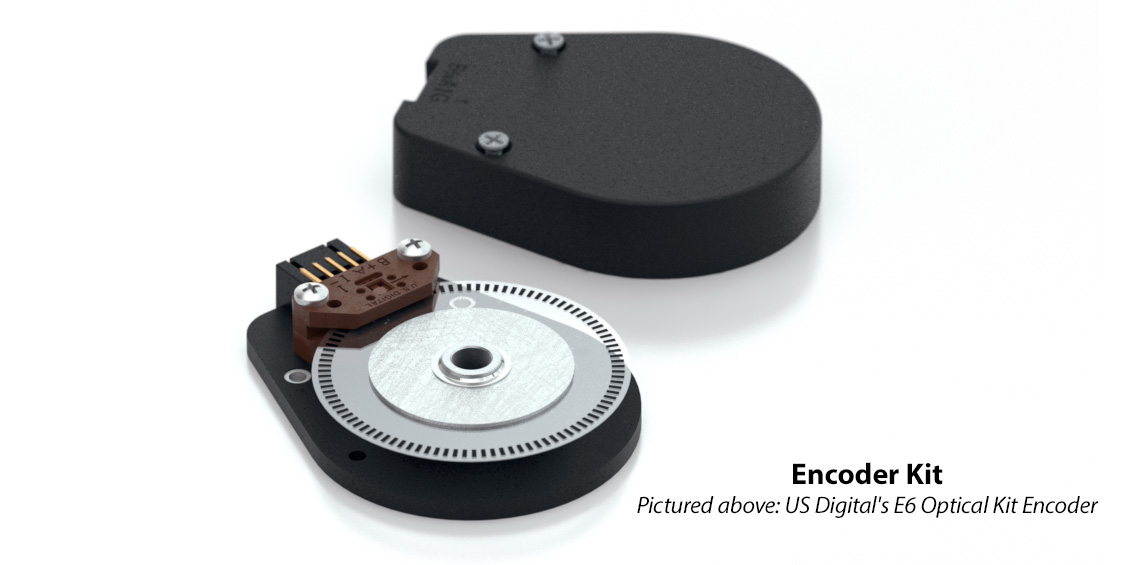

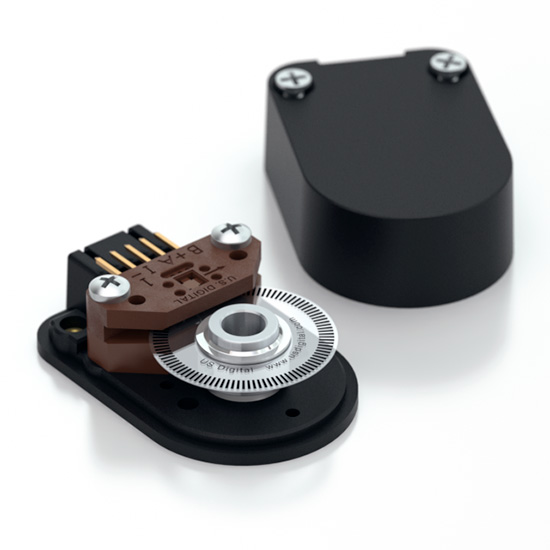

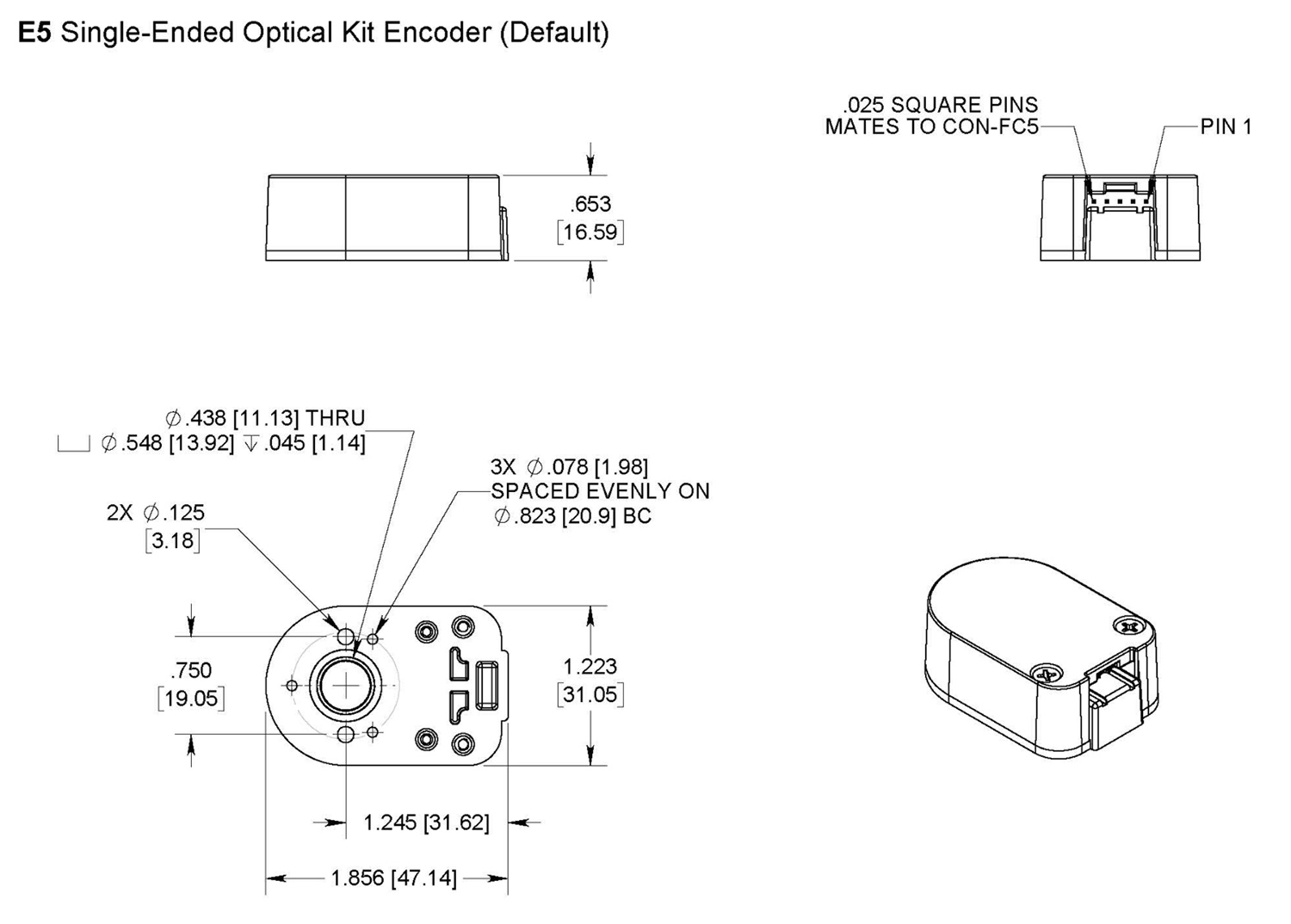

Encoder Kits

Motor encoders, which are sometimes referred to as kit encoders, encoder kits, or modular encoders, are designed for easy installation to a motor with standard bolt hole patterns. Many motor manufacturers provide motors with motor encoders already installed on them—some refer to those as encoder motor sets.

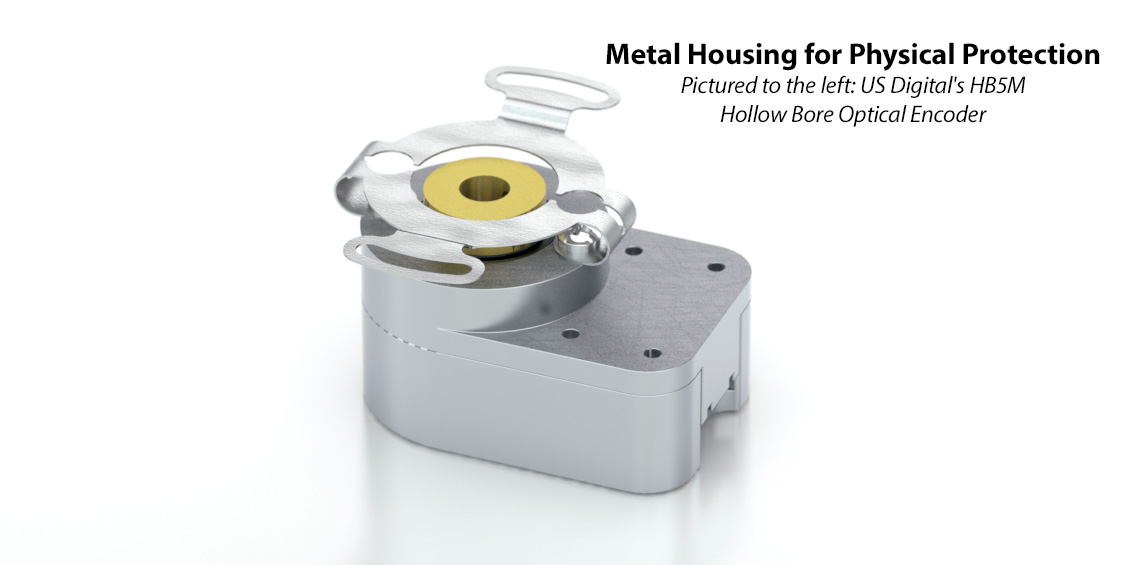

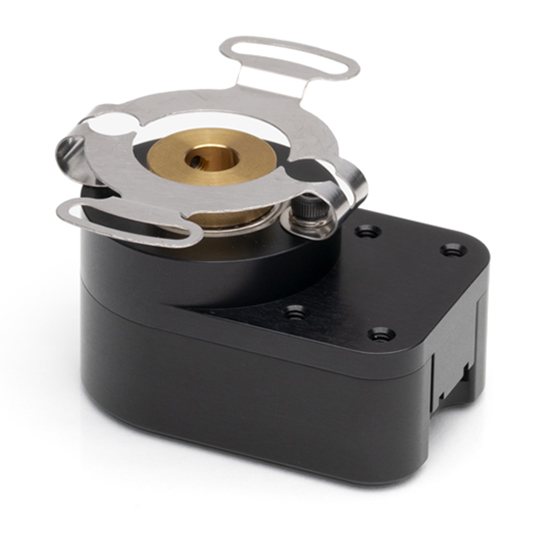

Hollow bore

Also known as hollow shaft encoders, they mount directly to motors, but as they have their own bearing, a flexible coupler is required to tether the encoder base to the motor or other mounting surface. This encoder type is often used in an environment where it might be subjected to some abuse. Typical applications include use in manufacturing environments, dynamometers, and printing presses.





Conclusion

This is a high-level overview of motor encoders for a more detailed look, check out our white papers like this one, our corporate video, our educational videos, our Glossary, or our FAQ's. But, more importantly, if you need assistance choosing an encoder for your next project, we have a great team ready to assist you in any way you like.

Technical Support 360.397.9999 support@usdigital.com

Sales Support 360.260.2468  sales@usdigital.com

More in News

• Blog
• Events
• Press Releases

TIR is a measurement of shaft runout—deviation of a shaft from true circular rotation.

HEDL-5500, HEDL-5505, HEDL-5540, HEDL-5545, HEDL-5600, HEDL-5605, HEDL-5640, HEDL-5645.

---

Related Content

• CA-C10-F-C10 10-Pin IDC Connector / 10-Pin IDC Connector

More in Support

• FAQS
• Ordering
• Resource Library

---

Related Content

• EC35 Optical Commutation Kit Encoder

More in Support

• FAQS
• Ordering
• Resource Library

HEDS-9000, HEDS-9040, HEDS-9100, HEDS-9140, HEDS-9200

---

More in Support

• FAQS
• Ordering
• Resource Library

HEDS-5500, HEDS-5505, HEDS-5540, HEDS-5545, HEDS-5600, HEDS-5605, HEDS-5640, HEDS-5645.

---

Related Content

• Avago Compatibility HEDL-5XXX

More in Support

• FAQS
• Ordering
• Resource Library

HEDM-5500, HEDM-5505, HEDM-5600, HEDM-5606.

---

Related Content

• E2 Optical Kit Encoder

More in Support

• FAQS
• Ordering
• Resource Library

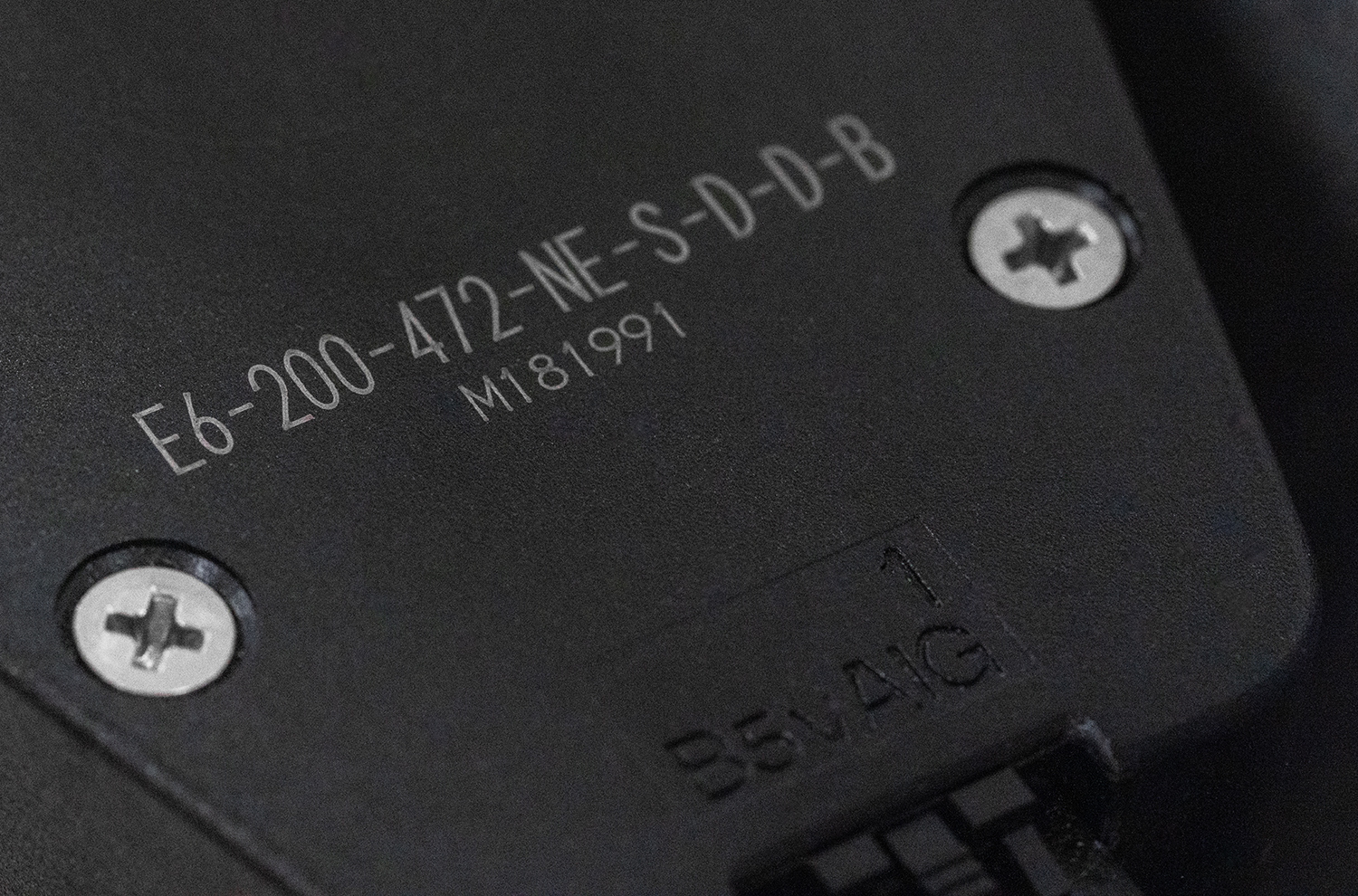

HEDL-6500, HEDL-6505, HEDL-6540, HEDL-6545.

---

Related Content

• CA-C10-F-C10 10-Pin IDC Connector / 10-Pin IDC Connector, Flat Cable
• E6 Optical Kit Encoder

More in Support

• FAQS
• Ordering
• Resource Library

If a picture is worth a thousand words, what is the value of a video? If you, like many engineers and technicians, are a visual learner, it is hard to put a price on that value. That is why US Digital invests heavily in video resources to make working with our products easier, faster, and more engaging.

Our team enjoys working directly with you to solve problems and support your success. But because we are only available during business hours, our video library plays an important role. These resources are available 24 hours a day, 365 days a year, giving you access to answers whenever you need them.

Over the years, we’ve built a growing library of videos designed to support you at every stage of your projects. These include educational videos that explain encoder fundamentals, assembly videos that walk through installation step by step, and product comparison videos that clarify differences between similar models. Instead of guessing which encoder is right or which mounting options are available, you can see the details clearly before making a decision.

We also produce practical how-to and troubleshooting videos that address common questions and real-world challenges. Whether it’s aligning an encoder, confirming resolution, or diagnosing a signal issue, these videos help reduce downtime and get your systems back up and running quickly. Our FAQ videos answer recurring questions in an engaging format, but your phone calls and emails are always welcome. Who knows, maybe your question will be the target of our next video.

Beyond technical support, our video library also includes “about us” content, which shows how we are really “about you”—customer-focused. Those videos introduce the people, processes, and values behind US Digital. We want you to know not just what we make, but our commitment to your success. And yes—one of our videos even went viral, reaching more than 75 million views, demonstrating that clear, engaging technical content can resonate far beyond our traditional audience.

By creating dozens of targeted, easy-to-follow videos, US Digital provides our customers with a wealth of information available with just a click. It’s one more way we focus on making things easier—before, during, and after the sale.

This is the third of several posts that demonstrate "making it easier" at US Digital is not just a slogan; it is who we are.

More in News

• Blog
• Events
• Press Releases

What type of applications call for an absolute encoder vs incremental? Let’s get into it.

Incremental encoders report relative movement. If that encoder has an Index, it can report shaft position in relation to the Index once the Index is found. Absolute encoders can report exact shaft position whenever they are powered. (If you’re looking for more information on the difference between absolute encoders and incremental ones, we wrote an entire blog post on the subject.)

If your application requires that you know the actual orientation of the shaft following any power cycle before movement is made, you’re going to need an absolute encoder. Why would that be? In some cases, even the slightest movement to find an Index could be harmful to the process being performed, the product being handled or possibly hazardous to the automated equipment. In other cases, your system doesn’t have the ability to find a home position.

Example use case: Using an absolute encoder to determine reel tension

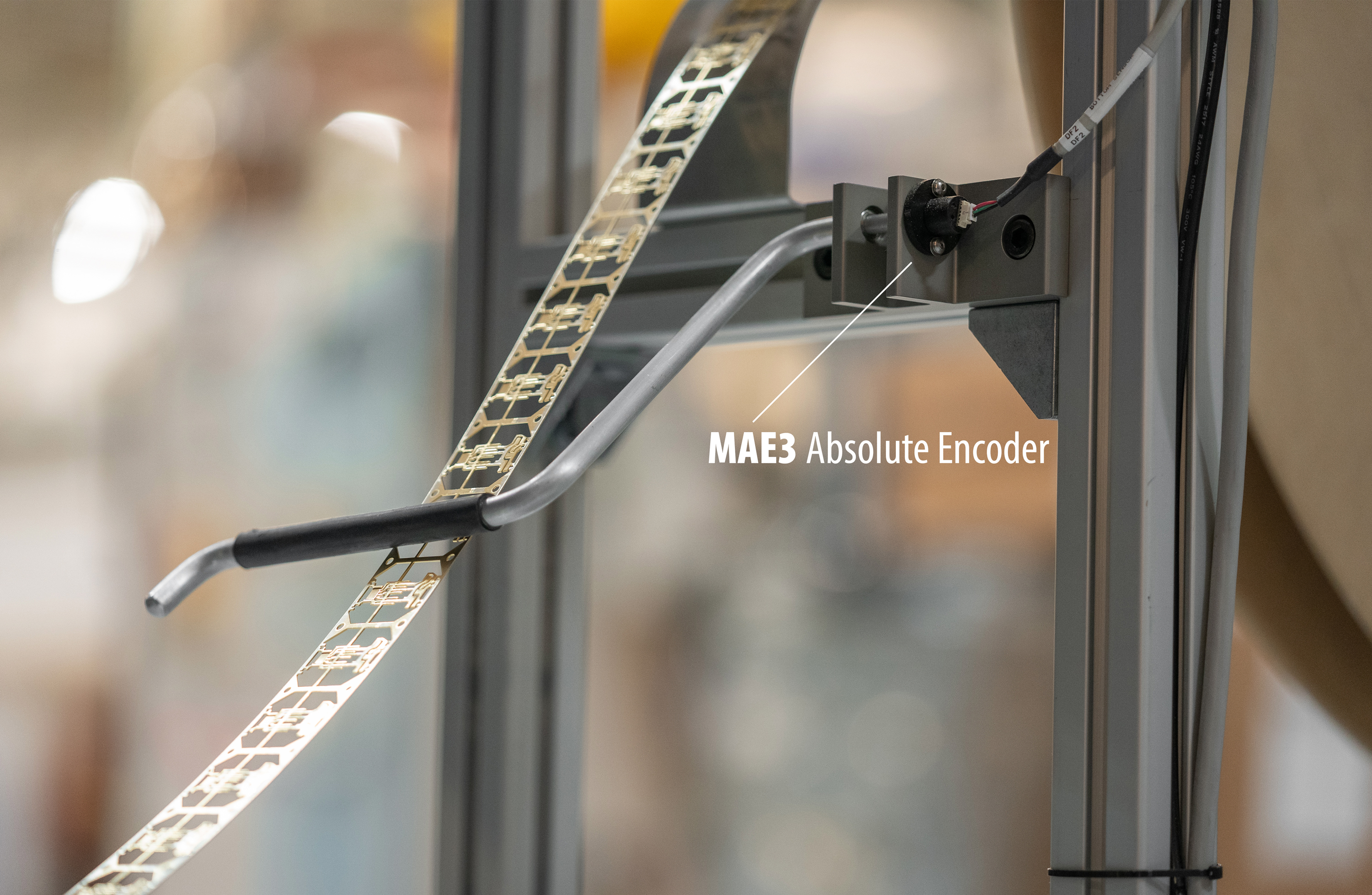

One of our engineers used our MAE3 absolute encoder to trigger a drive motor that unwinds a reel of stamped lead frames into an injection molding machine in our plant. How does it work?

A pivoting arm rests on the bare lead frame entering the molding machine (see photo above). The absolute encoder is attached to the axis of that pivot arm. When the arm hangs down vertically there is no tension and the absolute angle is set to zero.

Approximately every 30 seconds overmolded parts exit the mold as the next section of bare lead frame enters. The molding machine pulls in more of the bare lead frame causing tension to the incoming reel and the pivot arm to rise. The encoder is used by the system to quantify the absolute angular position with respect to the set zero position.

Whenever the pivot arm is raised to a predetermined angle range indicating tension, the system unspools more of the bare lead frame. If the arm is outside of the tension angular range, feeding stops.

Maintaining a proper feed rate is necessary to make sure that the lead frame is not being stretched or bent before being overmolded thus preventing damage to the equipment.

In this case our engineer used an absolute encoder because the arm itself isn’t motor driven and angles detected are with reference to a fixed zero angle. The absolute encoder mitigates the need to zero or return to a home position if there was a loss of power.

If your application is susceptible to the issues above, you’re going to want an absolute encoder. If not, you could use an incremental encoder with Index. In that case, when the encoder loses power, you’d just need the system to perform a home cycle to find Index again and then it could report its position in relationship to that Index.

Side note: You may even consider an incremental encoder with multiple Indices, which could limit the amount of turning the shaft would need to do to reach a known Index position. To learn more, be sure to reach out to us and ask about our custom solutions.

More in News

• Blog
• Events
• Press Releases

Vancouver, WA, October 31, 2013 - US Digital, U.S. manufacturer of motion control products, announced they have achieved the ISO 9001:2008 certification based on standards established by the international organization. US Digital received the certification from PRI Registrar, which involved a rigorous audit of business processes, manufacturing processes and products. Scope of Registration includes design, manufacturing, assembly and distribution of motion control products and accessories.

As part of the ISO certification process, US Digital implemented an ISO compliant Quality Management System to ensure commitment to customer satisfaction and strengthen performance through improving and streamlining processes.

"US Digital's commitment to the ISO 9001:2008 framework demonstrates quality is our priority, from products and processes to customer support and delivery. Our customers can be confident that we will work to exceed their quality expectations and continue to analyze and improve our processes," said Bob Willoughby, President of US Digital.

ISO 9001:2008 Certificate

More in News

• Blog
• Events
• Press Releases

Company Links

• About Us
• Careers
• Contact Details
• Distributors
• Resource Integrity
• Legal
• Quality and Compliance
• Videos

What is the best way to clean rotary encoder disks or linear encoder strips of small dust and particles? When it comes to our optical and transmissive encoders, the best option is probably to actually just leave things alone. Why is that? Our encoder modules use an LED and phased array instead of a single photo detector. That means that small imperfections — the kinds that you would expect to see from everyday use and handling of encoders — typically just get averaged out by the array. Furthermore, our LEDs operate in the infrared spectrum, which means they're less susceptible to physical obstructions than visible light.

If you're dead set on trying to remove dust or particles, we have a few suggestions on how to do it correctly:

Don't use water or any type of liquid.

Most of our optical encoders are transmissive and the disks/linear strips are on a mylar material that is developed much like photography. Water and cleaners can actually damage the printing on the disk and create more problems than the dust, specks and minor scratches.

If you're going to use air, make sure it isn't compressed.

Compressed air, whether that be hooked up to an air compressor or the kind that comes in a can could potentially dislodge the encoder disk from its hub, and the resulting misalignment will create far more of an issue than you would have had with the specks.

The best way to take care of disks and strips is through prevention.

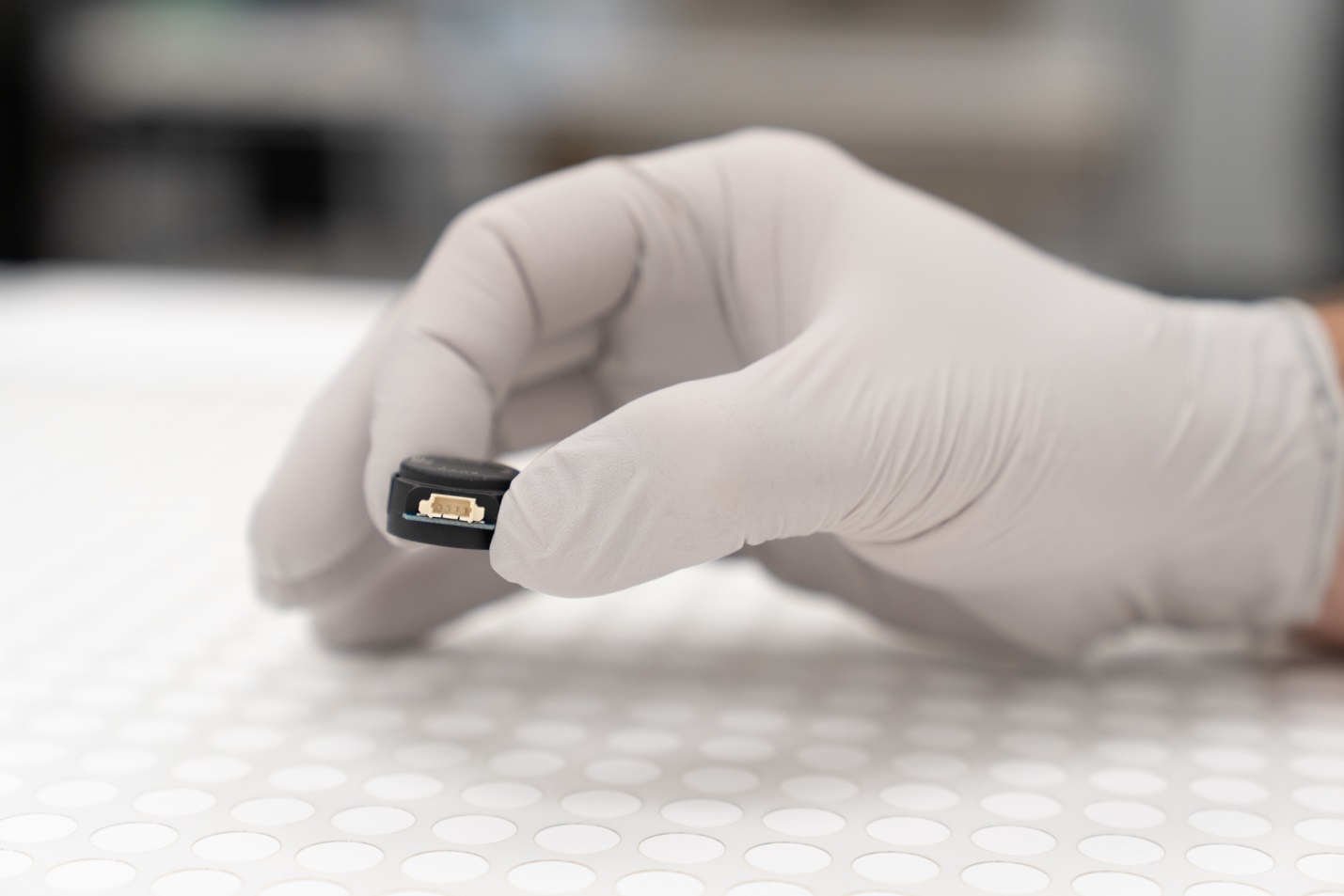

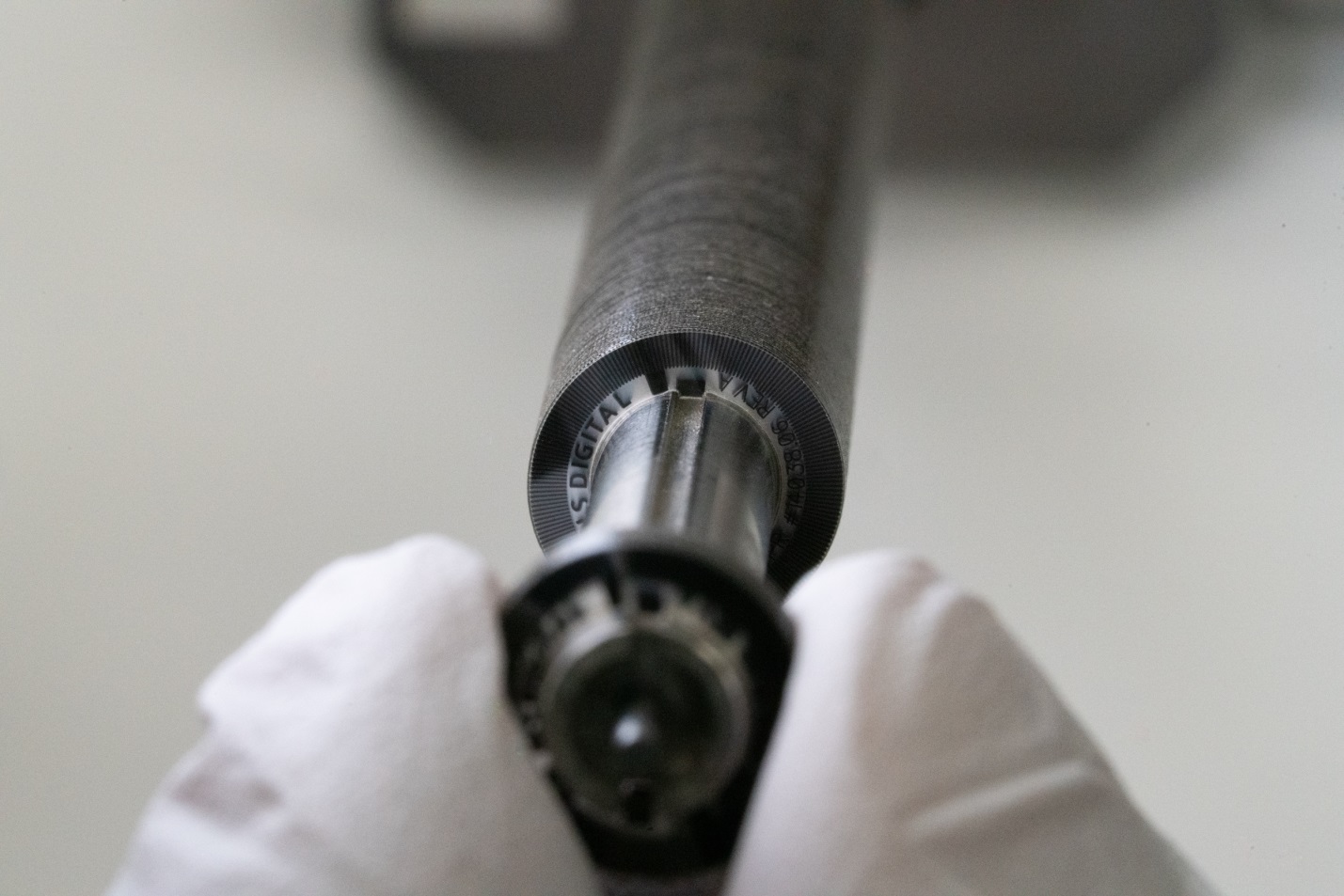

We always recommend that people wear gloves or finger cots during assembly to further protect the disks and strips. This is one of the best ways to prevent fingerprints and exposure to dust and other particulates.

All this being said, if you see dust, dirt, fingerprints or minor imperfections on your encoder disk and are concerned that there may be an issue with performance, you have two options:

First, you can test your encoder much like we did in the video above and make sure your waveforms are acceptable.

Second, you are always more than welcome to send us a photo of your encoder disk.

More in News

• Blog
• Events
• Press Releases

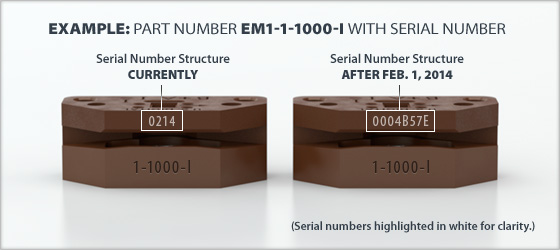

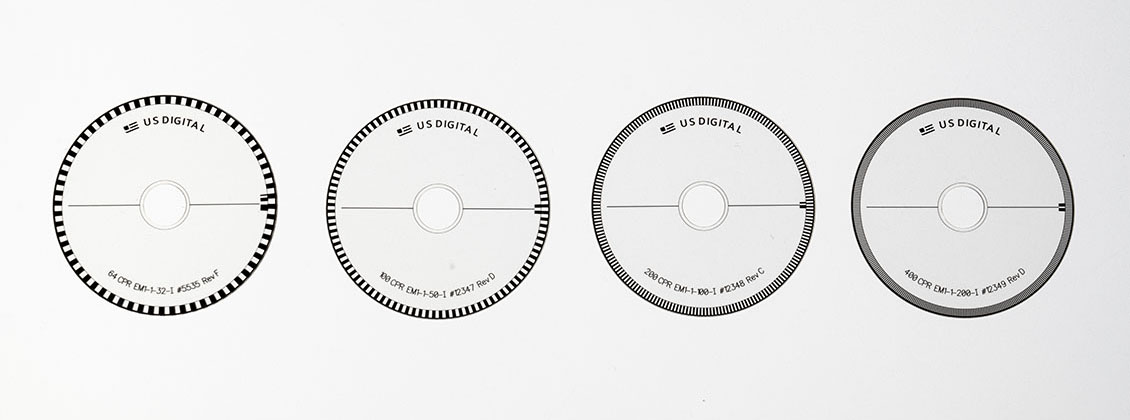

	1 in. Disk		2 in. Disk
CPR	No Index	Index	No Index	Index
32	EM1-1-32-N	--	--	--
50	EM1-1-50-N	EM1-1-50-I	--	--
64	--	--	EM1-1-32-N (1)	--
96	EM1-1-100-N	EM1-1-100-I	--	--
100	EM1-1-100-N	EM1-1-100-I	EM1-1-50-N (2)	EM1-1-50-I (2)
120	EM1-1-100-N	--	--	--
192	EM1-1-200-N	EM1-1-200-I	--	--
200	EM1-1-200-N	EM1-1-200-I	EM1-1-100-N (3)	EM1-1-100-I (3)
250	EM1-1-250-N	EM1-1-250-I	--	--
256	EM1-1-250-N	EM1-1-250-I	--	--
360	EM1-1-360-N	EM1-1-360-I	--	--
400	EM1-1-400-N	EM1-1-400-I	EM1-1-200-N (4)	EM1-1-200-I (4)
500	EM1-1-500-N	EM1-1-500-I	EM1-2-500-N	EM1-2-500-I
512	EM1-1-512-N	EM1-1-512-I	EM1-2-500-N	EM1-2-500-I
720	EM1-1-720-N	EM1-1-720-I	--	--
800	EM1-1-800-N	EM1-1-800-I	--	--
900	EM1-1-900-N	EM1-1-900-I	--	--
1,000	EM1-1-1000-N	EM1-1-1000-I	EM1-2-1000-N	EM1-2-1000-I
1,024	EM1-1-1024-N	EM1-1-1024-I	EM1-2-1024-N	EM1-2-1024-I
1,250	EM1-1-1250-N	EM1-1-1250-I	--	--
1,800	--	--	EM1-2-1800-N	EM1-2-1800-I
2,000	--	EM2-1-2000-I	EM1-2-2000-N	EM1-2-2000-I
2,048	--	EM2-1-2048-I	EM1-2-2048-N	EM1-2-2048-I
2,500	--	EM2-1-2500-I	EM1-2-2500-N	EM1-2-2500-I
3,600	--	--	--	EM2-2-3600-I
4,000	--	EM2-1-4000-I	--	EM2-2-4000-I
4,096	--	EM2-1-4096-I	--	EM2-2-4096-I
5,000	--	EM2-1-5000-I	--	EM2-2-5000-I
7,200	--	--	--	EM2-2-7200-I
8,000	--	--	--	EM2-2-8000-I
8,192	--	--	--	EM2-2-8192-I
10,000	--	--	--	EM2-2-10000-I
Please note the following... (1) US Digital's two-inch disk with 64 CPR uses the same EM1 module as the one-inch disk with 32 CPR. (2) US Digital's two-inch disk with 100 CPR uses the same EM1 module as the one-inch disk with 50 CPR. (3) US Digital's two-inch disk with 200 CPR uses the same EM1 module as the one-inch disk with 100 CPR. (4) US Digital's two-inch disk with 400 CPR uses the same EM1 module as the one-inch disk with 200 CPR.

Related Content

• EM1 Transmissive Optical Encoder Module
• EM2 Transmissive Optical Encoder Module
• DISK-1 1 in. Transmissive Rotary Encoder Disk
• DISK-2 2 in. Transmissive Rotary Encoder Disk

Robots, rocket ships and deep space sound may sound like parts of a work of Science Fiction, but for FIRST Robotics Team #2471 Team Mean Machine it’s just another year competing in one of the world’s largest robotics competitions.

In late December members of the team, which represents a handful of students from high schools in Clark County, Wa., visited US Digital to show off their 2019 robot and thank the company for its continued support.

The demonstration gave US Digital employees an opportunity to see first-hand how company products are used. (Be sure to check out the video at the top of this post to see the robot in action.) It’s also a great way for US Digital to support the innovators of tomorrow.

“Supporting FIRST is an investment in the people and businesses of the future,” US Digital COO Neal Donowitz said.“ Programs like this give students an opportunity to challenge themselves and build confidence while learning something new. That’s something they don’t get at home surfing the internet, watching TV or playing video games.”

The team’s robot, named Epsilon, was designed to attach hatch panels (large disks) to the outside of rockets (large wood columns) and then load cargo (large rubber balls) inside the rockets. The robot needed to be able to be controlled remotely or work autonomously for portions of the competition.

It might seem like a game, but it’s the kind of thing many of them will see in future careers at companies like US Digital.

“We don’t use people like robots, we give people robots to use,” US Digital Founder and CEO David Madore told the team. “The skills that you’re learning, they have real world applications in companies like this.”

After the demonstration, Madore gave students a tour of the production facility and talked about how STEM and problem solving skills they were learning through FIRST, would be of use in their future careers.

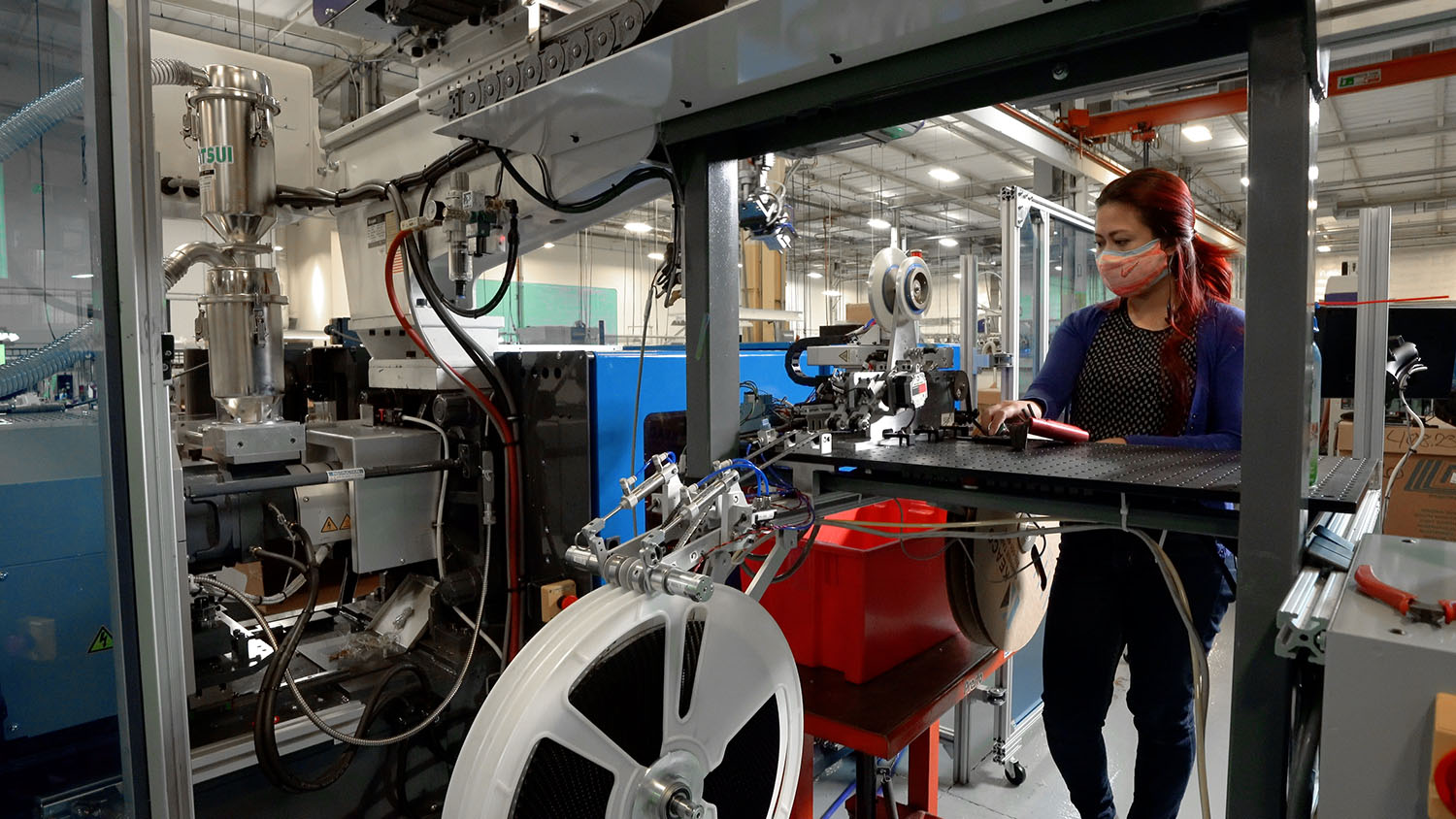

During the tour the team learned about injection molding, 3D printing and how US Digital uses automation to enhance its manufacturing processes. All of those are things the team has been learning about in the FIRST program.

“It’s super cool to see that applied in the real world and how we might use it,” Team Mean Machine Treasurer Jacob said after the tour.

US Digital is a proud supporter of FRC #2471, as well as several other teams around the United States and the FIRST Robotics Program.

More in News

• Blog
• Events
• Press Releases

So far in this blog we've written about encoders that are moved by something else. They're attached to a motor shaft, or a linear actuator, or conveyor belt. Their job is to report their position as they're moved by an external force; other than that, they're just along for the ride.

Well, sometimes - the encoder is the ride! Sometimes the encoder moves first, and everything else reacts to what the encoder does. In this blog post, we'll be writing about those times. We'll discuss some existing applications, and consider possibilities for new applications.

Human Machine Interface (HMI)

When do encoders take control? Here's a prime situation: a system needs input about what it should do. That input often comes from a human. At the Human Machine Interface (HMI), there are many ways for the input to be entered: computer keyboard, touch screen… but for certain things, nothing beats a control knob. And attached to that knob, the part that rotates when you turn the knob? An encoder.

Two quick examples. You're driving in your car, and want to turn up the music. What's the best way? Type in a command on a keyboard? Search for a 'button' on a touch screen? Of course not! It's much better to reach over, grab the volume knob and twist it till cars near you start to vibrate. You can probably even do that without taking your eyes off the road.

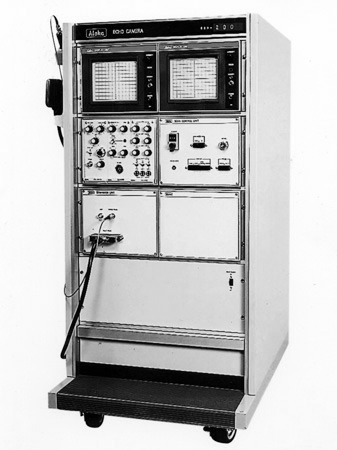

Another example: consider an ultrasound technician in a hospital, conducting an exam. One rubber-gloved hand presses a probe against the patient, the other gloved hand reaches to adjust a setting on the machine. Again, keyboard or touch screen wouldn't work. It's a knob the technician needs, and if the machine is well designed, that's what will be there.

What about Potentiometers?

You might be saying, "Wait, those control knobs you're talking about, aren't they just potentiometers?" In the past, you'd be right; and many devices still use 'pots', but encoders have made potentiometers obsolete in many areas. Pots have problems: they're electrically noisy, they have parts that corrode and wear out, they're analog, and in most cases they're limited to one turn. Encoders don't have any of those limitations, plus they can do things potentiometers never dreamed of.

Broad Range of Applications

Here's a quick survey of places where you might find an encoder driving a system. Let's start with this fellow.

If this old salt were to helm a ship in modern times, he could be turning an encoder to steer the ship instead of a rusty old wheel; and he'd probably be doing it from a comfortable, enclosed command bridge, too, with lots of other encoders on the control panel.

More applications where the encoder moves first, and the system follows:

• Power plant control rooms and large, complex machines
• Medical devices: imaging equipment, patient monitors, ventilators
• Test and measuring equipment that requires high precision

• Stage lighting controls, sound equipment and recording studio consoles
• Avionics systems, navigation devices, and radio communication systems
• Antenna aiming systems, satellite dish alignment controls

Although they may not realize it, many people have firsthand experience using encoders every day–when they're driving their cars. Thanks to encoders, we've gone from this:

To this:

Automotive entertainment systems and climate controls are particularly well suited for using encoders as input devices. Almost every auto manufacturer has replaced their potentiometers and mechanical sliders with encoders.

If Fingers Turn the Encoder

Question: Is it always better to have the least possible amount of friction (or drag) in an encoder shaft?

Answer: No! Not if you're going to turn the encoder with your fingers.

When you use an encoder as an input device, the way that shaft rotation feels to your fingers is very important. The control knob should provide a comfortable feeling of touch, and if there's zero drag–as would be the case with a ball bearing encoder, for example–then the control just won't feel right.

Manufacturers intentionally design tactile feedback into their products. Using detents–that clicking feeling as the knob turns–is one familiar method. An even simpler method is to use the right type of lubrication.

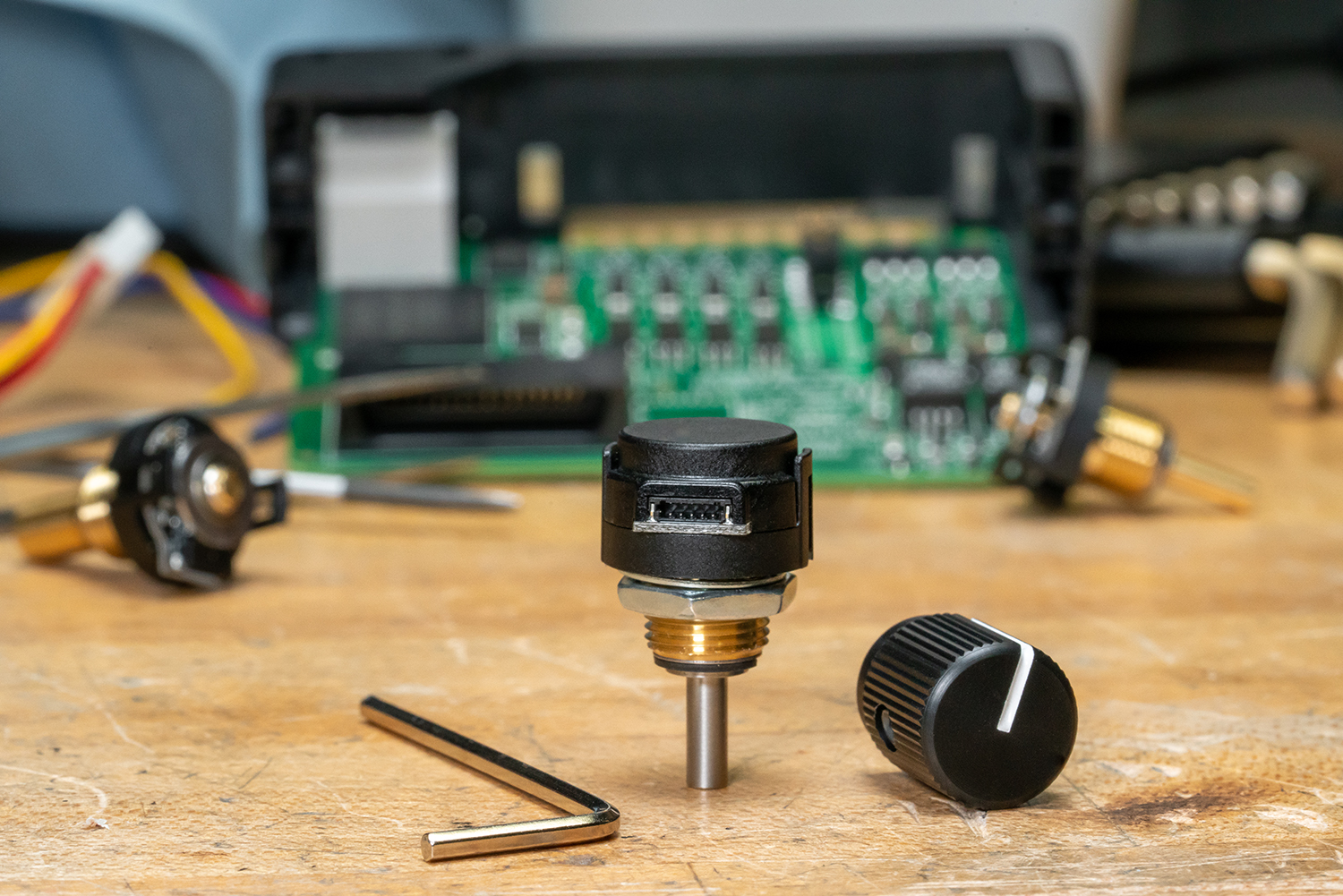

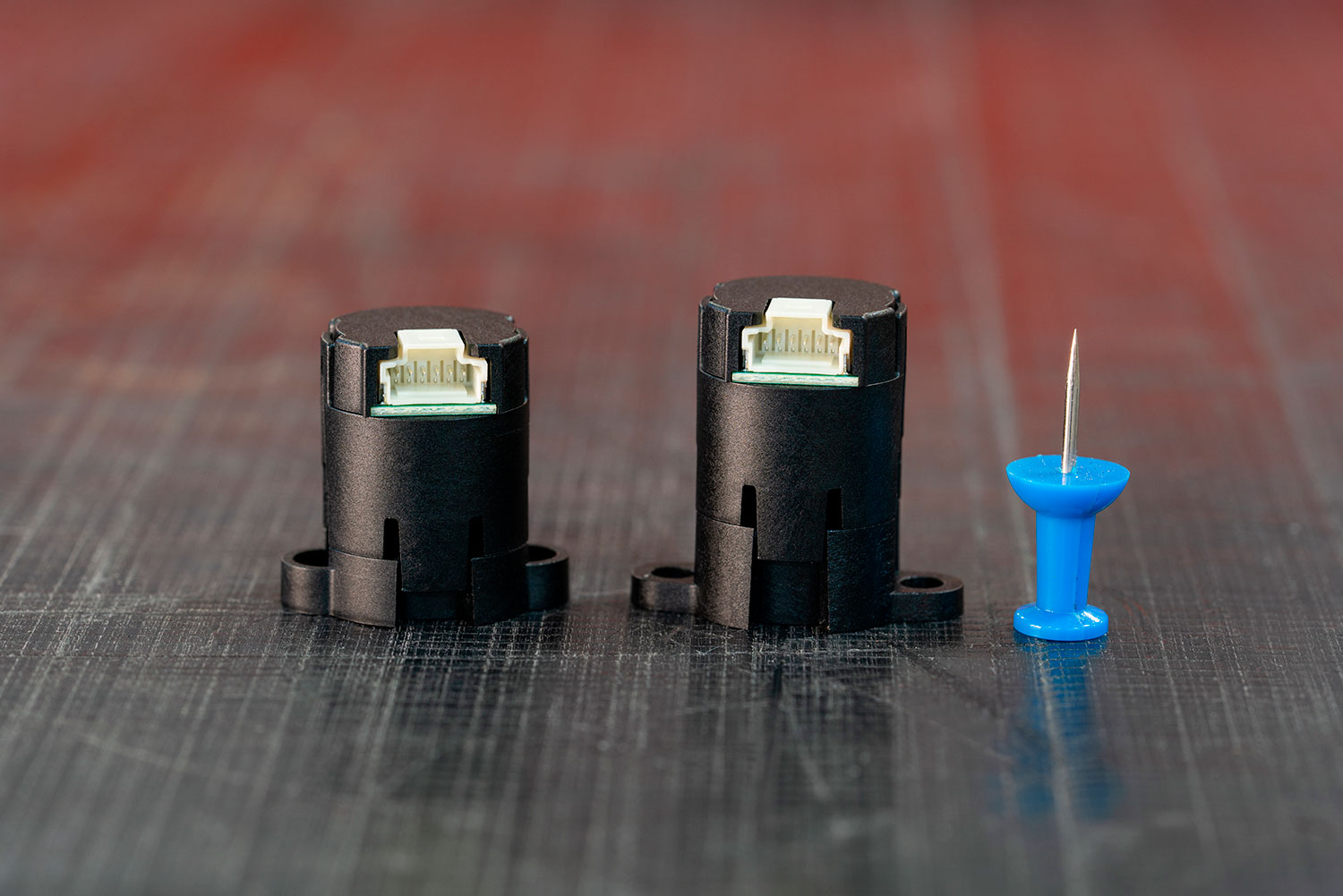

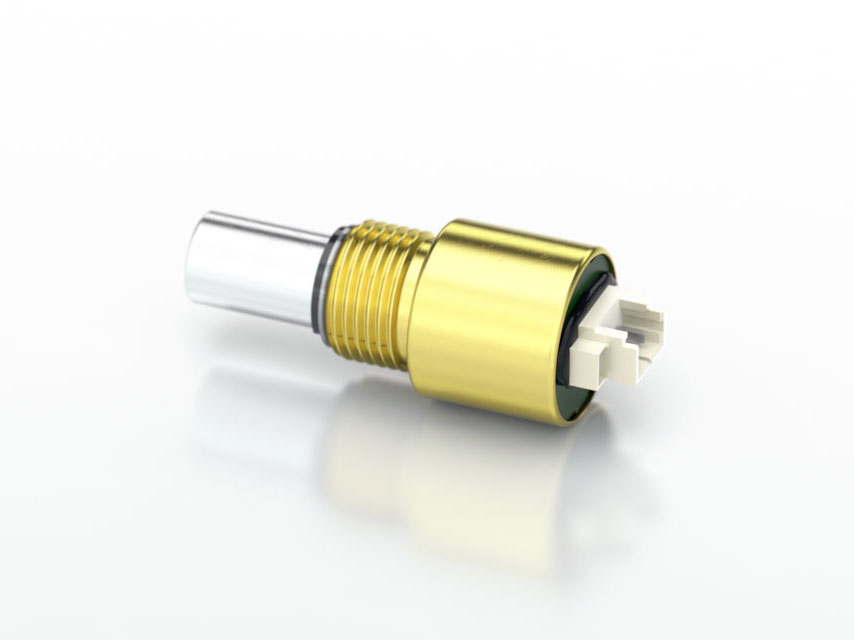

Here's US Digital’s miniature magnetic absolute encoder. It's a very popular model for panel mount, human interface applications.

In the specifications for this encoder, the manufacturer explains, "Three shaft torque versions are available: high torque; low torque; and ball bearing." (By torque, they mean the amount of drag present.) The high and low torque versions have a stainless steel shaft and lubricated brass bushing. The ball bearing version has a brass shaft and precision ball bearings.

The lubrication matters.

When you order this encoder, the manufacturer can vary the lubrication, based on how you intend to turn the encoder:

Turn Encoder by:	Specify this Option:	Lubrication:	"Feel"
Fingers at low RPM	"High Torque" Version (D)	Viscous gel	Most Drag
Motor at low RPM	"Low Torque" Version (N)	Grease	Lighter Drag
Motor at high RPM	"Ball Bearing" Version(B)	None needed	Least Drag

This is an important point: Usually we try to eliminate friction and drag. But if you plan to turn an encoder with your fingers, make sure you order the encoder version that has more drag built into it. You probably do not want a ball bearing encoder. (Unless you're making a spinner knob.)

As an added benefit, the increased drag will help prevent unintentional adjustment. (Just in case you, like us, are sometimes careless with elbows and knees. Ouch!)

Possibilities

Once you decide to use an encoder as an input device, a world of new applications opens up. You can do things with an encoder that you just can't do with a potentiometer.

Fast and Far - your data acquisition system can log not only position data from the encoder, but also rate information. If a user turns the encoder knob rapidly, the controller can deduce, "They must want to go far; let's speed everything up," and get the user to the destination faster. Then when the user slows down: "Ah ha! We're close to the end. Let's reduce speed, for fine positioning."

Scale it Down - suppose you want to design a machine for micro-surgery, a device that could "sew stitches on the skin of a grape." If you use encoders as inputs from your surgeon's fingers, your motion controller can scale down the surgeon's full-size hand motions, and appropriately control tiny micro-instruments.

Scale it Up - at the other extreme of size, encoders could send an operator's arm and hand motions to a controller, which could then scale up the information and control a large robotic arm to stack crushed cars in a junkyard, or unload containers from a ship. Science fiction? Perhaps; but who knows for how long?

Teachability - ordinarily when a device like a robotic arm is operating, motors move the arm, while encoders report the arm's positions. But how does a robot learn where to move in the first place? You can reverse the process, and use the encoders as teaching inputs. Shut off power to the arm's motors to reduce torque, and then have a human operator move the arm from one desired position to the next. Data log the positions and paths, and use that information to teach the robot its moves.

We hope this post has given you some ideas about how and where to use encoders.

Sources:

• Ancient mariner; ship command bridge; sound amplifier: pixabay.com
• Antique car radio: Photo by Daniel von Appen on Unsplash
• Modern car radio: Photo by Mpho Mojapelo on Unsplash

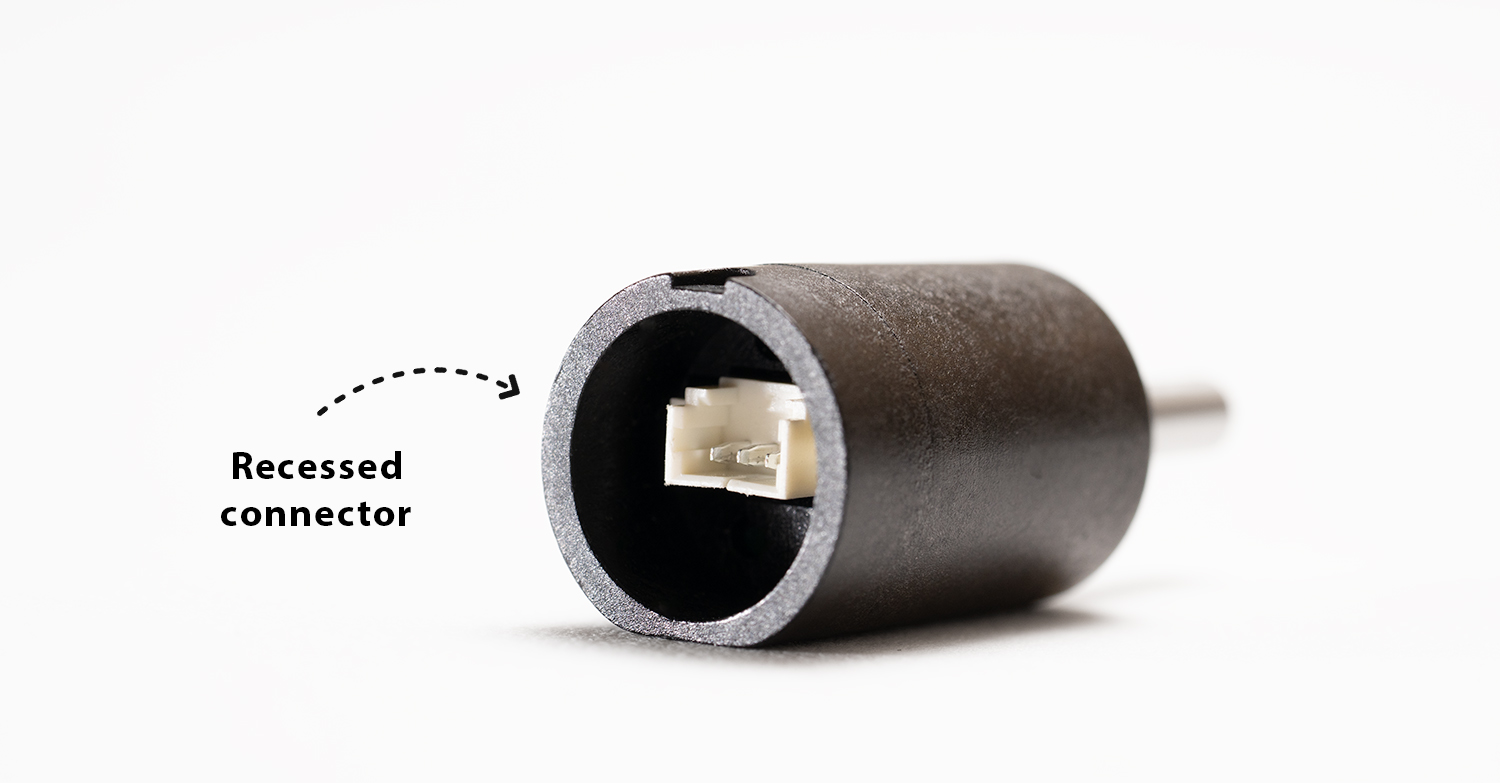

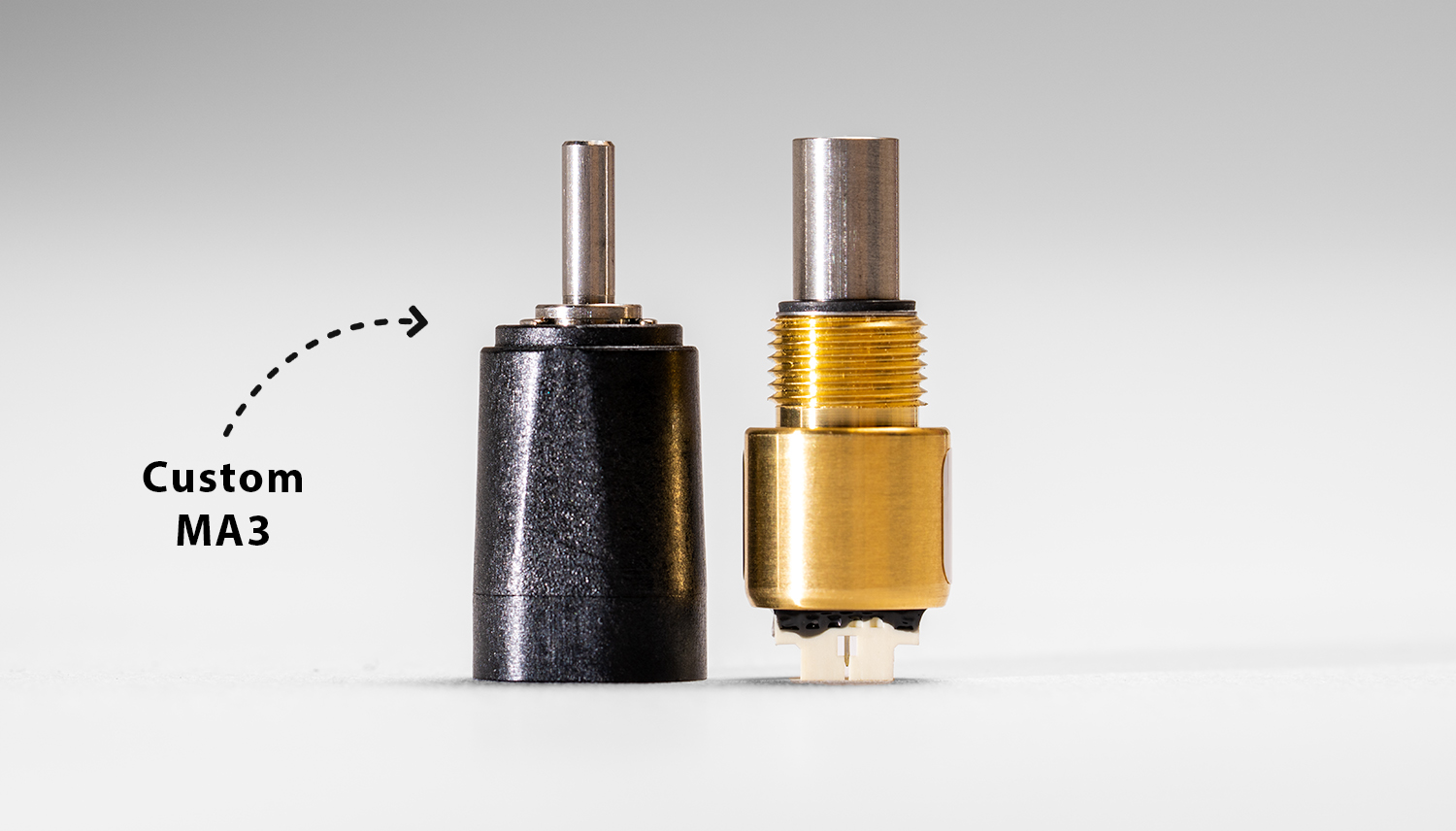

• Magnetic encoder: US Digital Miniature Absolute Magnetic Shaft Encoder Model MA3

More in News

• Blog
• Events
• Press Releases

In this world three things are certain: death, taxes and electrical noise -- to paraphrase Benjamin Franklin.

Electrical noise can wreak havoc by injecting false signals onto encoder lines, or by overwhelming real signals entirely. It’s often intermittent, which can make diagnosing and fixing it a nightmare. But if you use a few simple techniques you can drastically reduce electrical noise so that it doesn’t cause problems for the transmission of the signals from your encoder.

Avoid EMI by using twisted pair cables instead of straight wires

If you use long, straight wires for your encoder signal lines, the wires can act as antennas and receive unwanted electromagnetic interference from longer wavelengths—the ones which cause the most trouble. If you shorten the ‘antennas’ less interfering energy is received.

Fortunately, there’s an easy way to ‘shorten the antenna length’ of signal-carrying wires: you can twist them together. Each section between locations where the wires cross becomes a very short antenna, tuned for short wavelengths where much less energy is available.

Twisted pair wiring will pick up much less noise than straight wires of the same length. Inductive coupling, a form of EMI that relies on loops to transmit noise from one wire to another, is also lessened because the loop area only extends between the sites where the wires cross.

Here are some tips for using twisted pair cables with encoders:

• Keep paired encoder outputs, e.g. A/A-, in the same cable pair. This minimizes crosstalk between adjacent signal lines: A/A- won’t show up on the B/B- signal lines, for example.
• Keep loops tight against each other, to minimize loop area where inductive and magnetic coupling could occur.
• You don’t have to do the twisting yourself! Buy premade twisted pair cables, which are available with color-coded pairs already twisted together, and with various quantities of pairs per cable.

Use differential output in noisy environments or for long cable runs

Incremental encoders are often available with two types of outputs:

• Single-ended outputs use one wire for each output—this is the most common output type
• Differential outputs convert each output into two complementary signals, carried on a pair of wires

Of the two, differential outputs offer much better noise immunity.

With differential outputs, a differential line driver on each encoder output channel converts the output to two complementary signals, mirror images of each other. At the controller end, a differential line receiver compares the voltage difference between the two signals. Any noise injected onto the two wires—EMI transmitted by an arc welder, for example—will move the voltage on both of them in the same direction. This is known as common mode noise, and can be canceled out by the differential line receiver.

Here are some tips for using an encoder with differential outputs:

• Use twisted pair cables for your differential outputs
• Make sure paired encoder outputs are on the same twisted cable pair
• Keep twisted pair loops tight against each other, to minimize loop area for inductive coupling

Use shielding to protect your encoder signal from EMI

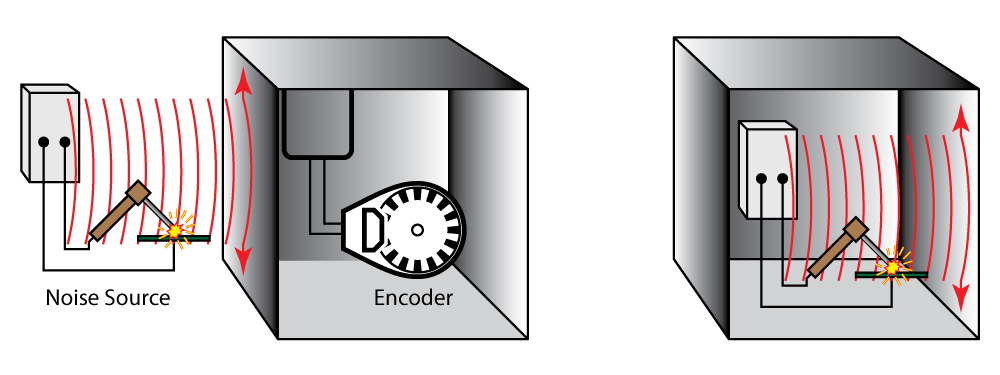

If sensitive equipment is placed inside a Faraday shield, the enclosure will keep that equipment from being bombarded by EMI. It also works in the other direction: if noisy equipment is placed inside a Faraday shield (think equipment cabinet), the EMI from the noisy equipment can’t escape to cause trouble for sensitive devices.

You can use cables and equipment that act like Faraday shields to help control EMI and electrical noise.

Shielded cables are available with shields made from metal foil, braided conductors, or a combination of both. Use shielded cables to keep EMI away from your sensitive encoder signal lines. You can also use shielded cables for your noisy equipment wiring—the shielding can keep EMI contained within the cable so it doesn’t cause problems elsewhere in the system.

Metal conduit can be a very effective shield. EMI from electrically noisy equipment can be contained when wiring is run inside conduit. If sensitive signal lines are placed inside their own conduit, the conduit can block EMI from interfering with the signal lines.

Metal equipment enclosures can provide a shield to keep EMI inside, so that it doesn’t interfere with external devices; or to keep EMI out, when sensitive equipment is located inside the shielded equipment cabinet.

Here are some tips for using shielding:

• Use shielded cables for sensitive signal lines, and for noisy equipment as well
• Use conduit when possible, especially for noisy power lines
• Use equipment cabinets made from conductive materials

In all of these cases, the shielding will work best if it is properly grounded.

Grounding can help mitigate impacts of EMI

Proper grounding can provide a low resistance path to ground, which leads EMI and electrical noise away from your equipment and dissipates it in the grounding system.

You can direct the path of unwanted noise and show it where to go by using good grounding techniques. One of the most important things to do is to connect the shield of the encoder cable to a single ground point.

If you have multiple grounds in your system, theoretically they should all be at the same voltage. But in real systems, they may differ; if so, current can flow from one point to another—sometimes through your equipment, which can cause electrical noise and problems.

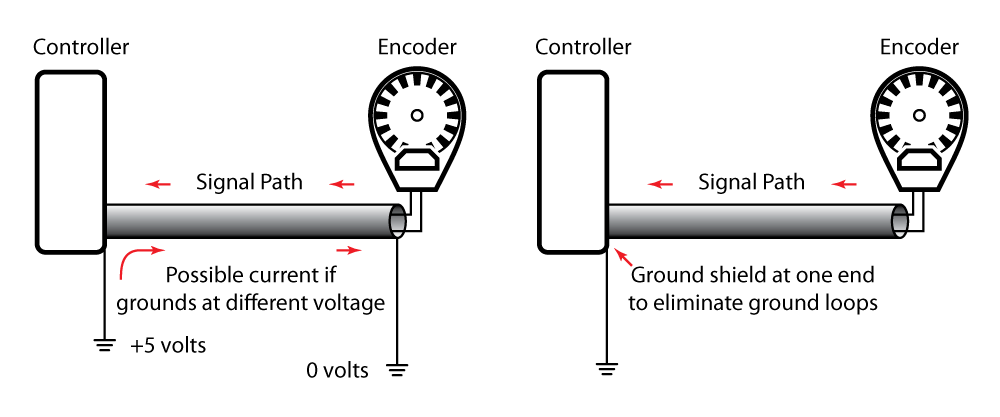

Here is a tip for grounding the shield of an encoder cable: Connect the encoder cable shield to ground at one end only, typically at the controller end.

Grounding is a complex topic, and affects everything from the power grid down to the smallest components in a microprocessor. If you spend some time to get it right for your system, good grounding will help diminish electrical noise problems.

Electrical noise happens but with these tips, you'll be ready

Electrical noise happens. It’s often impossible to eliminate it entirely, but it can be reduced. The techniques we’ve presented are a first line of defense; they can help lower noise to a level where it doesn’t cause problems for the signals from your encoder.

For serious electrical noise situations, there’s more that can be done, such as the use of filters, ferrite absorbers, conductive sprays, P-clips, capacitors, MOVs, surge suppressors, special grounding techniques and a host of other methods. Should those refinements be necessary in your system, we hope that as you investigate them, this post gives you an understanding of why they might work.
