CA-DF5-SH-NC 5-Pin DF52 Connector / Unterminated, Shielded Cable

CA-DF5-SH-NC Features

See more info below

Configure the CA-DF5-SH-NC

CA-DF5-SH-NC Product Description

Restriction of Hazardous Substances

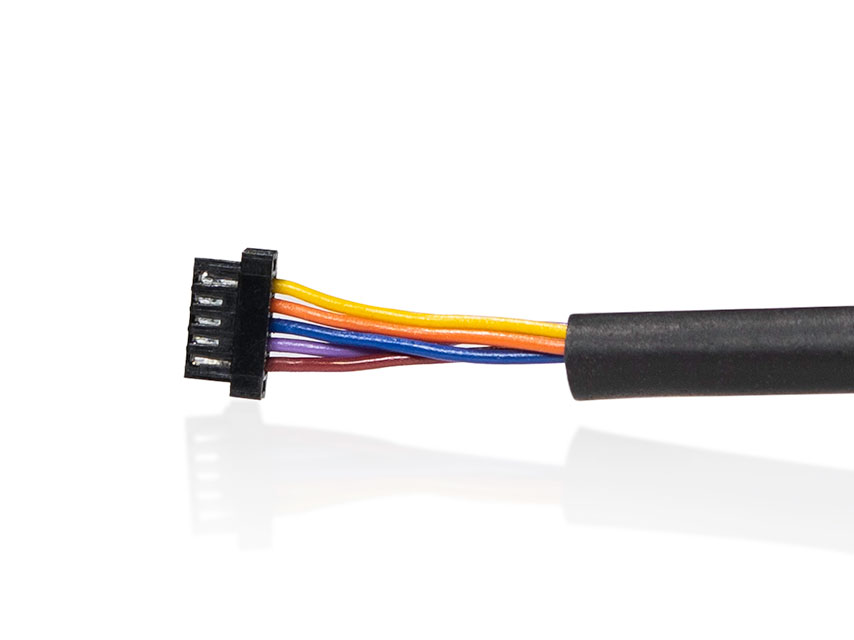

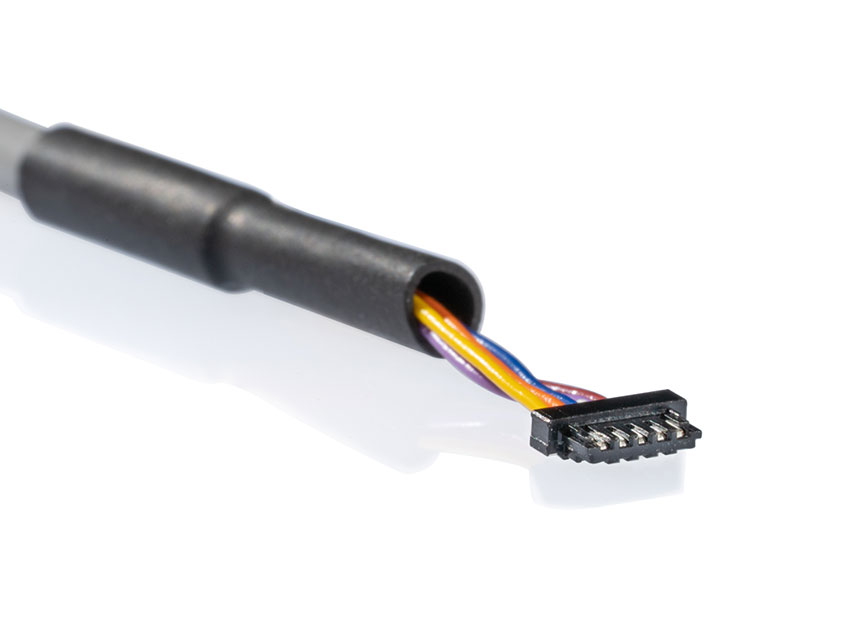

A 5-pin Hirose DF52 series, 0.8mm pitch plug connector on one end of a 5-conductor round shielded 30 AWG cable. This cable has a temperature range of -40C to 105C.

WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN-OUT

PIN DESCRIPTION COLOR
1 Ground Brown
2 Index Violet
3 A channel Blue
4 +5VDC power Orange
5 B channel Yellow
