CA-C10-SH-C10 Product Description

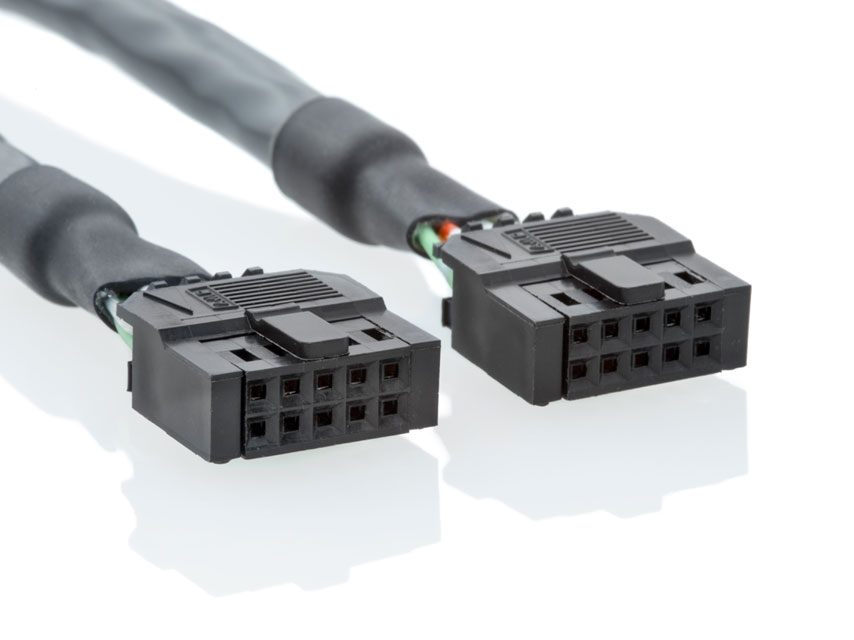

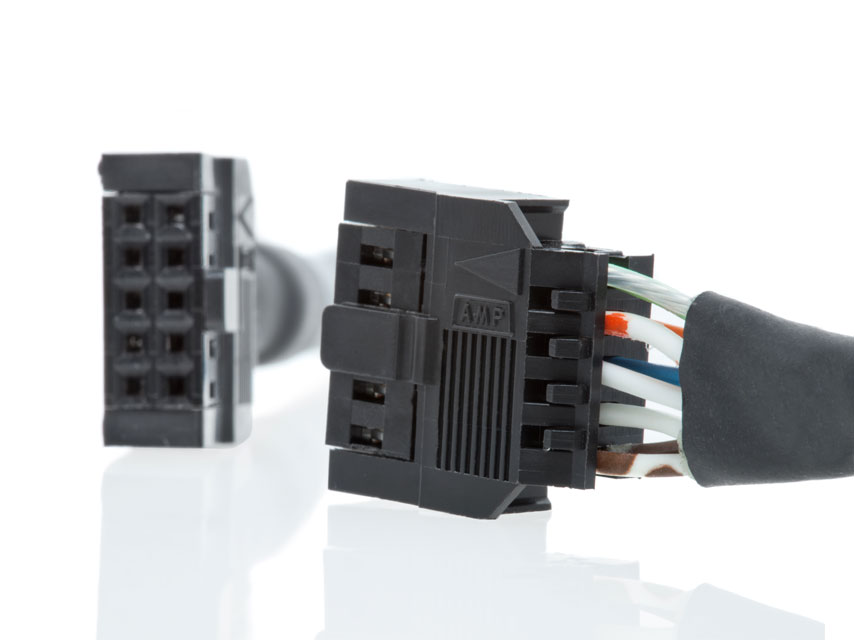

10-pin female standard (friction, not latching) connectors on both ends of an 8-conductor round shielded twisted pair 24 AWG cable.
WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.
Product Specifications

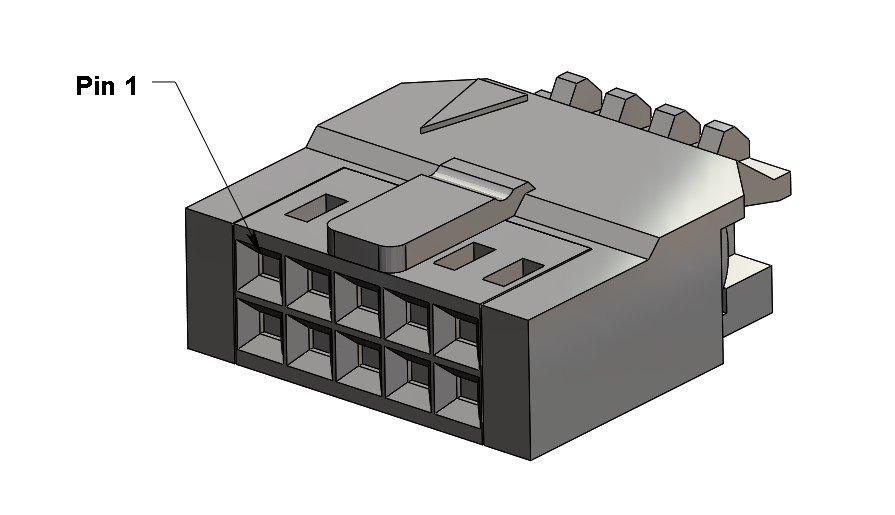

PIN-OUT
| PIN |
DESCRIPTION |
COLOR |
| 1 |
Ground |
Drain
(connected on one end) |
| 2 |
Ground |
Green / White Stripe |
| 3 |
I- channel |
White / Orange Stripe |
| 4 |
I+ channel |
Orange / White Stripe |
| 5 |
A- channel |
White / Blue Stripe |
| 6 |
A+ channel |
Blue / White Stripe |
| 7 |
Power |
White / Green Stripe |
| 8 |
- |
- |
| 9 |
B- channel |
White / Brown Stripe |
| 10 |
B+ channel |
Brown / White Stripe |
Additional Information
Product Notes
-
US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.
