CA-LC5-SH-NC 5-Pin Locking Connector / Unterminated, Shielded Cable

CA-LC5-SH-NC Features

See more info below

Configure the CA-LC5-SH-NC

CA-LC5-SH-NC Product Description

Restriction of Hazardous Substances

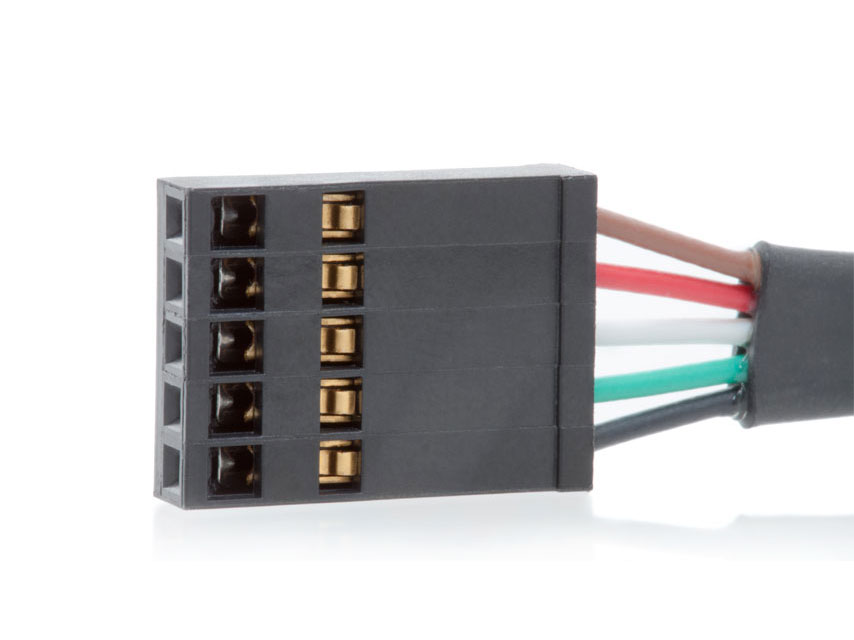

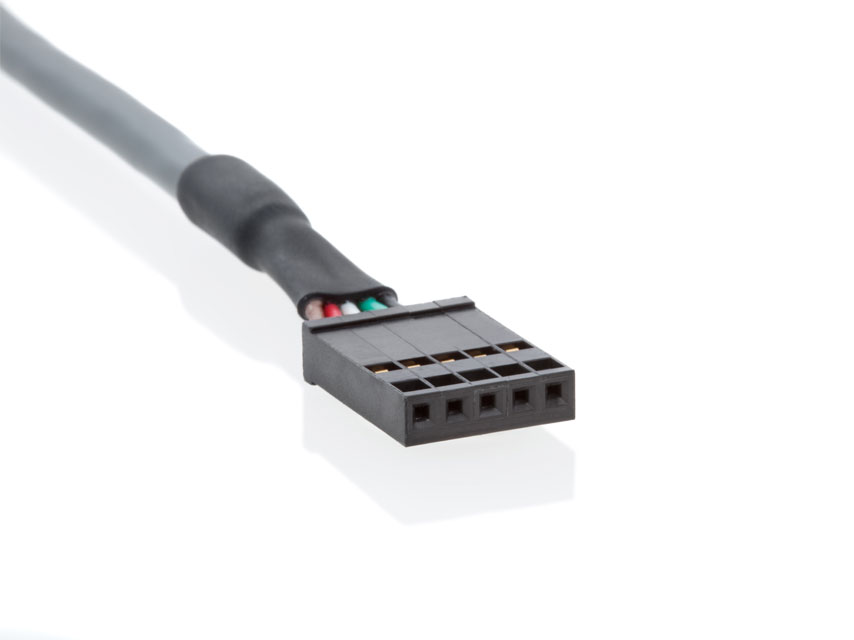

A 5-pin female locking connector on one end of a 5-conductor round shielded 24 AWG cable.

WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN-OUT

PIN DESCRIPTION COLOR
1 Ground Black
(drain connected on one end)
2 Index Green
3 A Channel White
4 +5VDC power Red
5 B Channel Brown

Additional Information

Product Notes

  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.

Datasheets

Product Configurator

For pricing, this product requires configuration.

Begin by completing either Option 1 or 2 below. Questions? Contact our support team.

Option 1: Configure the Product

Use the configuration tool to provide information regarding your product needs. Not sure what to do or need additional assistance? Our support team is here to help.

We recommend enabling Javascript when using the product configurator.

Option 2: Enter the Product Part Number Directly

If you know your product part number, enter it in the following field. The part number format looks something like this: E5-5000-394-IE-S-D-D-3...

Our products are not currently available for direct online purchase. To place an order please contact us directly with your part number.

For purchasing or volume discounts, please configure the part above, then use the completed part number and contact us!
