CA-MD6-SH-MD6 6-Pin Modular Connector / 6-Pin Modular Connector, Shielded Cable

CA-MD6-SH-MD6 Features

See more info below

Configure the CA-MD6-SH-MD6

CA-MD6-SH-MD6 Product Description

Restriction of Hazardous Substances

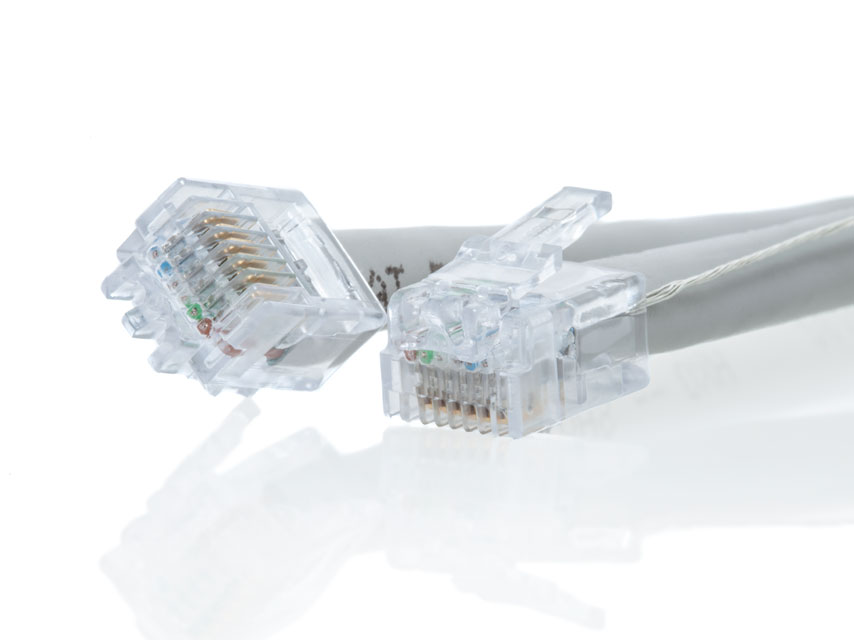

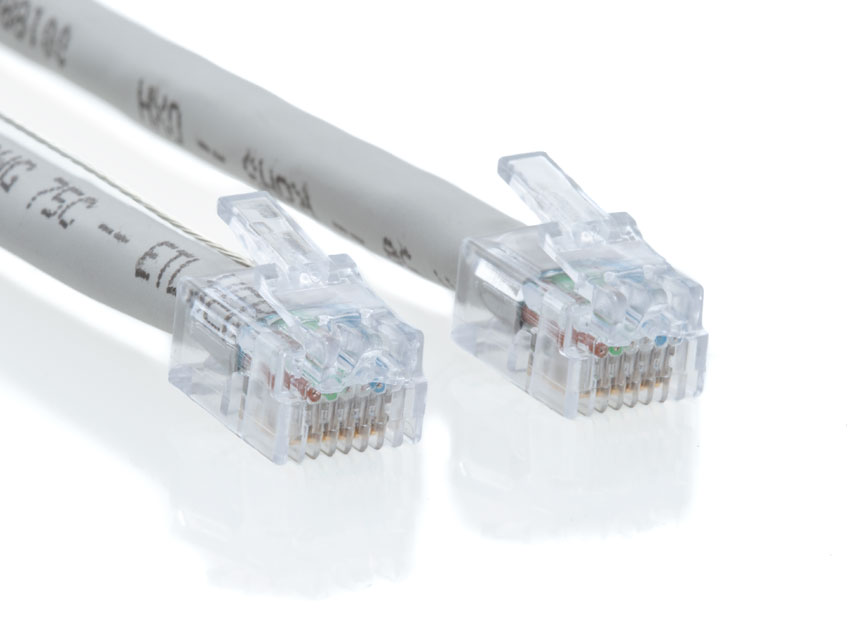

6-pin modular connectors on both ends of an 8-conductor shielded round twisted pair 26 AWG cable.

WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN-OUT

PIN SEI BUS COLOR
1 Ground Brown
2 Busy+ (active high, quiescent low)
Analog+		 Green
3 Busy- (active low, quiescent high)
Analog-		 White w/ Green Stripe
4 Power White w/ Brown Stripe
5 DataL (quiescent high in Mark condition) Blue
6 DataH (quiescent low in Mark condition) White w/ Blue Stripe
