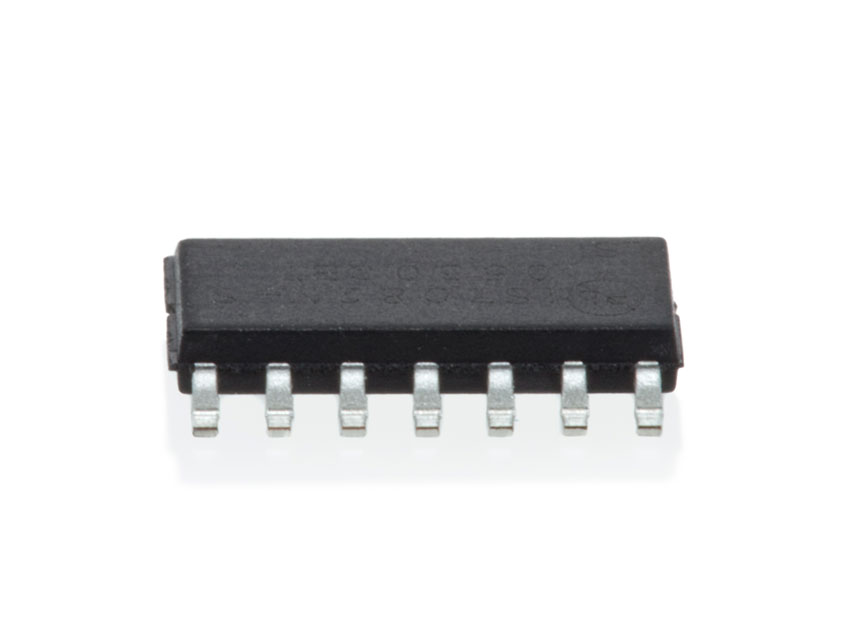

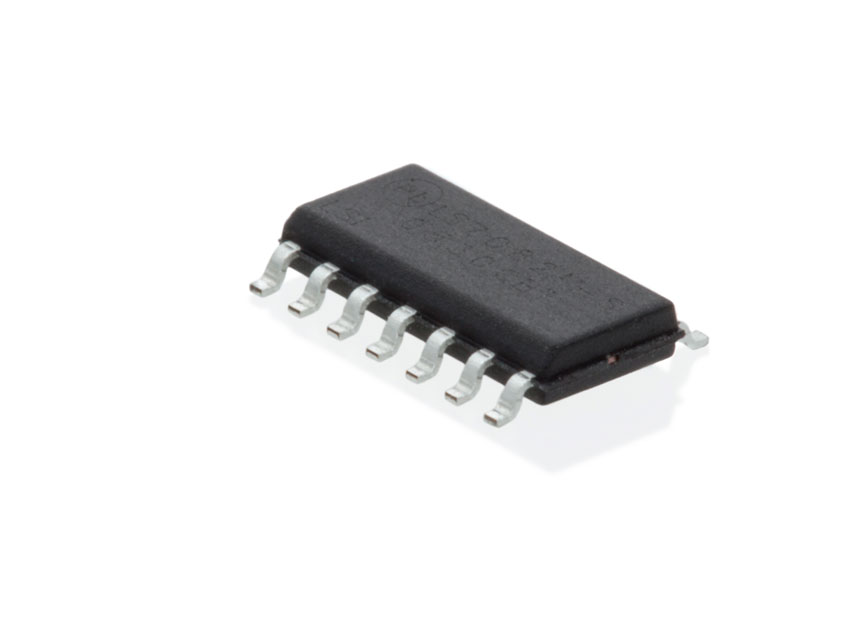

LS7082N-S Encoder to Counter Interface Chip

LS7082N-S Features

  • x1, x2, and x4 mode selection
  • Index input
  • TTL and CMOS compatible
  • Low current (micro-amps)
  • 14-pin SOIC package
  • No external clock required
  • Drive standard up/down counters

See more info below

Configure the LS7082N-S

LS7082N-S Product Description

Restriction of Hazardous Substances

The LSI Computer Systems LS7082N-S allows incremental shaft encoders to drive standard up/down counters. Connect the encoder quadrature outputs to the A and B inputs. The LS7082N-S outputs can connect directly to the up and down clock inputs of counters such as 74193 or 40193.

View the Manufacturer's Datasheet

Additional Information

Product Notes

  • Cables and connectors are not included and must be ordered separately.
  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.
