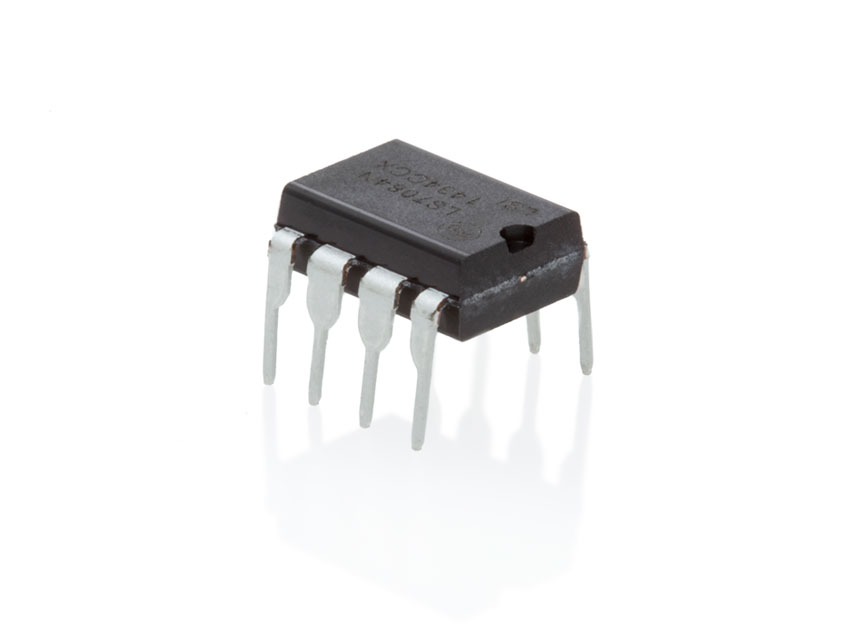

LS7084N Encoder to Counter Interface Chip

LS7084N Features

  • x1 or x4 resolution multiplication
  • TTL and CMOS compatible
  • Low current (micro-amps)
  • 8-pin DIP package
  • No external clocks required
  • Drive standard up/down counters
  • Monolithic CMOS

See more info below

Configure the LS7084N

LS7084N Product Description

Restriction of Hazardous Substances

This IC by LSI Computer Systems allows incremental shaft encoders to drive standard up/down counters. Connect the encoder quadrature outputs to the A and B inputs. The LS7084N outputs can connect directly to the Clock and Up/Down inputs of counters such as 4516 or 74169.

The next generation Encoder to Counter Interface chips are now available and recommended for new applications (see the LS7183N / LS7184N pages).

View the Manufacturer's Datasheet

Additional Information

Product Notes

  • Cables and connectors are not included and must be ordered separately.
  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.
