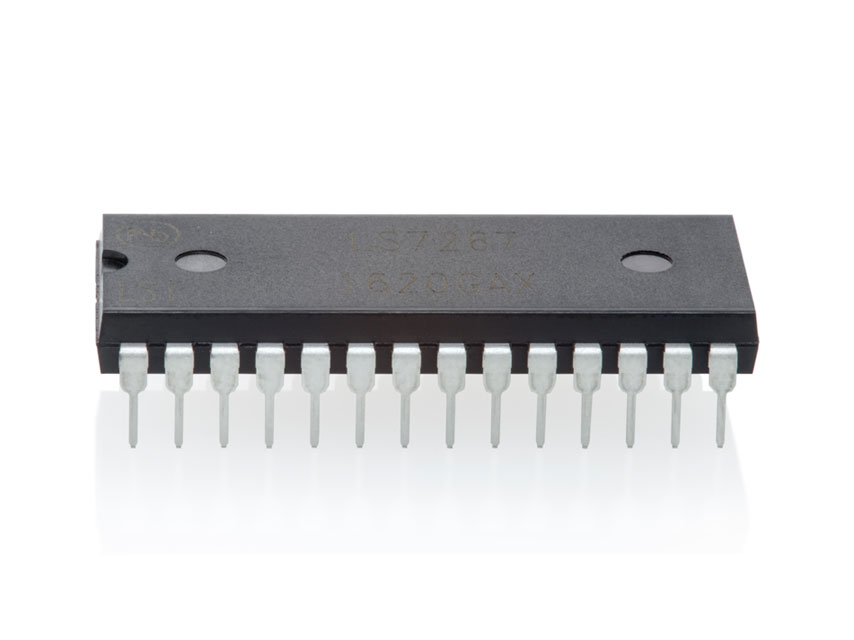

LS7267 24-BIT DUAL-AXIS Quadrature Counter

LS7267 Features

  • Dual 24-bit counters to support X and Y axes in motion control applications
  • Dual 24-bit comparators
  • Digital filtering of input quadrature clocks
  • Programmable 8-bit separate filter clock prescalers
  • Error flags for noise exceeding filter band width
  • Programmable Index Input and other programmable I/Os
  • Independent mode programmability for each axis
  • 28-pin DIP package

See more info below

Configure the LS7267

LS7267 Product Description

Restriction of Hazardous Substances

LS7267 is a CMOS IC useful in motion control applications. The two 24-bit multimode counters, registers, and logic enable a microprocessor to track the speed, direction, position, and index of one or two optical incremental encoders. In addition to an 8-bit data bus, programmable real-time inputs and outputs are provided for hardware-based control functions and status indication.

View the Manufacturer's Datasheet

Product Configurator

For pricing, this product requires configuration.

Begin by completing either Option 1 or 2 below. Questions? Contact our support team.

Option 1: Configure the Product

Use the configuration tool to provide information regarding your product needs. Not sure what to do or need additional assistance? Our support team is here to help.

We recommend enabling Javascript when using the product configurator.

Option 2: Enter the Product Part Number Directly

If you know your product part number, enter it in the following field. The part number format looks something like this: E5-5000-394-IE-S-D-D-3...

Our products are not currently available for direct online purchase. To place an order please contact us directly with your part number.

For purchasing or volume discounts, please configure the part above, then use the completed part number and contact us!
