LFLS7266R1 24-BIT DUAL-AXIS QUADRATURE COUNTER

LFLS7266R1 Features

  • Dual 24-bit counters to support X and Y axes in motion control applications
  • Dual 24-bit comparators
  • Digital filtering of input quadrature clocks
  • Programmable 8-bit separate filter clock prescalers
  • Error flags for noise exceeding filter band width
  • Programmable Index Input and other programmable I/Os
  • Independent mode programmability for each axis
  • 28-pin DIP package

See more info below

Configure the LFLS7266R1

The LFLS7266R1 is no longer available for purchase.

The LFLS7266R1 is no longer available for purchase, and has been replaced by our recently released LS7267. The LS7267 is a redesigned, enhanced version of the LFLS7266R1, and is already available for purchase.

LFLS7266R1 Product Description

Restriction of Hazardous Substances

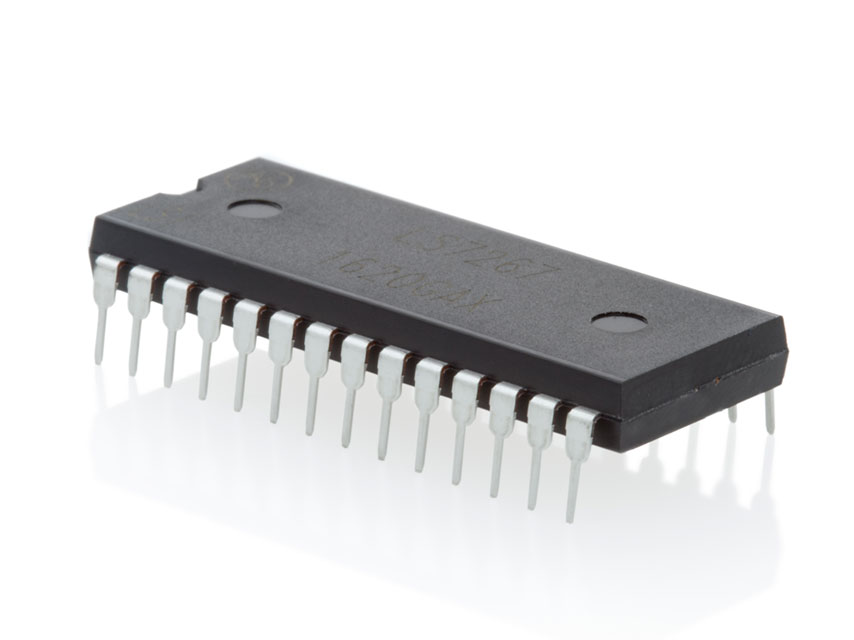

The LSI Computer Systems LFLS7266R1 is a CMOS IC useful in motion control applications. The two 24-bit multimode counters, registers, and logic enable a microprocessor to track the speed, direction, position, and index of one or two optical incremental encoders. In addition to an 8-bit data bus, programmable real-time inputs and outputs are provided for hardware-based control functions and status indication.

View the Manufacturer's Datasheet
