MAE3 Absolute Magnetic Kit Encoder

MAE3 Features

  • Quick, simple assembly, and disassembly
  • -40C to +125C operating temperature
  • ccepts +/- .025 in. axial shaft play
  • Mounts to 0.750 in., 1.280 in. and 1.812 in. bolt circles
  • Fits shaft diameters from .125 in. to .250 in. or 3mm to 6mm
  • 10-bit Analog output - 2.6 kHz sampling rate
  • 10-bit PWM output - 1,024 positions per revolution, 1 kHz
  • 12-bit PWM output - 4,096 positions per revolution, 250 Hz

See more info below

Configure the MAE3

MAE3 Product Description

Restriction of Hazardous Substances

The MAE3 is an absolute magnetic kit encoder that provides shaft position information over 360° of rotation with no stops or gaps. This magnetic encoder is designed to easily mount to, and dismount from, an existing shaft to provide digital feedback information. The MAE3 is available with an analog or a pulse width modulated (PWM) digital output.

Analog output provides an analog voltage that is proportional to the absolute shaft position. Analog output is only available in 10-bit resolution.

PWM output provides a pulse width duty cycle that is proportional to the absolute shaft position. PWM output is available in 10-bit and 12-bit resolutions. While the accuracy is the same for both encoders, the 12-bit version provides a higher resolution.

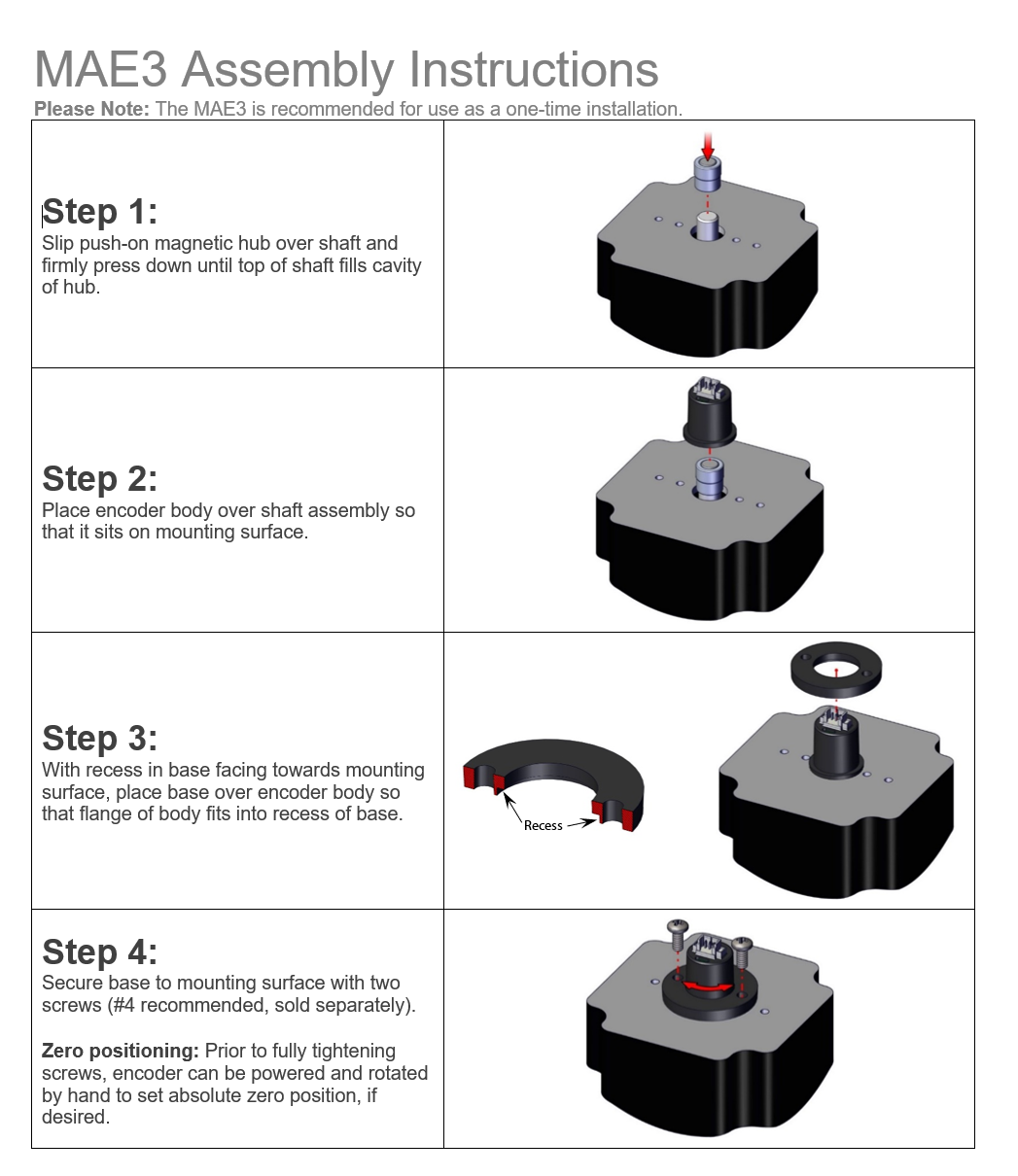

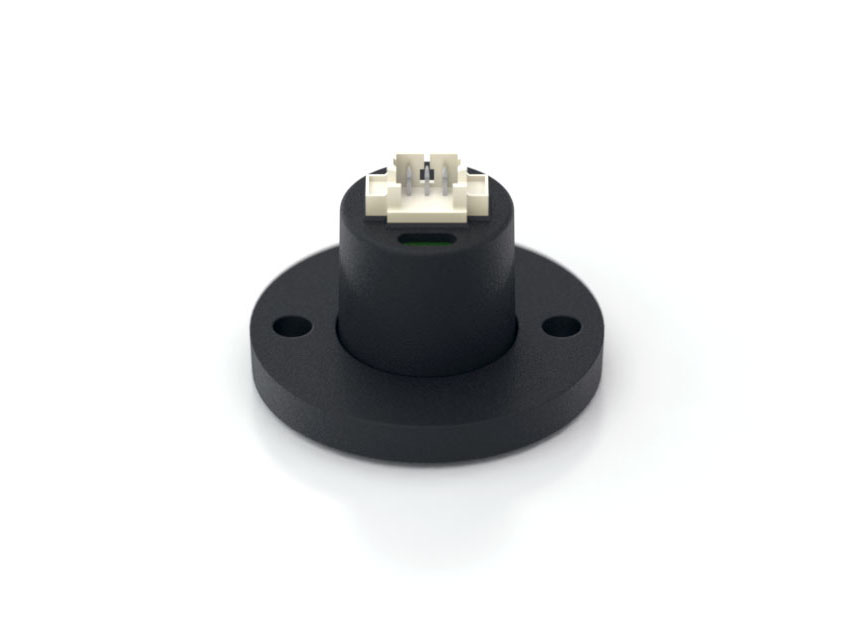

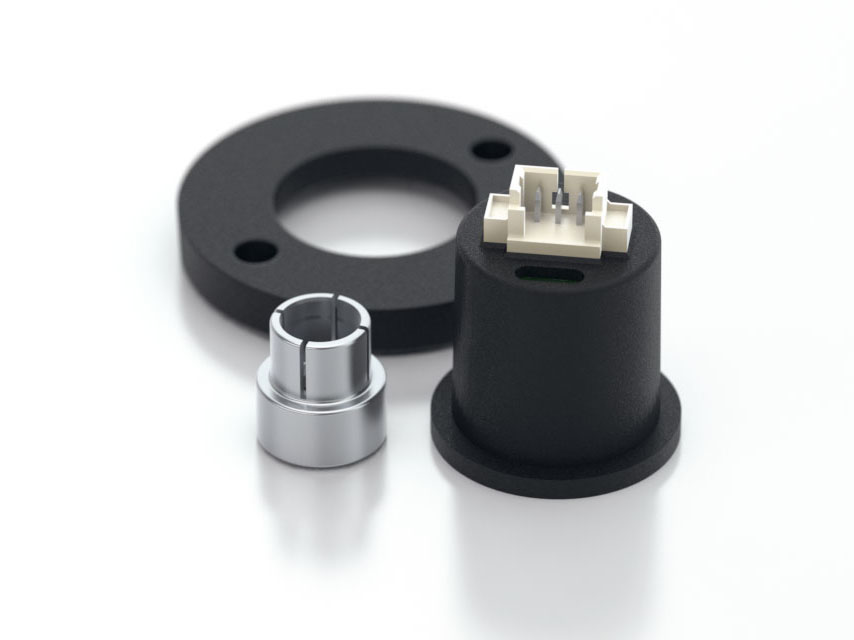

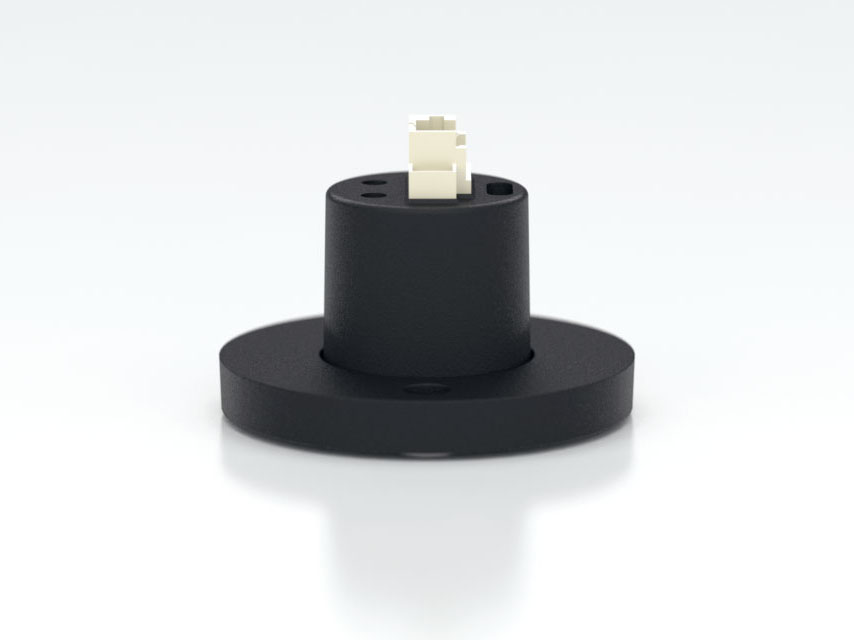

The MAE3 consists of three components: base, push-on magnetic hub, and encoder body. The base will accommodate 0.750 in., 1.280 in., and 1.812 in. mounting bolt circles. No tools are needed for the push-on, collet gripping hub. The hub mounts to a standard shaft in seconds and provides a simple and reliable means of securing the magnet to the shaft.

Two 4-40 pan head screws secure the base and encoder body to any flat surface. If desired, the encoder can be powered up and rotated by hand to any desired absolute position before the screws are tightened.

Connecting to the MAE3 is simple. The 3-pin, high retention, snap-in 1.25mm pitch polarized connector provides for +5V, output, and ground.

Product Specifications

ENVIRONMENTAL

PARAMETER VALUE UNITS
Operating Temperature -40 to +125 C
Vibration (5Hz to 2kHz) 20 G
Electrostatic Discharge, Human Body Model
MIL-STD-883E, Method 3015.7
± 2 kV

MECHANICAL

PARAMETER VALUE UNITS
Max. Shaft Axial Play ±0.025 in.
Max. Shaft Runout (1) 0.004 T.I.R. in.
Max. Acceleration 250000 rad/sec²
Max. Hub Moment of Inertia 9.42 x 10^-7 oz-in-s²
Mounting Screw Size #4-40 x 1/4 in.

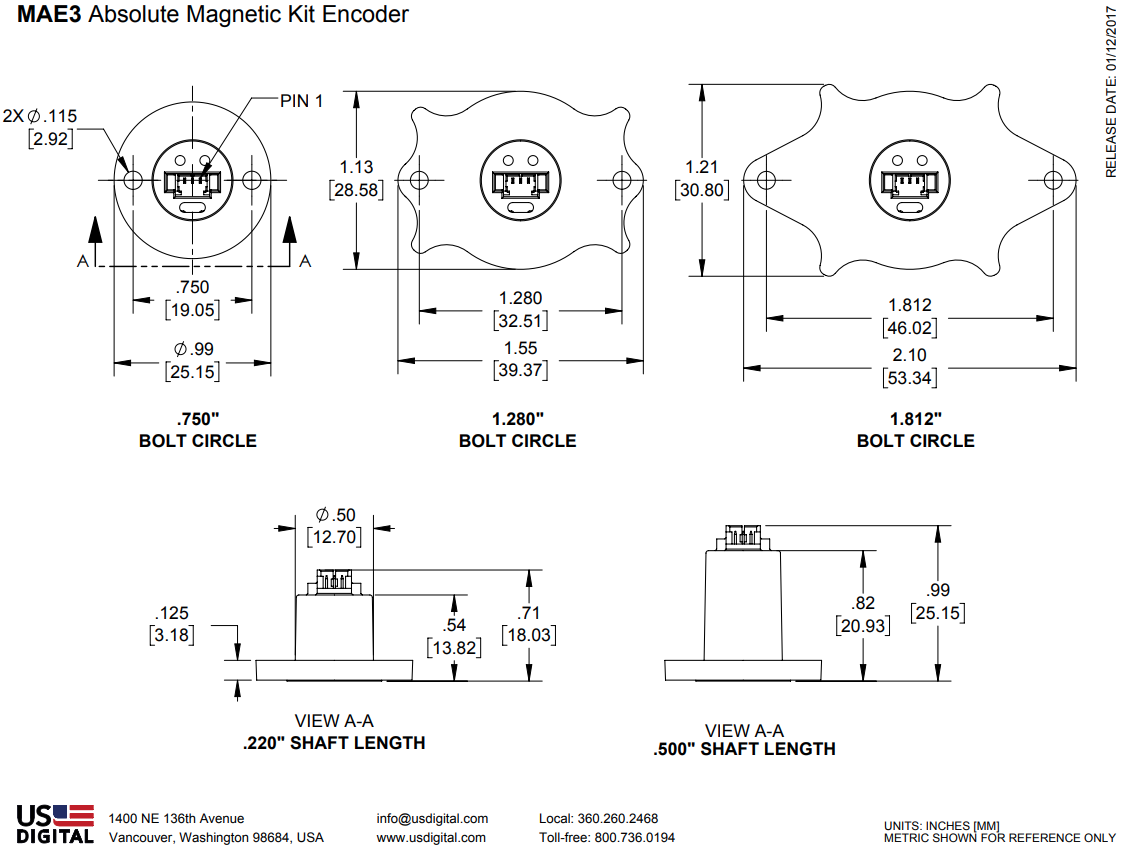

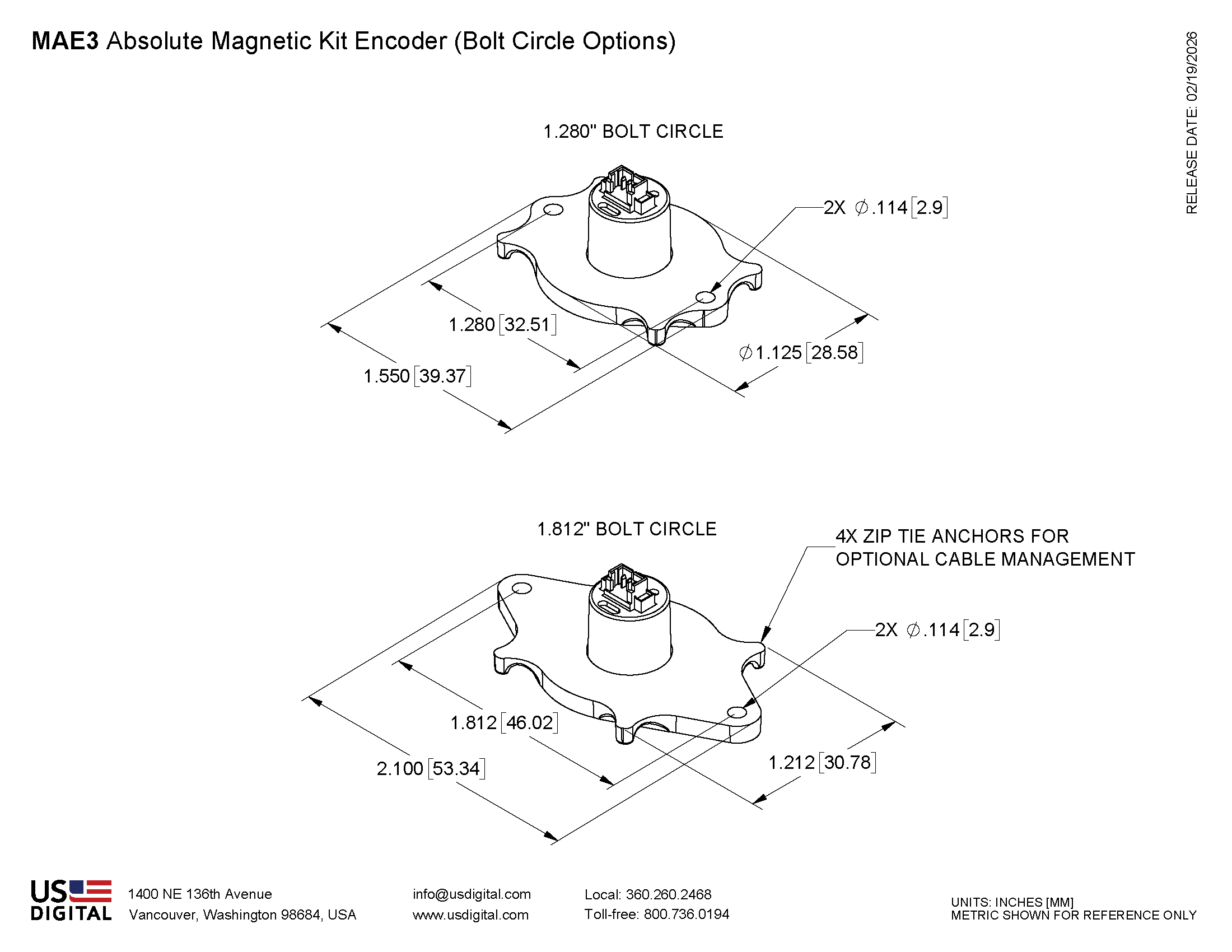

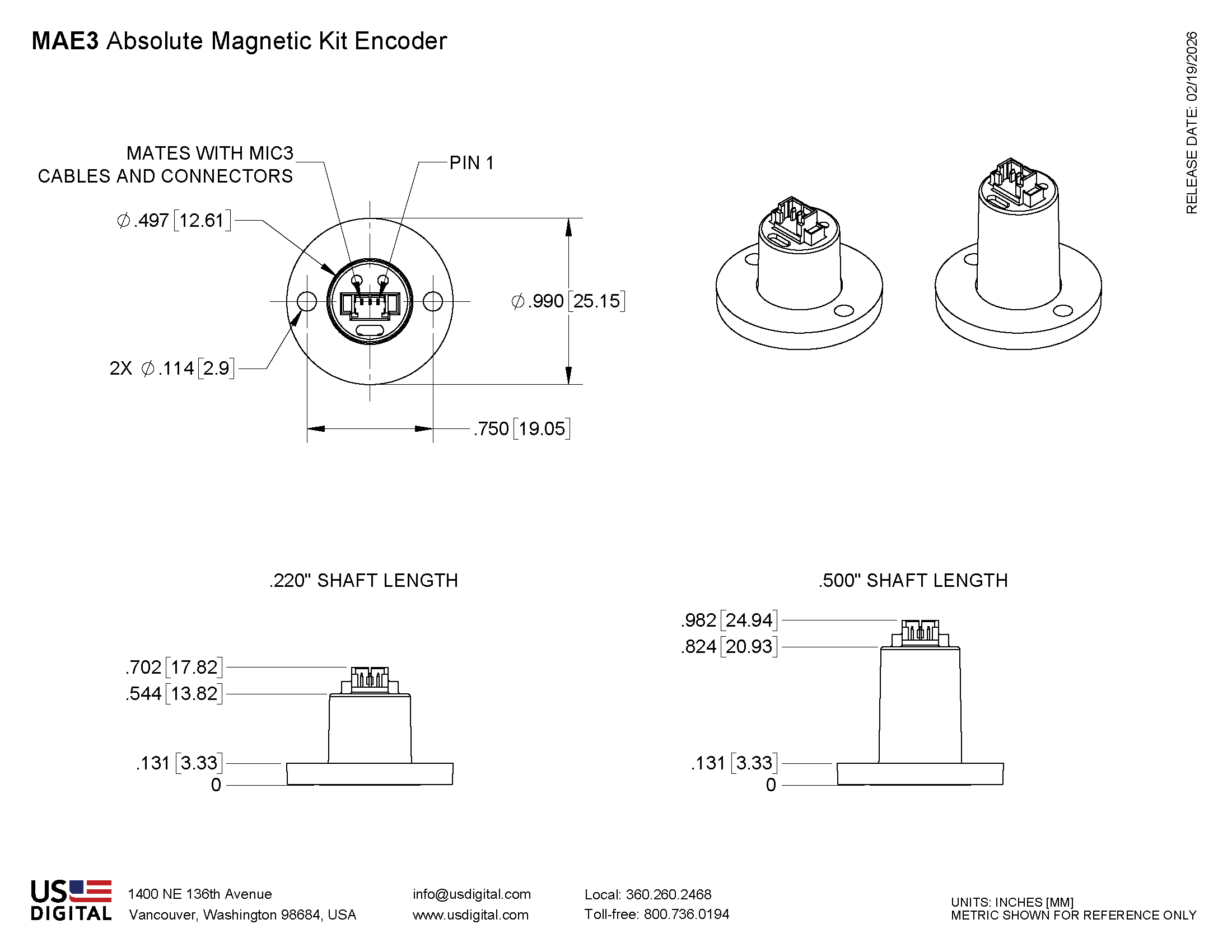

2 Screw Bolt Circle Diameter 0.750 ± 0.005 in.
2 Screw Bolt Circle Diameter 1.280 ± 0.005 in.
2 Screw Bolt Circle Diameter 1.812 ± 0.005 in.
Required Shaft Length, including axial play (1)
  Size 220 Shaft Length-option
  Size 500 Shaft Length-option

0.220 (+0.015 / -0.020)
0.500 (+0.015 / -0.020)

in.
in.
Mounting Screw Torque 4 - 6  in-lbs
Technical Bulletin TB1001 - Shaft and Bore Tolerances Download

(1) For optimum accuracy, the magnetic hub must be fully seated on the shaft and the shaft play must meet the specified axial and radial limits.

(2) The chip that decodes position uses sampled data. There will be fewer readings per revolution as the speed increases. The formula for the number of readings per revolution is given by:

10-bit PWM:

n = 625200 / rpm

12-bit PWM / Analog:

n = 156600 / rpm

ELECTRICAL

PARAMETER MIN. TYP. MAX. UNITS
Power Supply 4.5 5.0 5.5 Volts
Supply Current - 16 20 mA
Power-up Time - - 50 mS

ANALOG OUTPUT OPERATION

Analog output is only available in 10-bit resolution. The analog output voltage is ratiometric to the power supply voltage and will typically swing within 15 millivolts of the power supply rails with no output load. This non-linearity near the rails increases with increasing output loads. For this reason, the output load impedance should be ≥4.7kΩ and less than 100pF. The graphs below show the typical output levels for various output loads when powered by a 5V supply.


PARAMETER MIN. TYP. MAX. UNITS
Position Sampling Rate 2.35 2.61 2.87 kHz
Propagation Delay - - 384 μS
Analog Output Voltage Maximum (1) - 4.987 - Volts
Analog Output Voltage Minimum (1) - 0.015 - Volts
Output Short Circuit Sink Current (2) - 32 50 mA
Output Short Circuit Source Current (2) - 36 66 mA
Output Noise (2) 160 220 490 µVrms
Output Transition Noise (3) - 0.03 - Deg. RMS

(1) With no output load. See graphs below.
(2) Continuous short to +5V or ground will not damage the MAE3.
(3) Transition noise is the jitter in the transition between two adjacent position steps.



PWM OUTPUT OPERATION

The magnetic sensor chip in the MAE3 has an on-chip RC oscillator which is factory trimmed to 5% accuracy at room temperature (10% over full temperature range). This tolerance influences the sampling rate and the pulse period of the PWM output. If only the PWM pulse width ton and nominal pulse period are used to measure the angle, the resulting value also has this timing tolerance. However, this tolerance can be canceled by measuring both ton and toff and calculating the angle from the duty cycle.

PARAMETER MIN. TYP. MAX. UNITS
PWM Frequency (-40C to 125C)
  10-bit
  12-bit

0.877
220

0.975
244

1.072
268

kHz
Hz
Minimum Pulse Width
  10-bit
  12-bit

0.95
0.95

1.00
1.00

1.05
1.05

uS
uS
Maximum Pulse Width
  10-bit
  12-bit

974
3892

1025
4097

1076
4302

uS
uS
Internal Sampling Rate
  10-bit
  12-bit

9.38
2.35

10.42
2.61

11.46
2.87

kHz
kHz
Propagation Delay
  10-bit
  12-bit

-
-

-
-

48
384

uS
uS
Output Transition Noise, 12-bit version (1)   .03   Deg. RMS
Output Transition Noise, 10-bit version (1)   .12   Deg. RMS
Output High Voltage (VOH: @4mA Source) (2) Vcc -0.5 - - V
Output Low Voltage (VOL: @4mA Sink) (2) - - 0.4 V

(1) Transition noise is the jitter in the transition between two adjacent position steps.
(2) Continuous short to +5V or ground will not damage the MAE3.


10-bit PWM:

x = ((t on * 1026) / (t on+ t off)) -1

If x <= 1022, then Position = x

If x = 1024 then Position = 1023

12-bit PWM:

x = ((t on * 4098) / (t on+ t off)) -1

If x <= 4094, then Position = x

If x = 4096 then Position = 4095

PIN-OUTS

ANALOG OUTPUT (MAE3-A):

PIN NAME DESCRIPTION
1 5 +5VDC power
2 A Analog output
3 G Ground

PWM OUTPUT (MAE3-P10, MAE3-P12):

PIN NAME DESCRIPTION
1 5 +5VDC power
2 A PWM output
3 G Ground

ACCESSORIES

SCREWS

Part #: SCREW-440-250-PH
Description: 4-40 x 1/4" Pan head screw
Quantity Required for Mounting 2 per encoder

PRODUCT CHANGE NOTIFICATIONS

Title Date Description Download
Hub End of Life - PCN 5549 12/15/2015 This PCN is a formal notification that US Digital is discontinuing the following bore sizes for the MAE3 product line: .079 (2mm), .091 (2.3mm), .098 (2.5mm), .156 (5/32"). Download

Additional Information
