PE LINEAR PROBE ENCODER

PE Features

  • Standard 3/8 in. diameter mounting stem
  • Compact design
  • Linear ranges from 1 in. to 2 in.
  • 120 CPI to 2,000 CPI
  • 0.0005 in. to 0.0021 in. resolution
  • latching connector
  • A and B quadrature digital output
  • Optional 3rd channel (index)
  • TTL compatible outputs
  • Interfaces with all US Digital® support products

See more info below

Configure the PE

The PE is no longer available for purchase.

PE Product Description

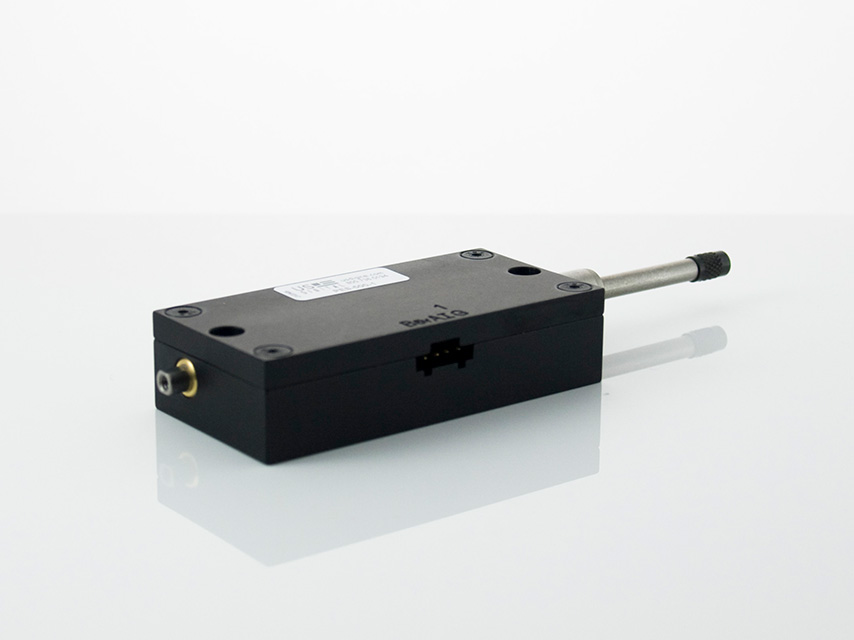

The PE series linear plunger-style optical encoder has a machined aluminum enclosure. The PE provides either single-ended or differential quadrature encoder output in a convenient mechanical package. Various CPI (counts per inch) ranging from 120 CPI to 2000 CPI are available. Using x4 quadrature counting, the available resolutions range from 0.00013 in. to 0.0021 in. Note that 127 CPI gives a resolution of 50 micrometers.

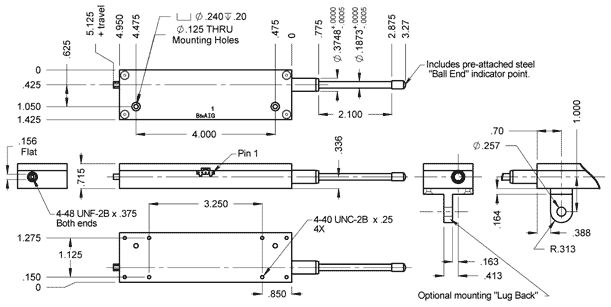

The PE features smooth linear bearings for repeatable measurements and an internal spring to return the plunger to its fully extended position. Standard linear measurement ranges are from 1 to 2 inches. The precision plunger has #4-48 threads on both ends to accept industry-standard contact points. The PE may be mounted four different ways: the #4-40 clearance body through holes, the #4-40 tapped blind holes, the standard 3/8 in. diameter mounting stem, or the lug back option.

The single-ended output interface is normally designed for applications of 10 feet or less. For longer cable lengths, the differential output interface is recommended.

The internal encoder module incorporates a lensed LED light source and a monolithic photodetector array. The monolithic photodetector has signal shaping electronics that produce a two-channel quadrature with optional index bounceless TTL output. When Index is specified, the default location is in the middle of the linear probe's range of travel with a location tolerance of ±0.050 in.

For differential versions: the internal differential line driver (26C31) can source and sink 20mA at TTL levels. The recommended receiver is industry standard 26C32. Maximum noise immunity is achieved when the differential receiver is terminated with a 150 Ω resistor in series with a .0047 μF capacitor placed across each differential pair. The capacitor simply conserves power; otherwise, power consumption would increase by approximately 20 mA per pair or 40 mA for 2 pairs.

A secure connection to the PE encoder is made through a 5-pin (single-ended versions) or 10-pin (differential versions) polarized connector (sold separately). The mating connectors are available from US Digital with several cable options and lengths.

Product Specifications

ENVIRONMENTAL

The PE performs best over a 0 C to 50 C temperature range due to a fairly linear temperature coefficient. They will however, operate at temperatures above 50C, but the thermal temperature coefficient becomes non linear at elevated temperatures. The negative temperature coefficient indicates the actual measured distance will decrease slightly with temperature increase.

PARAMETER SPECIFICATION
Recommended Operating Temperature 0 C to 50 C
1" Product Temperature Coefficient -0.000036 in/C
2" Product Temperature Coefficient -0.000075 in/C
Operating Temperature, CPI < 1000 -40 to 100 C
Operating Temperature, CPI ≥ 1000 -25 to 100 C
Vibration (5 Hz to 2000 Hz) 20 G
Electrostatic Discharge ± 4 kV Human Body Model

MECHANICAL

PARAMETER DIMENSION UNITS
Plunger Force (1" version) 3 to 6 typical oz.
Plunger Force (2" version) 3 to 9 typical oz.
Travel (1" version) 1.050 min. in.
Travel (2" version) 2.050 min. in.
Side Load 1 lb.
  • When Index is specified, the default location is in the middle of the linear probe's range of travel with a location tolerance of ±0.050".

PHASE RELATIONSHIP

A leads B for inward plunger motion, and B leads A for outward plunger motion (see the EM1 or EM2 pages).

TRACKING SPEED

The maximum tracking speed of the encoder can be calculated as follows:

Maximum tracking speed ( in. / sec.) = 300000/CPI. Where CPI is the counts-per-inch of the encoder.

The tracking speed for several common CPI's are shown in the table below.

PARAMETER MAX. UNITS
Tracking Speed, 125 CPI 800 in/sec
Tracking Speed, 127 CPI 787 in/sec
Tracking Speed, 250 CPI 400 in/sec
Tracking Speed, 500 CPI 200 in/sec
Tracking Speed, 1000 CPI 360 in/sec
Tracking Speed, 2000 CPI 360 in/sec

RESOLUTIONS

The position resolution in inches using x4 quadrature counting (count every transition of the A and B outputs) can be calculated as follows:

Resolution = 1/(4*CPI) where CPI is the counts-per-inch of the encoder. Several common values are shown in the table below.

CPI RESOLUTION
125 0.002 in.
127 50.0 μm
250 0.0010 in.
500 0.0005 in.
1000 0.00025 in.
2000 0.000125 in.

Other resolutions may be available upon request.

SINGLE-ENDED ELECTRICAL

  • Specifications apply over entire operating temperature range.
  • Typical values are specified at Vcc = 5.0Vdc and 25°C.
  • For complete details, see the EM1 or EM2 product pages.
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 4.5  5.0 5.5 V
Supply Current   27 33 mA CPI < 300, no load
  55 62 mA CPI ≥ 300, no load
Low-level Output     0.5 V IOL = 8mA max.
High-level Output 2.0     V IOH = -8mA max.
4.2 4.8   V no load
Output Current Per Channel -8   8 mA
Output Rise Time   110   nS
Output Fall Time   35   nS

DIFFERENTIAL ELECTRICAL

  • Specifications apply over entire operating temperature range.
  • Typical values are specified at Vcc = 5.0Vdc and 25°C.
  • For complete details, see the EM1 product page.
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 4.5 5.0 5.5 V
Supply Current   29 36 mA CPI < 300, no load
  57 65 mA CPI ≥ 300, no load
Low-level Output   0.2 0.4 V IOL = 20mA max.
High-level Output 2.4 3.4   V IOH = -20mA max.
Differential Output Rise/Fall Time     15  nS

PIN-OUT

5-PIN SINGLE-ENDED:

PIN DESCRIPTION
1 Ground
2 Index
3 A channel
4 +5VDC power
5 B channel

10-PIN DIFFERENTIAL:

PIN DESCRIPTION
1 Ground
2 Ground
3 Index-
4 Index+
5 A- channel
6 A+ channel
7 +5VDC power
8 +5VDC power
9 B- channel
10 B+ channel

ACCESSORIES

1. For tapped blind hole mounting:

Part #: SCREW-440-250-PH
Description: #4-40 x 1/4"
Quantity Required for Mounting: 4 per encoder

Part #: SCREW-440-375-PH
Description: #4-40 x 3/8"
Quantity Required for Mounting: 4 per encoder

Part #: SCREW-440-500-PH
Description: #4-40 x 1/2"
Quantity Required for Mounting: 4 per encoder

Part #: SCREW-440-625-PH
Description: #4-40 x 5/8"
Quantity Required for Mounting: 4 per encoder

2. For body through hole mounting:

Part #: SCREW-440-1000-PH
Description: #4-40 x 1"
Quantity Required for Mounting: 2 per encoder

PRODUCT CHANGE NOTIFICATIONS

Title Date Description Download
EOL - PE (Linear Probe Encoder) - PCN 5254 4/28/2015 This PCN is a formal notification that US Digital is discontinuing the PE. Download
PCN 4464 - CE - RoHS 6/30/2014

US Digital is aware of the increasing attention to world-wide environmental regulations, specifically with regard to the need for hazardous substance restrictions in electronic components and systems. As of July 10th, 2014 US Digital will now be CE Marking certain products inline with compliance under RoHS Directive (2011/65/EU). In order to achieve RoHS Compliance, the products will not contain more than the acceptable levels of the listed restricted substances within the RoHS 2011/65/EU directive.

Part Numbers Affected:

  • ED3
  • USB4
  • QSB
  • SEI-USB
  • MD2S
  • PS-5, PS-12, PS-24, PS-48 (Power Supplies)
  • PE

For the part numbers listed above, US Digital cannot confirm that they meet Low-Voltage and EMC Directives and for that reason US Digital cannot support shipping those products / product families into the CE required countries (For Example countries in the EU). Those products can still be shipped to Non-CE required countries with a Statement of Material Conformance to the RoHS Directive 2011/65/EU, in place of a RoHS Compliance Declaration.

 Download
EM1 & EM2 Update - PCN 4199 1/14/2014 Based on our continuous process improvement program, US Digital is changing the current marking method for our EM1 and EM2 encoder modules to a serialization method. This change will allow for each module to have a unique code; the current marking method is based on a date code system that includes all encoder modules produced within a specific week / year. The serialization system will be based on a hexadecimal system. Download
EM1 LED Die - PCN 1016 2/7/2013 As part of US Digital's continual assurance of supply strategy, we have qualified additional sources for our LED die used in our EM1 encoder module, which in turn impacts all of the following products:

EM1, E2, E3, E5, E6, H1, H15, H3, H5, H6, HB5M, HB6M, HD25, PE, S1, S2, S5, S6, T5 and T6

The device specification will remain the same, i.e. there will be no change to form, fit or function of the product(s) as specified by US Digital. The appropriate quality and reliability testing has been performed on representative products to ensure normal parametric distribution, consistent with US Digital's quality and reliability standards.		 Download

Additional Information

Product Notes

  • Cables and connectors are not included and must be ordered separately.
  • For ordering information please see the Compatible Cables / Connectors section above.
  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.
