H5 Ball Bearing Optical Shaft Encoder

H5 Features

  • Ball-bearing option tracks to 10,000 RPM
  • 2-channel quadrature with optional index
  • Multiple Output Drive Options
  • 32 to 5,000 cycles per revolution (CPR)
  • 128 to 20,000 pulses per revolution (PPR)
  • Wide operating temperature

See more info below

Configure the H5

H5 Product Description

Restriction of Hazardous Substances

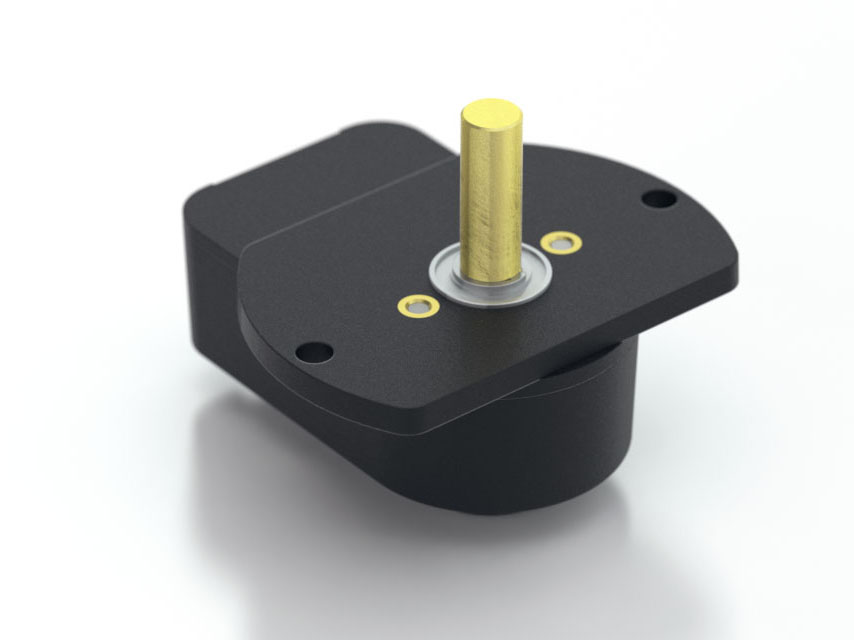

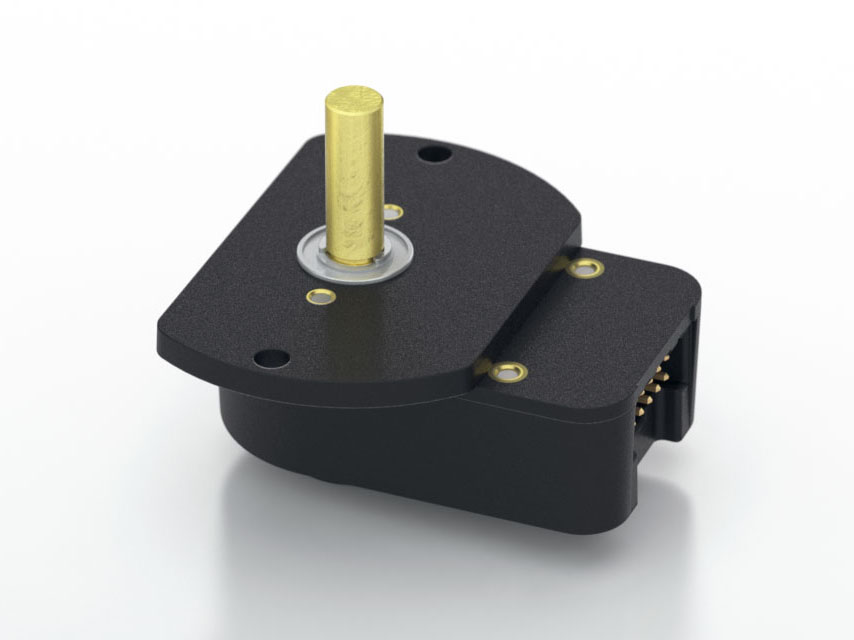

The H5 series ball-bearing optical shaft encoder has a molded polycarbonate housing and utilizes either a 5-pin or 10-pin latching connector. This non-contacting rotary to digital converter is designed to provide digital feedback information.

The H5 is fully assembled with a brass shaft, two 1/4 in. ID by 1/2 in. OD heavy-duty ball bearings and a mounting plate. The mounting plate comes with 2 mounting holes for #4 size screws.

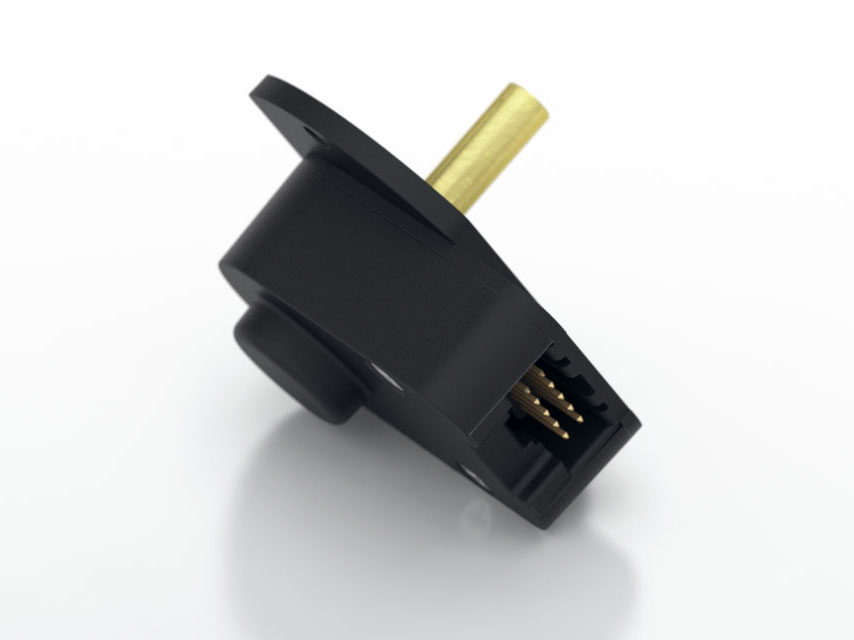

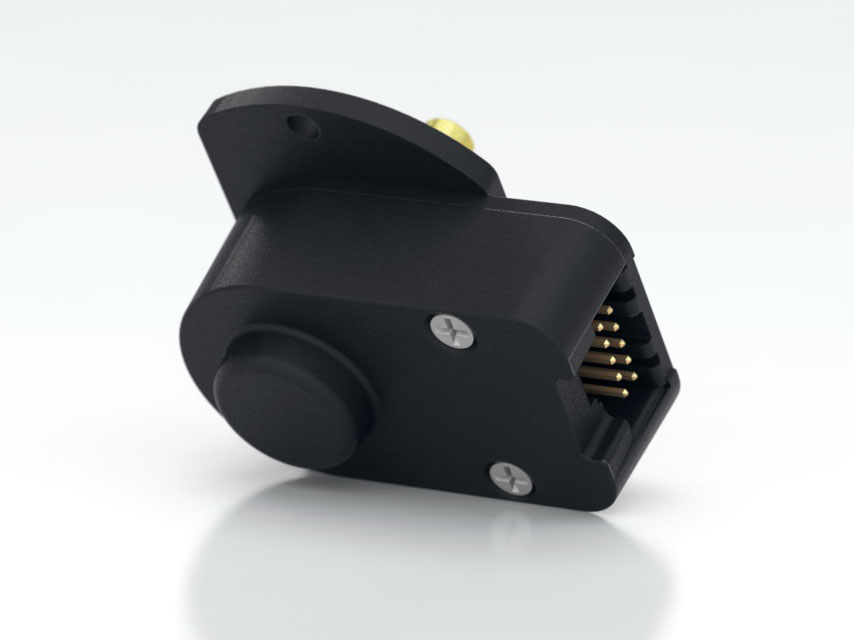

A secure connection to the H5 Series encoder is made through a 5-pin (single-ended versions) or 10-pin (differential or high-voltage versions) latching connector. The mating connectors are available from US Digital with several cable options and lengths.

The internal differential line driver (26C31) can source and sink 20mA at TTL levels for differential versions. The recommended receiver is the industry-standard 26C32. Maximum noise immunity is achieved when the differential receiver is terminated with a 150 Ω resistor in series with a .0047 μF capacitor placed across each differential pair. The capacitor conserves power; otherwise, power consumption would increase by approximately 20mA per pair or 60mA for 3 pairs.

Product Specifications

ENVIRONMENTAL

Parameter Value Units
Operating Temperature, CPR < 2000 -40 to 100 C
Operating Temperature, CPR ≥ 2000 -25 to 100 C
Electrostatic Discharge
Single-ended (S option), IEC 61000-4-2
Differential (D, L option), Human Body Model
High-Voltage, Open-collector (H, C option), IEC 61000-4-2
± 4
± 2
± 4		 kV
Vibration (10Hz to 2kHz, sinusoidal) 20 G
Shock (6 milliseconds, half-sine) 75 G

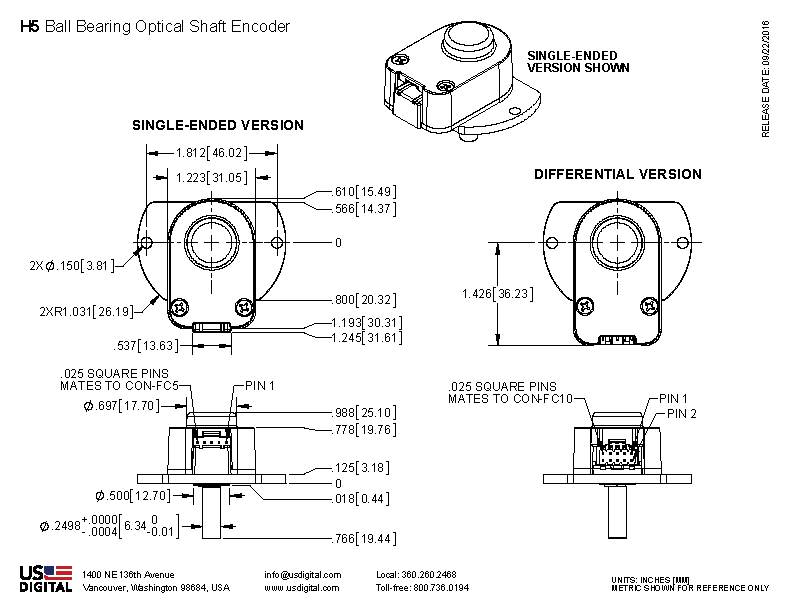

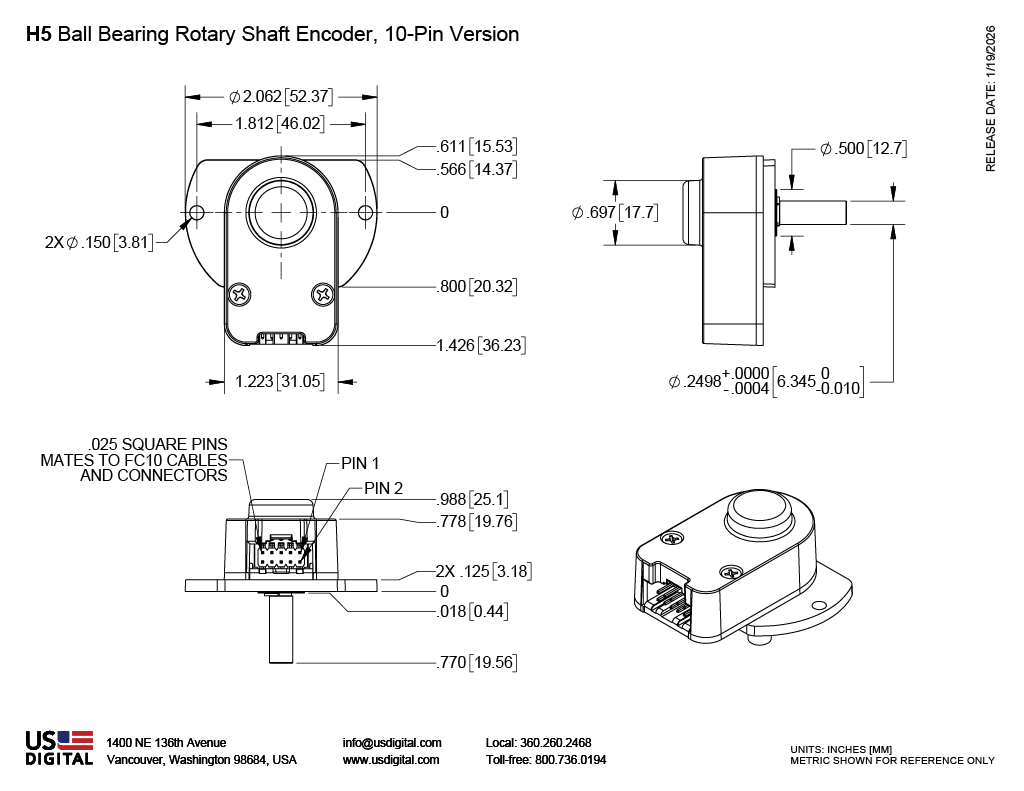

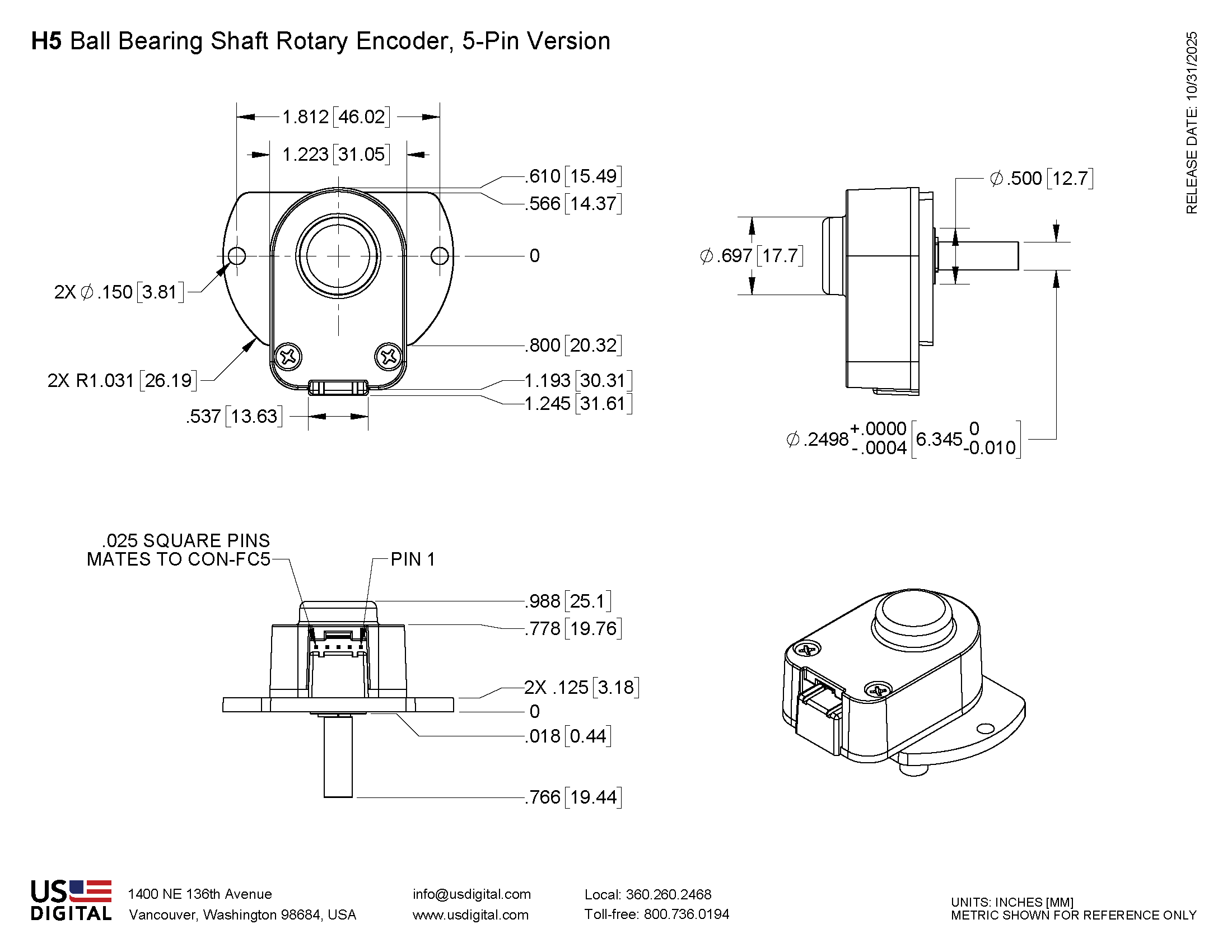

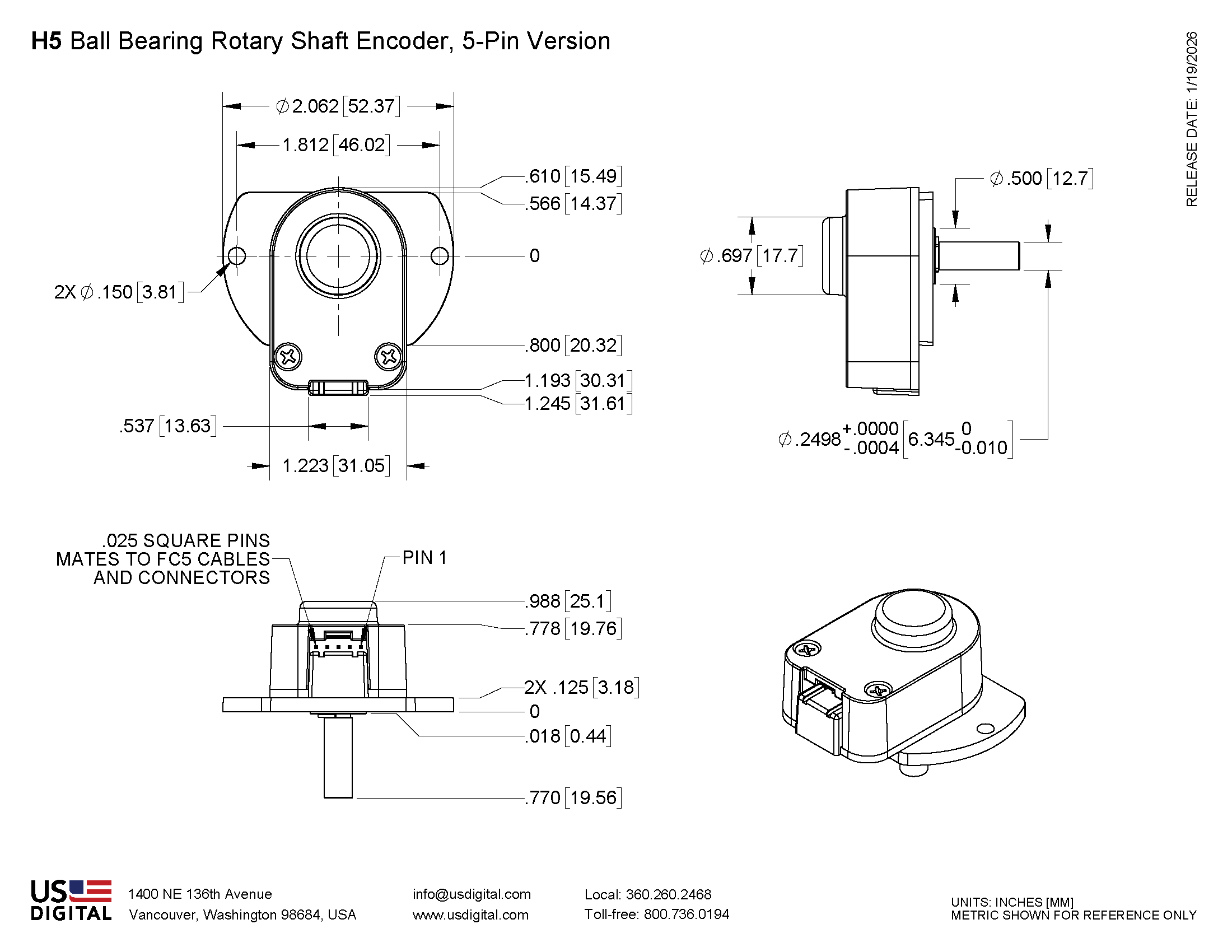

MECHANICAL

PARAMETER VALUE
Max. Acceleration 100000 rad/sec²
Max. Shaft Speed (mechanical) 10000 rpm (1)
Max. Shaft Torque 0.05 in-oz
Max. Shaft Loading 2 lbs.
Bearing Life life in millions of revs. = (90/P)³
where P = radial load in pounds.
Weight
  Single-ended (S option)
  Differential (D option)
  High-Voltage, Open-Collector (H, C option)
1.79 oz.
1.89 oz.
1.89 oz.
Max. Shaft Runout 0.006 in. T.I.R.
Mounting Plate Screw Torque (#4-40) 4-6
Moment of Inertia 0.001 oz-in-s²
Technical Bulletin TB1001 - Shaft and Bore Tolerances Download

(1) The maximum speed due to electrical considerations is dependent on the CPR. See the EM1 and EM2 product pages.

PHASE RELATIONSHIP

B leads A for clockwise shaft rotation, and A leads B for counterclockwise rotation when viewed from the shaft side of the encoder.

SINGLE-ENDED OPTION

  • S option provides 5V TTL compatible outputs
  • Specifications apply over the entire operating temperature range
  • Typical values are specified at Vcc = 5.0Vdc and 25°C
  • For complete details, see the EM1 or EM2 product pages
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 4.5  5.0 5.5 V
Supply Current   27 33 mA CPR < 500, no load
  54 62 mA CPR ≥ 500 and < 2000, no load
  72 85 mA CPR ≥ 2000, no load
Low-level Output     0.5 V IOL = 8mA max., CPR < 2000
    0.5 V IOL = 5mA max., CPR ≥ 2000
  0.25   V no load, CPR ≥ 2000
High-level Output 2.0     V IOH = -8mA max. and CPR < 2000
2.0     V IOH = -5mA max. and CPR ≥ 2000
  4.8   V no load and CPR < 2000
  3.5   V no load and CPR ≥ 2000
Output Current Per Channel -8   8 mA CPR < 2000
-5   5 mA CPR ≥ 2000
Output Rise Time   110   nS CPR < 2000
  50   nS CPR ≥ 2000, ± 5mA load
Output Fall Time   100   nS CPR < 2000
  50   nS CPR ≥ 2000, ± 5mA load

DIFFERENTIAL OPTION

  • D Option provides differential line driver outputs
  • Specifications apply over the entire operating temperature range
  • Typical values are specified at Vcc = 5.0Vdc and 25°C
  • For complete details, see the EM1 and EM2 product pages
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 4.5 5.0 5.5 V
Supply Current   29 36 mA CPR < 500, no load
  56 65 mA CPR ≥ 500 and < 2000, no load
  74 88 mA CPR ≥ 2000, no load
Low-level Output   0.2 0.4 V IOL = 20mA max.
High-level Output 2.4 3.4   V IOH = -20mA max.
Differential Output Rise/Fall Time     15  nS

HIGH-VOLTAGE OPTION

  • H option uses a higher supply voltage and provides both single-ended and open-collector outputs
  • Single-ended outputs are 5V TTL compatible (same as S option). See Pin-out.
  • Specifications apply over the entire operating temperature range
  • For complete details, see the EM1 or EM2 product pages
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 7.5   30.0 V
Supply Current, 24V power   8 10 mA CPR < 500, no load
  16 19 mA CPR ≥ 500 and < 2000, no load
  22 25 mA CPR ≥ 2000, no load
Open Collector "On" Resistance   2   ohms
Open Collector Sink Current     200 mA
Output Low Voltage     0.4 V 200 mA sink current
Open Collector Pullup Voltage     50 V

PIN-OUT

5-PIN SINGLE-ENDED
S OPTION		 10-PIN DIFFERENTIAL
D OPTION
Pin Description Pin Description
1 Ground 1 Ground
2 Index 2 Ground
3 A channel 3 Index-
4 +5VDC power 4 Index+
5 B channel 5 A- channel
    6 A+ channel
    7 +5VDC power
    8 +5VDC power
    9 B- channel
    10 B+ channel



10-PIN HIGH-VOLTAGE
H OPTION (2)
Pin Description
1 Ground
2 Ground
3 Index- (open collector)
4 Index+ (single-ended)
5 A- channel (open collector)
6 A+ channel (single-ended)
7 7.5-30V power
8 7.5-30V power
9 B- channel (open collector)
10 B+ channel (single-ended)



(1) 5-pin single-ended mating connector is CON-FC5.
(2) 10-pin differential mating connector is CON-FC10.

PRODUCT CHANGE NOTIFICATIONS

Title Date Description Download
EM1 & EM2 Update - PCN 4199 1/14/2014 Based on our continuous process improvement program, US Digital is changing the current marking method for our EM1 and EM2 encoder modules to a serialization method. This change will allow for each module to have a unique code; the current marking method is based on a date code system that includes all encoder modules produced within a specific week / year. The serialization system will be based on a hexadecimal system. Download
EM1 LED Die - PCN 1016 2/7/2013 As part of US Digital’s continual assurance of supply strategy, we have qualified additional sources for our LED die used in our EM1 encoder module, which in turn impacts all of the following products:

EM1, E2, E3, E5, E6, H1, H15, H3, H5, H6, HB5M, HB6M, HD25, PE, S1, S2, S5, S6, T5 and T6

The device specification will remain the same, i.e. there will be no change to form, fit or function of the product(s) as specified by US Digital. The appropriate quality and reliability testing has been performed on representative products to ensure normal parametric distribution, consistent with US Digital's quality and reliability standards.		 Download
